ABB XI16E1 (Order Code: 1SBP260100R1001) Digital Input Module

1. Key Parameters

• Product Model: XI16E1
• Order Code/Part Number: 1SBP260100R1001 (unique identifier for procurement and platform compatibility verification)
• Product Series: ABB AC 800M/Symphony Plus High-Density Digital Input Modules
• Core Function: Acquires discrete digital signals from field devices (e.g., sensors, switches); converts analog electrical signals to digital data; transmits data to AC 800M/Symphony Plus controllers; provides signal isolation for integrity
• Digital Input Specifications:
  • Number of Channels: 16 (independent, configurable per channel)
  • Input Type: 24V DC (sinking or sourcing; software-selectable for flexibility with field devices)
  • Input Voltage Range:
    • Logic "1" (Active): 18V~30V DC
    • Logic "0" (Inactive): ≤5V DC
  • Input Current: 4mA~8mA (at 24V DC; low power to minimize field wiring losses)
  • Response Time: ≤0.5ms (for ultra-fast detection of critical signals, e.g., emergency stops, fault alarms)
  • Debounce Time: Configurable (0.1ms~200ms; via Control Builder M; eliminates false triggers from mechanical switch bounce)
  • Input Resistance: 3kΩ~5kΩ (prevents excessive current draw from field power supplies)
• Isolation & Noise Immunity:
  • Channel-to-Channel Isolation: 2.5kVrms (prevents cross-talk between adjacent channels)
  • I/O-to-Backplane Isolation: 2.5kVrms (protects the controller from field-side voltage transients, e.g., motor startup surges)
  • Common Mode Rejection (CMR): ≥70dB (at 50Hz/60Hz; minimizes interference from industrial power cables)
  • Differential Mode Rejection (DMR): ≥60dB (at 50Hz/60Hz; reduces noise from long field wiring)
• Communication Interface:
  • Backplane Interface: ABB proprietary PRONETA bus (100Mbps full-duplex; high-speed data transfer to/from the controller; no latency for real-time monitoring)
• Electrical Specifications:
  • Power Supply (Backplane): 5V DC (from AC 800M/Symphony Plus rack power supply; typical current: 0.5A; maximum current: 0.8A)
  • Field Power Supply: 24V DC (external, isolated; separate from backplane power to avoid loading the controller rack)
  • Power Consumption: ≤3W (backplane power); ≤1.2W (field power, at full channel load)
  • Surge Protection: IEC 61000-4-5 (±2kV contact discharge; ±4kV air discharge for field input terminals)
  • EMC Compliance: IEC 61000-6-2 (industrial environment immunity); IEC 61000-6-4 (industrial environment emissions)
• Mechanical Specifications:
  • Housing Type: Flame-retardant plastic (UL94 V-0; with integrated metal EMI shielding)
  • Dimensions (W×H×D): 25mm × 100mm × 160mm (1-module width; compact design for space-constrained racks)
  • Mounting: Rack-mounted (tool-less snap-in installation; aligns with backplane connectors for power/data)
  • Weight: Approximately 180g
  • LED Indicators:
    • Power (PWR): Green (module powered on); Red (power fault or under/overvoltage)
    • Backplane Communication (BUS): Green (normal communication with controller); Red (communication fault)
    • Digital Inputs (DI1~DI16): Green (channel active, logic "1"); Off (channel inactive, logic "0")
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6; no signal loss or mechanical damage)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27; maintains terminal connections and isolation)
• Compliance Standards: IEC 61131-2 (industrial I/O modules), UL 508 (industrial control safety), CE, RoHS

2. Key Features

• High-Density 16-Channel Design: 16 independent input channels in a 1-module width maximizes rack space efficiency—critical for large-scale systems (e.g., power plant control rooms) with hundreds of field sensors, eliminating the need for extra rack units.
• Ultra-Fast Response Time (≤0.5ms): Detects critical signals (e.g., emergency stop buttons, high-pressure alarms) in under a millisecond, enabling the controller to trigger rapid safety actions (e.g., process shutdowns) and avoid equipment damage or safety hazards.
• Software-Configurable Input Type: Sinking/sourcing selectable per channel via Control Builder M, eliminating the need for separate modules for different field device types (e.g., NPN vs. PNP sensors)—reducing inventory costs and simplifying system design.
• Adjustable Debounce Time: Configurable 0.1ms~200ms debounce prevents false signals from mechanical switches (e.g., limit switches, pushbuttons) without external hardware (e.g., capacitors), ensuring reliable data acquisition in noisy industrial environments.
• 2.5kVrms Isolation: Industrial-grade isolation protects the controller from ground loops and high-voltage transients (e.g., from nearby motor drives or lightning-induced surges), a common issue in power generation and oil & gas facilities.
• Seamless Platform Integration: Plug-and-play compatibility with AC 800M and Symphony Plus; automatically recognized by Control Builder M, with pre-built configuration tools for channel mapping and signal settings—no custom drivers or programming required.
• Per-Channel LED Diagnostics: Individual green LEDs for each input channel provide instant visual confirmation of signal status, enabling technicians to quickly troubleshoot wiring faults or faulty field devices (e.g., a failed sensor with no active LED) without specialized test equipment.

3. Application Fields

• Power Generation: Critical for signal acquisition in:
  • Fossil Fuel Plants: Monitoring turbine trip valve status (DI), generator breaker positions (DI), boiler pressure switch alarms (DI), and pump run feedback (DI); enabling real-time controller response to equipment faults.
  • Nuclear Power Plants: Acquiring safety-related signals (e.g., radiation detector alarms, coolant flow switch status) in redundant configurations, ensuring compliance with strict safety standards (e.g., IEC 61513).
  • Renewable Energy (Wind/Solar): Detecting wind turbine brake engagement (DI), solar inverter fault signals (DI), and battery bank status (DI); supporting grid stability by relaying equipment health to the controller.
• Oil & Gas Industry: Reliable signal capture in:
  • Refineries: Monitoring distillation column temperature switch alarms (DI), valve position feedback (DI), and pump overload status (DI); enabling the controller to adjust processes or trigger shutdowns for abnormal conditions.
  • Offshore Drilling Rigs: Acquiring wellhead pressure switch signals (DI), blowout preventer (BOP) status (DI), and platform emergency stop triggers (DI); withstanding vibration and saltwater corrosion in harsh marine environments.
• Heavy Manufacturing: Equipment status monitoring in:
  • Steel Mills: Detecting furnace door limit switch positions (DI), conveyor belt alignment sensor signals (DI), and rolling mill overload alarms (DI); supporting continuous production by alerting operators to mechanical issues.
  • Automotive Assembly Lines: Monitoring robotic arm home position signals (DI), part presence sensor feedback (DI), and safety gate interlock status (DI); ensuring safe, synchronized operation of assembly equipment.
• Water & Wastewater Treatment: Process state monitoring in:
  • Treatment Plants: Acquiring filter backwash completion signals (DI), chemical tank level switch status (DI), and pump run confirmation (DI); enabling the controller to automate treatment cycles and alert to low chemical levels.
  • Pump Stations: Detecting float switch signals for tank high/low levels (DI), pump seal leak alarms (DI), and power failure triggers (DI); supporting remote monitoring and automatic pump activation/deactivation.

4. Precautions

• Platform Exclusivity: Use exclusively with ABB AC 800M DCS and Symphony Plus systems. Installation in non-ABB racks (e.g., Siemens PCS 7, Rockwell PlantPAx) will cause backplane communication failure and permanent damage to the module or controller.
• Field Wiring Best Practices:
  • Use twisted-pair shielded cables (24AWG~18AWG) for field connections to minimize noise pickup. Ground the cable shield at the field device end (not the module end) to avoid creating ground loops, which can cause false signals.
  • Keep input wiring at least 30cm away from high-voltage power cables (>1kV) or variable-speed drive (VSD) wiring—electromagnetic interference from these sources can corrupt input signals, even with built-in noise immunity.
• Power Supply Isolation: Always use an external, isolated 24V DC power supply for field inputs (do not share with backplane power or other module field supplies). Shared power supplies can cause voltage drops during high-load conditions, leading to incorrect logic "0"/"1" detection.
• Debounce Configuration: Match debounce time to the field device type: use short debounce (0.1ms~1ms) for electronic sensors (e.g., photoeyes) and longer debounce (10ms~100ms) for mechanical switches (e.g., limit switches). Incorrect debounce settings cause false triggers or delayed signal detection.
• Surge Protection Supplementary Measures: In environments with frequent electrical transients (e.g., substations, mining sites), install external surge protectors (SPDs) on field input terminals—while the module has built-in surge protection, extreme transients (e.g., direct lightning strikes) can overwhelm it and damage the module.
• Configuration Backup: Save the module’s configuration (input type, debounce time, channel mapping) via Control Builder M. After module replacement, restore the configuration to ensure consistency with the controller and avoid re-calibration or re-wiring.
• Maintenance Checks: Inspect quarterly:
  • Verify LED status (no red power/communication faults; input LEDs align with known field device states).
  • Test input channels by manually activating field devices (e.g., pressing an emergency stop button) and confirming the corresponding LED turns green and the controller registers the signal.
  • Clean the module’s ventilation slots with dry compressed air (avoid moisture) to prevent overheating—blocked vents reduce reliability in high-temperature operating environments.
  • Check field wiring terminals for tightness (loose connections cause intermittent signal loss) and signs of corrosion (common in humid/wet environments; clean with a dry cloth if present)

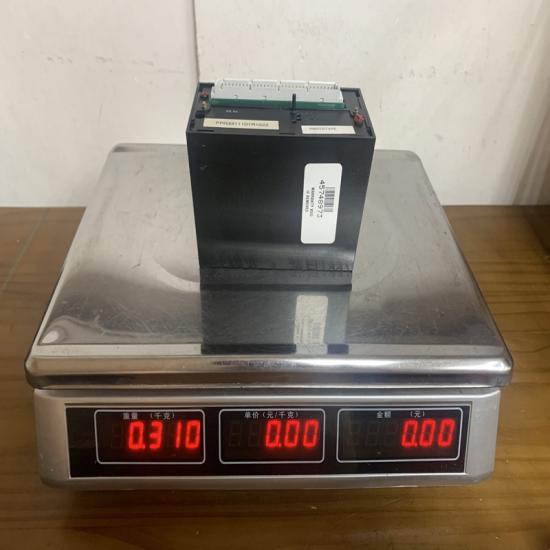

The structure and details of the product：
