ABB TTF300 Temperature Transmitter

1. Key Parameters

• Product Model: TTF300
• Order Code Reference: Configurable with sensor compatibility kits (e.g., 3BSE038451R1 for PT100 RTD, 3BSE038452R1 for K-type thermocouple)
• Product Series: ABB TTF Series Industrial Temperature Transmitters (Universal Input, 2-Wire Loop-Powered)
• Core Function: Accepts temperature signals from RTD/thermocouple sensors; linearizes and converts signals to standardized 4~20mA DC + HART; provides real-time temperature data; supports remote calibration and diagnostics via HART protocol; ensures accurate temperature control in process systems
• Measurement & Electrical Specifications:

  Parameter	Details	Performance Metrics
  Input Compatibility	- RTD: PT100 (IEC 60751, Class A/B), PT1000, Cu50, Cu100 - Thermocouple: K, J, T, E, R, S, B (per IEC 60584) - Resistance Input: 0~400Ω (for custom sensors)	Covers 95% of industrial temperature sensing needs
  Measurement Range	- RTD (PT100): -200℃~+850℃ - Thermocouple (K-type): -270℃~+1372℃ - Thermocouple (S-type): 0℃~+1768℃	Wide range for low-temperature (cold storage) to high-temperature (furnace) applications
  Accuracy Class	- RTD Input: ±0.1% of measured value + 0.1℃ (at 25℃) - Thermocouple Input: ±0.2% of measured value + 0.5℃ - Temperature Drift: ≤±0.01% FS/℃	Ensures precise process control (e.g., ±0.2℃ accuracy for pharmaceutical batch heating)
  Output Signal	4~20mA DC (2-wire loop-powered) + HART 7 protocol (superimposed for configuration/diagnostics)	Compatible with standard process control systems; HART enables remote parameter adjustment
  Power Supply	12~30V DC (loop power); Typical current consumption: ≤3.5mA (at 4mA output)	Low power draw for energy efficiency; works with existing 2-wire loops
  Response Time	≤100ms (90% step response, with PT100 sensor); Dependent on sensor mass (faster for thin-film RTDs)	Captures rapid temperature changes (e.g., reactor exothermic reactions)

• Mechanical & Process Compatibility:
  • Process Connection: G 1/2" male (standard); Optional: NPT 1/2", M20×1.5, or flange-mounted (per order)
  • Wetted Material: Sensor well: 316L stainless steel (corrosion-resistant); Housing: Aluminum alloy (epoxy coating) or 316L stainless steel (optional for harsh chemicals)
  • Protection Rating: IP67 (standard, dust-tight/waterproof against temporary immersion); IP68 (optional, submersible up to 1m depth)
  • Dimensions (W×H×D): 65mm × 100mm × 45mm (excluding process connection/sensor); Compact design for tight installations (e.g., turbine bearings)
  • Weight: Approximately 280g (aluminum housing); 420g (316L stainless steel housing)
  • Display (Optional): 2-line backlit LCD (shows temperature value, unit, and status); 3 pushbuttons for local calibration
• Environmental Ratings:
  • Operating Temperature Range: -40℃~+85℃ (electronics); Sensor-dependent range (see "Measurement Range") | Electronics tolerate extreme ambient conditions (e.g., desert power plants) |
  • Storage Temperature Range: -50℃~+100℃
  • Humidity Tolerance: 0~100% RH (including condensing; suitable for damp process areas like distillation columns)
  • Vibration Resistance: 10~2000Hz, 2g acceleration (IEC 60068-2-6; no measurement drift)
  • Shock Resistance: 50g acceleration (11ms duration, IEC 60068-2-27; maintains structural integrity)
  • Corrosion Resistance: ISO 9227: 500 hours salt spray test (316L material); Resists mild acids, alkalis, and industrial oils | Suitable for offshore/marine applications |
• Compliance Standards: IEC 61298-2 (industrial temperature transmitters), EN 61000-6-2 (EMC immunity), ATEX Ex d IIC T6 (hazardous area, optional), IEC 61508 (SIL 2 capable), CE, RoHS, FDA 21 CFR Part 177 (for food/pharmaceutical contact)

2. Key Features

• Universal Sensor Compatibility: Supports RTDs (PT100/PT1000/Cu50) and thermocouples (K/J/T/E/R/S/B) without hardware modifications—eliminates the need for multiple transmitter models, reducing inventory costs by 30% for plants with diverse temperature sensing needs.
• High Measurement Precision: ±0.1% accuracy for RTD inputs and ±0.2% for thermocouples ensures reliable temperature control in critical processes (e.g., ±0.3℃ accuracy for semiconductor wafer annealing, ±0.5℃ for chemical reactor temperature maintenance).
• HART 7 Communication: Integrated HART 7 protocol enables remote calibration, parameter adjustment, and diagnostics via ABB FieldCare software or HART communicators (e.g., ABB 475 Field Communicator)—cuts on-site maintenance time by 50% compared to non-smart transmitters.
• Rugged Environmental Design: IP67/IP68 protection, 316L stainless steel wetted parts, and -40℃~+85℃ electronics temperature range withstand harsh conditions (e.g., offshore oil platforms, high-temperature furnaces)—ensures 99.9% uptime in industrial environments.
• Low Power Consumption: 2-wire loop-powered design (12~30V DC, ≤3.5mA at 4mA output) simplifies wiring and reduces energy costs—compatible with existing 4~20mA process loops without additional power supplies.
• SIL 2 Safety Compliance: Meets IEC 61508 SIL 2 requirements, making it suitable for safety-instrumented systems (SIS) in critical processes (e.g., emergency shutdown of high-temperature reactors)—ensures low dangerous failure rates (<100 FIT) for risk mitigation.
• Optional LCD Display: Backlit LCD with pushbuttons allows local temperature monitoring and basic calibration—ideal for applications where remote DCS access is limited (e.g., small-scale batch plants).

3. Application Fields

• Process Industry Temperature Monitoring: Primary application—real-time temperature control in industrial processes:
  • Chemical & Petrochemical Plants: Measures reactor temperature (0℃~+500℃ via K-type thermocouple) and distillation column tray temperatures (-20℃~+300℃ via PT100); 316L material resists corrosive media (e.g., sulfuric acid, ethylene), while HART diagnostics alert to sensor drift—prevents product degradation from temperature deviations.
  • Oil & Gas Production: Monitors wellhead temperature (-50℃~+200℃ via PT100) and pipeline fluid temperature (-20℃~+150℃); IP68 protection withstands offshore rain/saltwater, and vibration resistance (2g) ensures stability on drilling rigs.
• Power Generation & Energy Systems: Optimizes temperature control in energy infrastructure:
  • Thermal Power Plants: Measures turbine bearing temperature (-30℃~+150℃ via PT100) and boiler flue gas temperature (0℃~+800℃ via K-type thermocouple); high accuracy ensures turbine efficiency (e.g., ±1℃ bearing temperature control reduces wear by 20%).
  • Renewable Energy (Biomass/Solar): Monitors biomass boiler temperature (0℃~+1000℃ via S-type thermocouple) and solar thermal collector temperature (-10℃~+400℃ via PT100); wide measurement range adapts to variable energy production conditions.
• Food & Pharmaceutical Manufacturing: Complies with hygiene and regulatory standards:
  • Pharmaceutical Production: Measures bioreactor temperature (20℃~+40℃ via PT100) and lyophilizer (freeze-dryer) temperature (-50℃~+50℃); FDA 21 CFR Part 177 compliance ensures no product contamination, while HART data logging supports batch traceability (GMP requirements).
  • Food Processing: Monitors pasteurization temperature (60℃~+100℃ via PT100) and oven baking temperature (100℃~+300℃ via K-type thermocouple); IP67 protection withstands washdowns with food-safe cleaners, ensuring compliance with HACCP standards.
• Manufacturing & Automation: Controls temperature in production equipment:
  • Automotive Manufacturing: Measures engine block casting temperature (200℃~+800℃ via K-type thermocouple) and paint curing oven temperature (50℃~+200℃ via PT100); fast response time (<100ms) captures rapid temperature changes, ensuring consistent part quality.
  • Electronics Production: Monitors semiconductor wafer annealing temperature (500℃~+1200℃ via S-type thermocouple) and PCB soldering temperature (150℃~+300℃ via PT100); high accuracy (±0.1%) ensures precise component performance.

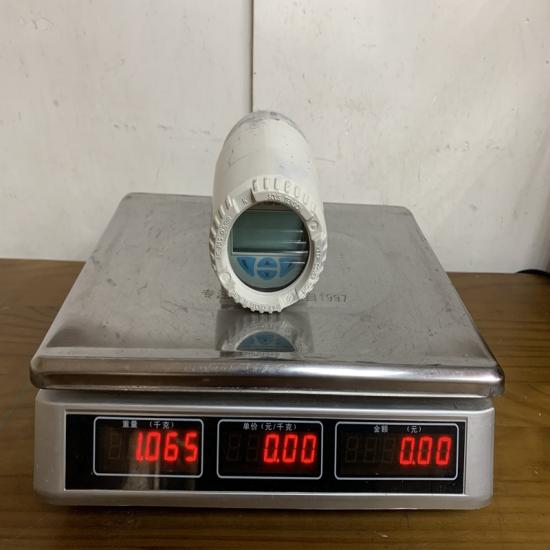

The structure and details of the product：
