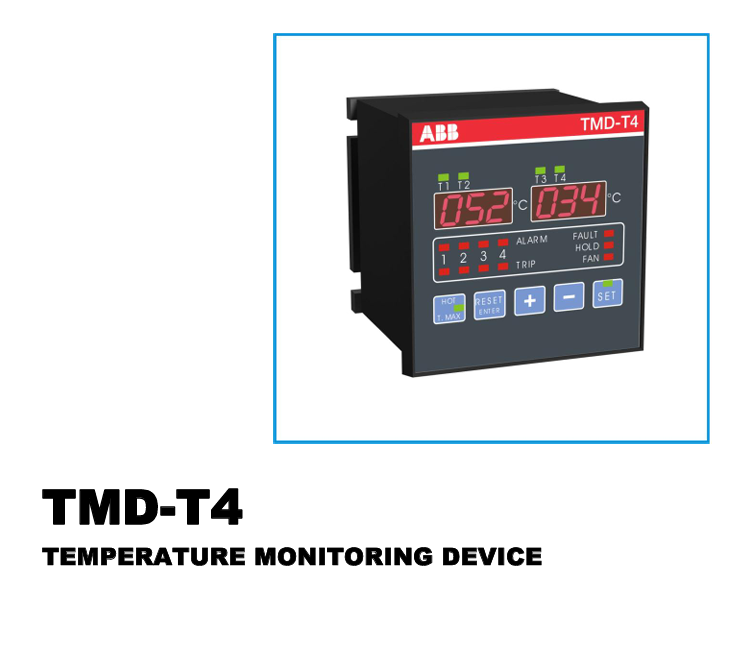

The ABB TMD-T4 is an industrial-grade precision temperature control unit engineered for high-accuracy temperature regulation, multi-sensor signal processing, and reliable fault protection in ABB industrial automation systems—specifically optimized for harsh, temperature-critical environments (plastic injection molding, food & beverage processing, pharmaceutical manufacturing, and electronic component testing) where consistent temperature control directly impacts product quality and process efficiency. It functions as a "dedicated temperature management hub," integrating multi-type sensor input (RTD/thermocouple), PID (Proportional-Integral-Derivative) control logic with auto-tuning, and multiple output types to regulate heating/cooling equipment (heaters, chillers, heat exchangers) while ensuring seamless communication with ABB PLCs/DCS (e.g., AC500, 800xA). Designed to prioritize temperature control precision, sensor compatibility, and industrial durability, it balances functional versatility, ease of calibration, and safety compliance for mission-critical scenarios (e.g., plastic melt temperature control, pharmaceutical batch reactor heating) where temperature deviations risk production defects or regulatory non-compliance. Below is its detailed specification:
- Product Model: TMD-T4
- Product Series: ABB Industrial Precision Temperature Control Units (Multi-Sensor, PID-Based Thermal Regulation)
- Core Function: Regulates temperature of industrial processes via PID control (with auto-tuning); accepts 4-channel sensor inputs (RTD/thermocouple, configurable); provides 2-channel control outputs (relay/SSR/analog); monitors temperature deviations and triggers fault alarms; supports communication with ABB automation systems via Modbus RTU; enables DIN rail mounting; ensures ±0.1℃ control accuracy for critical thermal processes.
- Electrical & Control Specifications:
- Mechanical & Environmental Specifications:
- Compliance Specifications:
- Multi-Sensor Compatibility & 4-Channel Input: Supports RTD (PT100/PT1000/Ni100) and thermocouple (K/J/T/E) inputs across 4 channels—eliminates the need for multiple single-sensor controllers, reducing cabinet clutter by 60%; ideal for multi-point temperature monitoring (e.g., plastic mold cavity, nozzle, and melt temperature).
- ±0.1℃ Precision PID Control with Auto-Tune: High-accuracy temperature regulation (±0.1℃ at steady state) ensures process consistency (e.g., pharmaceutical batch temperature variation <0.2℃); auto-tune function optimizes PID parameters in ≤60s, eliminating the need for expert calibration and reducing commissioning time by 70%.
- Dual Flexible Outputs (Relay/SSR/Analog): 2-channel outputs configurable as relay (for on/off heaters), SSR (for precise heater control), or analog (for variable-speed chillers)—adapts to diverse heating/cooling equipment without external adapters; output overload protection prevents damage from shorted heaters (e.g., frayed heating element wiring).
- Comprehensive Fault Protection & Diagnostics: Sensor open/short detection, output overload monitoring, and internal temperature alarms—triggers shutdown or alerts within <10ms of a fault (e.g., broken RTD sensor), preventing process overheating or underheating; 100+ event alarm history with timestamps enables root-cause analysis (e.g., tracking why a chiller failed).
- Industrial-Grade Durability: UL 94 V0 housing + Class 2 conformal coating + -10℃~+60℃ range—withstands oil mist (plastic industry), dust (food processing), and temperature fluctuations that degrade commercial temperature controllers; 1.5g vibration resistance ensures stability near injection molding machines or conveyor systems.
- Intuitive Color LCD & ABB Integration: 2.8-inch color LCD displays real-time temperature, setpoints, and alarms—enables on-site adjustments (e.g., increasing mold temperature by 5℃) without a PC; Modbus RTU communication integrates seamlessly with ABB AC500 PLCs and 800xA DCS, supporting centralized monitoring and recipe-based temperature control.
- Cost-Effective Precision: Delivers lab-grade temperature control (±0.1℃) at an industrial price point—avoids the high cost of specialized thermal controllers while meeting strict process requirements (e.g., electronic component soldering, pharmaceutical lyophilization); ideal for budget-conscious yet precision-driven applications.
- Plastic & Rubber Manufacturing: Mold Temperature Control:
- Injection Molding Machines: Regulates mold and melt temperature—4-channel input monitors mold cavity (PT100), nozzle (Type K thermocouple), melt (PT1000), and cooling water (Type J); 2 outputs control mold heaters (SSR) and cooling water valves (analog 4-20mA); ±0.1℃ accuracy ensures consistent part dimensional stability (e.g., plastic automotive components); conformal coating resists oil mist from hydraulic systems.
- Extrusion Lines: Controls extruder barrel temperature—4-channel input tracks 4 barrel zones (PT100); 2 outputs regulate zone heaters (relay) and cooling fans (SSR); auto-tune PID adapts to different plastic types (e.g., PP vs. ABS); EMC immunity withstands interference from extruder motors, avoiding temperature fluctuations.
- Food & Beverage Processing: Thermal Processing:
- Bakery Oven Control: Maintains oven temperature uniformity—4-channel input monitors top/bottom heating elements (Type K) and product surface (PT100); 2 outputs control heating elements (relay) and circulation fans (analog); ±0.1℃ accuracy ensures consistent crust formation (e.g., bread, pastries); condensing humidity tolerance suits bakery steam environments.
- Dairy Pasteurization: Regulates pasteurizer temperature—4-channel input tracks milk inlet/outlet (PT100) and heater (Type T); 2 outputs control heating coils (SSR) and flow valves (analog); high-temperature alarm (75℃) prevents overheating and milk scorching; UL 508 compliance meets food safety electrical standards.
- Pharmaceutical Manufacturing: Batch Reactor Heating:
- Active Pharmaceutical Ingredient (API) Synthesis: Controls reactor temperature—4-channel input monitors reactor jacket (PT1000), API solution (Type K), and cooling water (PT100); 2 outputs regulate jacket heaters (SSR) and cooling pumps (analog); ±0.1℃ accuracy ensures API purity (temperature-sensitive reactions); alarm history logs support FDA process validation audits.
- Lyophilization (Freeze-Drying): Manages freeze-dryer shelf temperature—4-channel input tracks shelf (PT100) and chamber (Type T) temperature; 2 outputs control shelf heaters (SSR) and vacuum pumps (relay); low-temperature range (-50℃) supports freeze-drying cycles; Modbus RTU integrates with 800xA DCS for batch data logging.
- Electronic Manufacturing: Component Testing:
- SMT Reflow Oven: Controls reflow zone temperature—4-channel input monitors 4 reflow zones (PT100); 2 outputs regulate zone heaters (SSR) and conveyor speed (analog); ±0.1℃ accuracy ensures consistent solder joint quality (e.g., PCB components); compact design fits in SMT machine control cabinets; vibration resistance withstands conveyor operation.
- Battery Testing Chambers: Maintains test temperature—4-channel input tracks chamber air (PT1000) and battery surface (Type K); 2 outputs control chamber heaters (SSR) and cooling systems (analog); -10℃~+60℃ range covers battery charge/discharge test conditions; self-diagnostics alert to sensor faults, preventing invalid test data.
- System Compatibility (Critical): Use exclusively with approved sensors (RTD: PT100/PT1000/Ni100; thermocouple: K/J/T/E) and loads matching output ratings (relay: 250V AC/5A, SSR: 3-32V DC control, analog: 4-20mA/0-10V); non-approved sensors cause measurement errors (e.g., incorrect thermocouple type = ±5℃ deviation); overloading outputs triggers protection and may damage internal circuits.
- Installation & Wiring Safety:
- Wiring Practices:
- Follow terminal labeling (SENSOR 1-4, OUTPUT 1-2, POWER, RS485 A/B)—reverse sensor polarity (RTD) or thermocouple leads causes incorrect readings; use shielded cables for sensors (ground at the TMD-T4 end only) to reduce EMI; torque terminals to 0.5~0.7 N·m (sensor/communication) and 0.8~1.0 N·m (power/output) to prevent loose connections.
- Grounding Requirements: Connect the unit’s chassis ground to system earth (≤1Ω resistance) using 22AWG copper wire—critical for EMC performance and sensor signal integrity; do not share ground with high-current equipment (e.g., heaters, motors) to avoid ground loops.
- Mounting Notes:
- Ensure DIN rail is rated for ≥500g (supports unit + wiring); snap fully onto the rail until the anti-slip latch clicks—partial mounting risks dislodgment during vibration. Leave ≥15mm clearance around the unit for airflow; avoid mounting near heat sources (e.g., heaters, power supplies >100W) to prevent internal overheating.
- Operation & Maintenance:
- Calibration & Tuning:
- Calibrate sensors annually with a certified temperature reference (e.g., dry-block calibrator) to maintain ±0.1℃ accuracy—drifted sensors (e.g., PT100 with ±0.5℃ error) cause process deviations; use auto-tune after sensor replacement or process changes (e.g., new plastic type), and verify tuning via steady-state temperature monitoring.
- Fault Handling:
- If the red alarm LED illuminates: 1) Check the LCD for fault type (e.g., "Sensor 1 Open," "Output 2 Overload"); 2) Power off if overheating is detected (e.g., internal temp ≥70℃); 3) Repair/replace faulty components (sensor, output load); 4) Reset the alarm via the keypad—do not bypass alarms (risks process damage).
- If temperature fluctuates beyond ±0.2℃: 1) Check sensor wiring (loose/shielded incorrectly); 2) Re-run auto-tune PID; 3) Verify EMC sources (e.g., nearby VFDs) and reposition the unit if needed.
- Regular Inspection:
- Monthly: Clean dust from vents with a dry brush; check LEDs (green = normal, red = fault); verify current/setpoint temperature match (±0.1℃).
- Quarterly: Test alarm functions (simulate high temperature); check sensor continuity with a multimeter; verify Modbus communication with ABB PLC/DCS.
- Annually: Calibrate all sensor inputs; inspect conformal coating for cracks (chemical exposure); update firmware (via Modbus) to the latest version; replace the unit if control accuracy drops below ±0.3℃ or self-diagnostics fail.
- Environmental Limitations:
- Condensing Humidity/Chemicals: Do not operate above 55℃ in condensing environments—use IP54-rated enclosures with dehumidifiers to maintain <60% RH; avoid contact with strong acids/alkalis (e.g., pharmaceutical cleaning agents) or solvents—these degrade the conformal coating and LCD screen; clean spills immediately with a dry cloth.
- Replacement & Spare Parts:
- Genuine ABB Components: Use only genuine ABB TMD-T4 units and approved accessories (sensor cables, mounting adapters)—non-genuine units lack precision calibration (±0.1℃) and UL 508 compliance, leading to process defects; verify authenticity via ABB’s serial number lookup tool.
- Spare Inventory: Maintain 1 spare unit per 8 deployed systems—store in a dry, temperature-controlled area (15℃~25℃); avoid storing near magnetic fields (which damage sensor signal processing); test spares semi-annually to confirm control accuracy and sensor compatibility
-
The structure and details of the product：
Please make an inquiry for more models
