                                                                                                                                                                                                                                                                                    • ABB TEIP 11 Pressure Transmitter Interface

                                                                                                                                                                                                                                                                                      Product Description

                                                                                                                                                                                                                                                                                      The ABB TEIP 11 Pressure Transmitter Interface is an I/P (Current-to-Pressure) Signal Converter manufactured by ABB Measurement & Analytics. It converts standard electrical current signals, such as 4–20 mA, into proportional pneumatic pressure signals for controlling pneumatic actuators, valves, and process control equipment.

                                                                                                                                                                                                                                                                                      The TEIP 11 uses a force-balance conversion principle and is designed for industrial process automation applications requiring reliable conversion between electrical control systems and pneumatic field devices. It is available with explosion protection options for hazardous industrial environments.

                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Detailed Specifications

                                                                                                                                                                                                                                                                                      Parameter	Specification
                                                                                                                                                                                                                                                                                      Manufacturer	ABB
                                                                                                                                                                                                                                                                                      Model	TEIP 11
                                                                                                                                                                                                                                                                                      Product Type	I/P Signal Converter / Pressure Interface
                                                                                                                                                                                                                                                                                      Function	Electrical Current to Pneumatic Pressure Conversion
                                                                                                                                                                                                                                                                                      Input Signal	0–20 mA, 4–20 mA (standard)
                                                                                                                                                                                                                                                                                      Input Resistance	Approx. 260 Ω
                                                                                                                                                                                                                                                                                      Output Signal	0.2–1 bar / 3–15 psi
                                                                                                                                                                                                                                                                                      Optional Output	0.4–2 bar / 6–30 psi
                                                                                                                                                                                                                                                                                      Air Supply Pressure	1.4–10 bar (20–150 psi)
                                                                                                                                                                                                                                                                                      Air Medium	Clean instrument air
                                                                                                                                                                                                                                                                                      Accuracy	High precision linear conversion
                                                                                                                                                                                                                                                                                      Mounting	Field / Control Room Installation
                                                                                                                                                                                                                                                                                      Application	Process Automation Control Systems



                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Advantages & Features

                                                                                                                                                                                                                                                                                      • Converts 4–20 mA electrical signals into pneumatic output signals
                                                                                                                                                                                                                                                                                      • Reliable force-balance operating principle
                                                                                                                                                                                                                                                                                      • Suitable for industrial valve and actuator control
                                                                                                                                                                                                                                                                                      • Supports hazardous area applications with certified versions
                                                                                                                                                                                                                                                                                      • Compact design with high resistance to vibration
                                                                                                                                                                                                                                                                                      • Provides stable and accurate signal conversion
                                                                                                                                                                                                                                                                                      • Suitable for retrofit and maintenance of existing pneumatic control systems
                                                                                                                                                                                                                                                                                      • Compatible with process control and instrumentation systems



                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Applications

                                                                                                                                                                                                                                                                                      • Process Control Systems
                                                                                                                                                                                                                                                                                      • Pneumatic Control Valve Operation
                                                                                                                                                                                                                                                                                      • Chemical Industry Automation
                                                                                                                                                                                                                                                                                      • Oil & Gas Equipment
                                                                                                                                                                                                                                                                                      • Power Plant Control Systems
                                                                                                                                                                                                                                                                                      • Water Treatment Systems
                                                                                                                                                                                                                                                                                      • Industrial Instrumentation Systems
                                                                                                                                                                                                                                                                                      • DCS Control Applications

                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Precautions

                                                                                                                                                                                                                                                                                      • Ensure the input current signal matches the configured range (commonly 4–20 mA).
                                                                                                                                                                                                                                                                                      • Use clean, dry instrument air according to specifications.
                                                                                                                                                                                                                                                                                      • Confirm output pressure range before connecting to pneumatic equipment.
                                                                                                                                                                                                                                                                                      • Verify explosion protection requirements for hazardous areas.
                                                                                                                                                                                                                                                                                      • Avoid contamination of pneumatic connections.
                                                                                                                                                                                                                                                                                      • Calibration should be performed after installation if required.

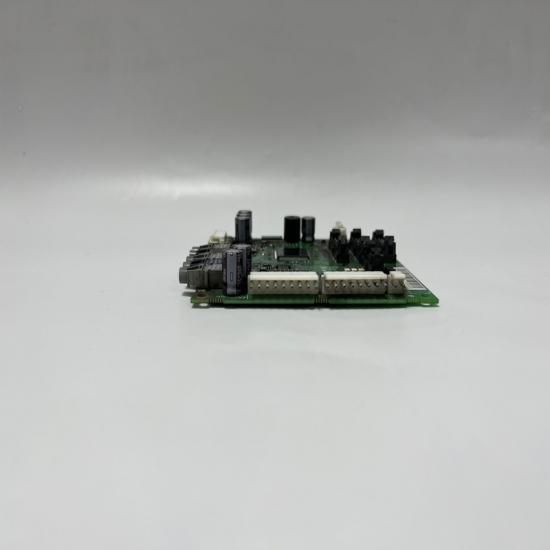

The structure and details of the product：
