ABB TC514V2 3BSE013281R1 twisted pair/optical modem

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB TC514V2 3BSE013281R1 Twisted Pair/Optical Modem Product Overview

Introduction:

The ABB TC514V2 3BSE013281R1 Twisted Pair/Optical Modem is a highly reliable communication device designed to facilitate the transfer of data over industrial control networks. It supports both twisted-pair and optical fiber connections, offering flexibility in the type of transmission medium used for communication. This modem is commonly employed in ABB automation systems to ensure stable and efficient data communication over long distances or in environments with electromagnetic interference. The TC514V2 modem is ideal for applications requiring high-speed data transmission and is used for both point-to-point and networked communication systems.

Key Specifications:

• Model: TC514V2 3BSE013281R1

• Type: Twisted Pair/Optical Modem

• Communication Media:

  • Twisted Pair (for electrical signals)

  • Optical Fiber (for optical communication)

• Data Transfer Speed:

  • Up to 1 Mbps (subject to medium and application configuration)

• Interface:

  • RS-232 for serial communication

  • RS-485 (optional) for multi-point communication

• Transmission Distance:

  • Twisted Pair: Up to 1,000 meters (depending on network configuration and cable quality)

  • Optical Fiber: Up to 10 km or more, depending on the optical fiber type

• Power Supply:

  • 24V DC (for module operation)

  • Separate power supply for fiber-optic communication equipment (if required)

• Protocols Supported:

  • Modbus RTU/ASCII

  • Profibus DP

  • Ethernet/IP (when used in conjunction with compatible communication interface)

• Mounting: DIN rail mountable

• Dimensions: Approx. 160mm x 120mm x 80mm (subject to configuration)

• Weight: Approx. 0.6 kg (subject to configuration)

• Protection Rating: IP20 (indoor use)

• Operating Temperature: -10°C to +60°C

• Storage Temperature: -40°C to +85°C

• Certifications: CE, UL, RoHS compliant

Features and Benefits:

1. Dual Communication Media (Twisted Pair/Optical Fiber):

   • The TC514V2 modem offers dual support for twisted pair cables (electrical signals) and optical fiber connections (for optical communication). This flexibility allows users to choose the most suitable transmission medium based on the requirements of the installation environment (e.g., long-distance communication or electromagnetic interference).

2. Long-Distance Communication:

   • For twisted-pair connections, the modem can reliably communicate over distances up to 1,000 meters. When using optical fiber, communication distances can extend up to 10 km or more, making the TC514V2 ideal for large-scale industrial systems or distributed networks that require long-distance communication.

3. High-Speed Data Transmission:

   • The modem supports data transfer speeds of up to 1 Mbps, ensuring high-speed data exchange between industrial control systems and field devices. This fast data transmission helps optimize process monitoring and control in real-time applications.

4. Flexible Communication Protocols:

   • The TC514V2 supports common industrial communication protocols such as Modbus RTU/ASCII, Profibus DP, and Ethernet/IP. This enables easy integration with a wide range of ABB and third-party devices and control systems, making it suitable for diverse automation and control applications.

5. Enhanced Noise Immunity:

   • The optical fiber connection offers superior immunity to electrical noise and interference, ensuring stable communication even in electrically noisy industrial environments. This is especially important for industries where electromagnetic interference (EMI) could disrupt communication, such as power plants, oil rigs, and factories with heavy machinery.

6. Cost-Effective Solution:

   • By supporting both twisted pair cables and optical fiber, the TC514V2 offers a cost-effective solution for long-distance and reliable communication without the need for expensive and complex infrastructure. Users can select the medium that best fits their budget and technical requirements.

7. Easy Installation and Maintenance:

   • The TC514V2 is designed for easy installation, featuring DIN rail mounting for simple integration into control cabinets. It also includes diagnostic LEDs for quick monitoring of communication status and fault detection, which helps reduce downtime and simplifies maintenance.

8. Compact and Robust Design:

   • The compact and rugged design of the TC514V2 makes it suitable for installation in a variety of environments. Its IP20 protection rating ensures that the module can be used in indoor industrial environments where dust or moisture is minimal.

9. Scalable and Expandable:

   • The TC514V2 is scalable, allowing multiple modems to be integrated into larger networks. This modular design supports the expansion of control systems and allows for easy adaptation as communication needs evolve.

Applications:

1. Industrial Automation:

   • The TC514V2 is used in industrial automation systems for seamless communication between PLCs, remote I/O devices, sensors, and actuators. It enables reliable data exchange over long distances, facilitating distributed control systems and supervisory control and data acquisition (SCADA) networks.

2. Process Control:

   • In process control systems, the TC514V2 modem ensures stable communication between various devices across large industrial plants, where distance and electrical interference may otherwise compromise data integrity.

3. Building Automation Systems (BMS):

   • In building automation, the TC514V2 modem is used to facilitate communication between control devices, HVAC systems, lighting systems, and other building equipment. The ability to use optical fiber allows for long-distance connections in large buildings or campuses.

4. Energy Management:

   • In energy management systems, the TC514V2 is used to connect energy meters, power controllers, and monitoring equipment. Its optical fiber support helps ensure reliable communication in large power grids and substations, where long-distance data transmission is required.

5. Water and Wastewater Treatment:

   • The TC514V2 modem is utilized in water and wastewater treatment plants to enable remote monitoring and control. It connects sensors and control devices spread across large areas, ensuring data integrity and continuous operation.

6. Oil and Gas:

   • The TC514V2 is ideal for oil and gas applications, such as monitoring pipelines, refineries, and offshore rigs. The optical fiber support ensures reliable data transmission even in harsh and noisy environments, ensuring safety and operational efficiency.

7. SCADA and Remote Monitoring Systems:

   • In SCADA systems, the TC514V2 provides the necessary communication link between control centers and remote sites. It helps maintain continuous monitoring and control of industrial processes by transmitting real-time data from sensors and field devices.

8. Railway and Transportation Systems:

   • The TC514V2 modem is used in railway and transportation systems for long-distance communication between control centers and various components such as signaling systems, traffic control devices, and monitoring equipment.

9. Military and Defense Applications:

   • In military and defense systems, where reliability and data security are paramount, the TC514V2 can be used to ensure communication in rugged and harsh environments, where traditional communication systems may fail.

Installation and Maintenance Considerations:

1. Power Supply:

   • The TC514V2 requires a 24V DC power supply. Ensure that the power supply is stable and meets the module’s requirements. If using optical fiber communication, additional power supplies for fiber-optic transmitters and receivers may be needed.

2. Cable Selection:

   • When using twisted pair cables, ensure that the cables are of high quality and properly shielded to minimize signal degradation over longer distances. For optical fiber communication, ensure that the fiber type (single-mode or multi-mode) matches the system design to achieve the desired transmission distance.

3. Communication Protocol Compatibility:

   • The TC514V2 supports a variety of communication protocols. Before installation, verify that the device is compatible with the communication protocol of the control system (e.g., Modbus RTU, Profibus DP, Ethernet/IP).

4. Diagnostic LEDs:

   • Use the built-in diagnostic LEDs to monitor the operational status of the modem. These LEDs indicate power status, communication activity, and fault conditions. Regularly check these indicators to ensure smooth operation.

5. Environmental Protection:

   • The TC514V2 is rated for indoor use with an IP20 protection rating. If used in harsh outdoor environments, consider installing the modem in a protective enclosure with a higher protection rating (e.g., IP65) to guard against dust, moisture, and temperature extremes.

6. Installation Location:

   • Install the modem in an environment with adequate ventilation to prevent overheating. Ensure it is mounted securely on a DIN rail to allow easy access for maintenance and troubleshooting.

7. Firmware and Software Updates:

   • Check for and install any firmware or software updates provided by ABB to ensure that the TC514V2 modem remains compatible with new communication standards and enhancements.

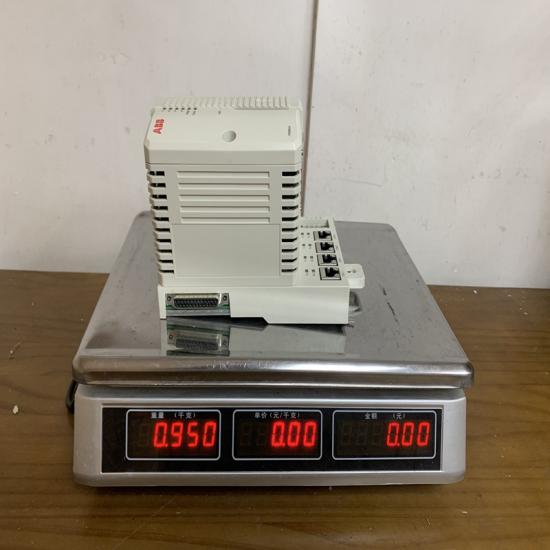

The structure and details of the product：
