ABB TC512V1 twisted-pair modem

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

• • ABB TC512V1 Twisted-Pair Modem - Product Description

    1. Product Overview

    The ABB TC512V1 twisted-pair modem is a communication module designed for industrial automation systems, specialized for long-distance data transmission and network communication. It allows data transmission over twisted pair cables, making it suitable for various automation control systems and ensuring reliable data exchange between devices and control systems over long distances.

    2. Main Parameters

    • Model: TC512V1

    • Data Transfer Rate: Supports up to 115.2 Kbps data transfer rate

    • Communication Interfaces: RS-232, RS-485

    • Operating Voltage: 24V DC ±20%

    • Transmission Distance: Supports up to 1200 meters transmission distance (depending on data rate)

    • Twisted-Pair Cable: Standard twisted pair

    • Operating Temperature Range: -20°C to +70°C

    • Protection Rating: IP20

    • Dimensions: 120mm (L) x 90mm (W) x 40mm (H)

    • Weight: 0.3kg

    • Mounting Method: DIN Rail Mounting

    • Supported Protocols: MODBUS RTU, Profibus, Ethernet, and other common protocols

    3. Product Advantages and Features

    • Long-Distance Data Transmission: Uses twisted pair cables to support stable data transmission up to 1200 meters, ideal for remote communication needs.

    • High Data Transfer Rate: Supports up to 115.2 Kbps data transfer rate, meeting the requirements for high-speed data exchange.

    • Multiple Communication Interfaces: Provides RS-232 and RS-485 serial communication interfaces, compatible with a variety of industrial automation devices.

    • High Reliability: Designed with industrial-grade components to ensure stable operation in harsh environments.

    • Easy Integration: DIN rail mounting design makes it easy to integrate with other automation system components.

    • Wide Protocol Support: Compatible with MODBUS RTU, Profibus, Ethernet, and other protocols, enabling seamless integration with different control systems.

    4. Application Fields

    The ABB TC512V1 twisted-pair modem is widely used in the following fields:

    • Industrial Automation: For data transmission between PLCs, SCADA systems, and other devices, ensuring reliable communication between equipment and control systems over long distances.

    • Process Control: In industries such as chemicals, power, and oil, for remote data exchange between equipment and control systems.

    • Power Systems: For data communication between power equipment and control systems, ensuring stable operation of power systems.

    • Transportation: Used in rail transportation and automated traffic systems for data exchange and remote control.

    • Building Automation: For equipment monitoring and remote management in smart buildings.

    • Energy Management: Used for energy monitoring and remote data collection to optimize and manage energy usage.

    5. Precautions



    • Voltage Requirements: Ensure a stable 24V DC power supply during installation to avoid damage caused by voltage mismatch.

    • Twisted-Pair Cable Selection: Use appropriately rated twisted-pair cables to ensure optimal data transmission performance and reliability.

    • Environmental Conditions: Install the device in a dry, non-corrosive gas environment to avoid the impact of high humidity and extreme temperatures on performance.

    • Regular Inspection: Periodically check connected devices and cables to ensure stable signal transmission and avoid system faults.

    • Lightning and EMI Protection: Take proper protective measures in high-voltage or electromagnetic interference (EMI) environments to ensure safe and stable operation.

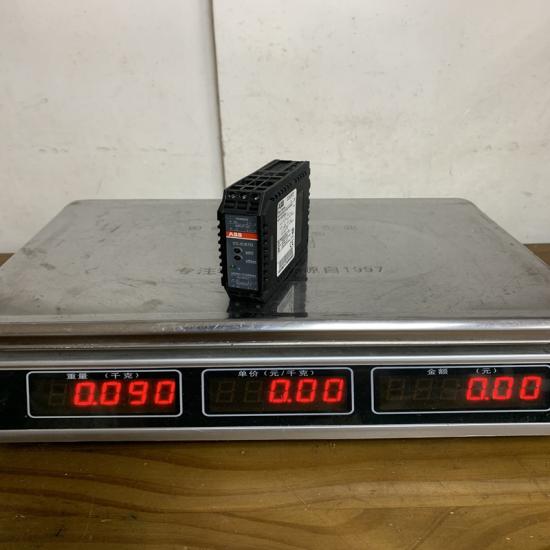

The structure and details of the product：
