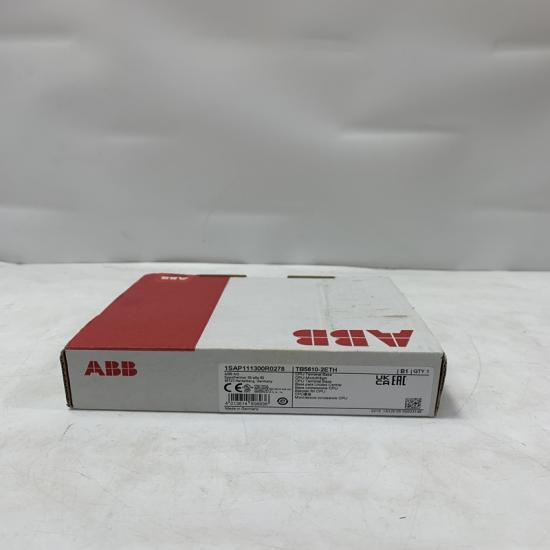

ABB TB5610-2ETH Terminal Base

Product Specifications

• Brand: ABB

• Model: TB5610-2ETH

• Type: PLC terminal base

• Compatible CPU Modules:

  • PM5630

  • PM5650

  • PM5670

  • PM5675

• Expansion Slots: 1 slot (for communication modules or AC500-S modules)

• Network Interfaces:

  • 2x RJ45 Ethernet ports (ETH1 and ETH2)

  • 10/100 base-TX speed

  • Configurable as internal switch or independent interfaces

• Connection: Plug-in terminal blocks with spring-clamp technology

• Mounting: Standard DIN rail mounting

• Operating Temperature: -25°C to +60°C (industrial grade)

• Protection Rating: IP20 (for cabinet installation)

• Certifications: CE, UL etc.

Key Features

1. High Compatibility: Supports PM5630/PM5650/PM5670/PM5675 CPU modules

2. Flexible Expansion: 1 slot for communication or safety modules

3. Dual Ethernet: Integrated 2x 10/100M Ethernet ports

4. Easy Installation: Spring-clamp terminals simplify wiring

5. Reliability: Industrial-grade design for harsh environments

6. Modular Structure: Facilitates maintenance and upgrades

7. Diagnostics: LED indicators for status monitoring

8. Space Saving: Compact design optimizes cabinet space

Applications

1. Manufacturing Automation: Automotive, machinery production lines

2. Process Control: Chemical, oil, pharmaceutical industries

3. Power Systems: Generation and distribution automation

4. Water Treatment: WWTP and water supply plants

5. Building Automation: Large facility monitoring systems

6. Logistics Systems: Automated warehousing and conveying

Usage Precautions

1. Compatibility Check: Verify CPU module compatibility

2. Expansion Limit: Only one AC500-S module per CPU base

3. Network Configuration: Properly set Ethernet interface modes

4. Environment: Avoid dust, moisture or high vibration

5. Wiring Standards:

   • Separate power and signal cables

   • Ensure terminal tightness

6. ESD Protection: Take anti-static measures during installation

7. Professional Operation: Installation by trained personnel recommended

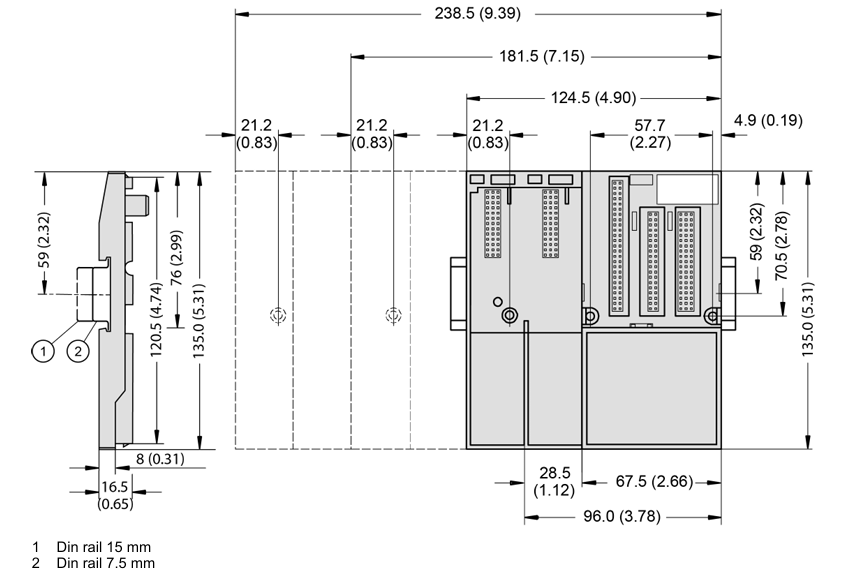

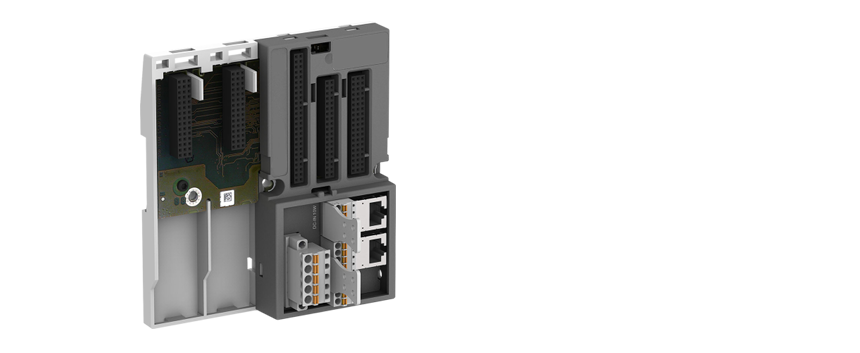

The structure and details of the product：
