ABB Tb541-eth 1sap114100r0170 Terminal Backplane/Backplane

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

Product Overview

The ABB TB541-ETH 1SAP114100R0170 is an industrial-grade terminal backplane designed for signal and power distribution in modular control systems. It supports high-speed Ethernet communication, ensuring stable and reliable data transfer between modules. The TB541-ETH is compatible with ABB PLC systems and I/O modules, allowing system expansion and enhancing integration and maintenance efficiency.

Technical Specifications

• Model: TB541-ETH 1SAP114100R0170

• Type: Terminal Backplane

• Function: Module connection, signal distribution, power distribution

• Interface Type: Ethernet

• Compatible Systems: ABB PLC systems and I/O modules

• Operating Temperature: 0–55°C

• Storage Temperature: -20–70°C

• Protection Rating: IP20

• Mounting: DIN rail or panel mounting

• Material: High-strength engineering plastic with metal conductors

• Standards: Compliant with industrial automation standards

Key Features & Advantages

• High-speed data transfer — supports Ethernet communication for reliable operation

• Modular design — facilitates system expansion and module replacement

• High reliability — industrial-grade materials, temperature and vibration resistant

• Strong system integration — seamless connection with ABB PLCs, I/O modules, and controllers

• Easy maintenance — clear terminal labeling and flexible mounting

• Space-saving design — compact modules suitable for complex control cabinets

Application Areas

• Industrial automation control systems

• ABB PLC system module expansion

• Power and energy management systems

• Machinery manufacturing and processing equipment

• Automated production lines and Industrial IoT (IIoT) systems

• Data acquisition and Distributed Control Systems (DCS)

Precautions

1. Ensure modules match the backplane interfaces before installation

2. Avoid use in high temperature, high humidity, or corrosive environments

3. Verify proper and secure cable connections

4. Regularly inspect backplane and connected modules

5. Disconnect power before maintenance or replacement

6. Avoid strong mechanical impacts to prevent damage to the backplane or interfaces

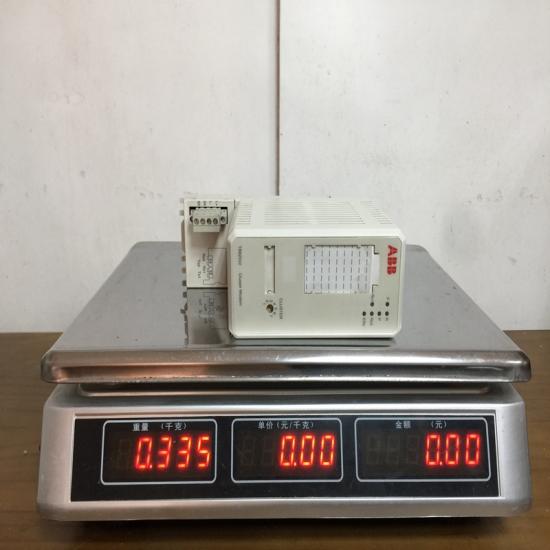

The structure and details of the product：
