ABB SPCJ4D34-AA motor protection relay module
Item NO.:
SPCJ4D34-AAPayment:
T/TPrice:
$2050Product Origin:
swedenColor:
SEWProduct weight:
0.94KGLead Time:
In stockWe will arrange delivery within 3-5 days after receiving the payment.
Our express delivery: DHL and FedEx.
Quality packing for each product
Destination country all taxes & duty to be paid by buyer
Only part of the brand and model, if you have other product needs, please contact us.
The ABB SPCJ4D34-AA Motor Protection Relay Module is an essential component for low-voltage motor control and protection systems, designed to protect three-phase asynchronous motors from overload, underload, locked rotor, and incorrect phase sequence conditions.
The module integrates multiple protection functions and alarm interfaces and can work with ABB motor controllers, contactors, and circuit breakers to ensure efficient and reliable motor operation.
| Item | Specification |
|---|---|
| Model | SPCJ4D34-AA |
| Type | Motor Protection Relay Module |
| Rated Voltage | 24 – 240 V AC/DC (control voltage) |
| Rated Current | 0.1 – 63 A (adjustable, suitable for different motor sizes) |
| Protection Functions | Overload, underload, locked rotor, phase sequence, phase loss protection |
| Alarm Output | Relay contact output for external alarm systems |
| Response Time | ≤ 500 ms |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95%, non-condensing |
| Mounting | DIN rail mount |
| Dimensions (approx.) | 90 × 36 × 60 mm |
| Weight | Approx. 0.2 kg |
| Compliance | CE, UL, IEC 60947-4-1 / IEC 60947-5-1 |
Comprehensive motor protection including overload, underload, locked rotor, and phase sequence detection.
Adjustable current range: 0.1 – 63 A suitable for a wide range of motors.
Fast response: Low-latency alarm and trip to protect motors.
Modular design: DIN rail mount, easy to replace and maintain.
Alarm interface: Can be connected to external alarm systems for remote monitoring.
Industrial-grade reliability: Suitable for continuous operation in harsh environments.
Low-voltage motor control and protection systems
Industrial automation and production line motor protection
Pumps, fans, and compressors
Petrochemical, metallurgical, and power plant motor protection
HVAC systems and automated machinery
Disconnect power before installation or maintenance.
Ensure motor rated current matches module settings.
Keep module and terminals clean to prevent dust or corrosion.
Avoid long-term exposure to high humidity, high temperature, or corrosive environments.
Periodically check module operation and alarm output.
Do not disassemble or modify internal circuits.
Use only ABB-certified modules and accessories.

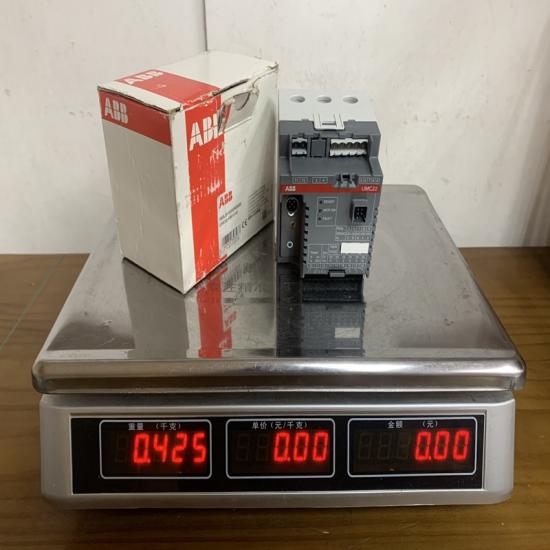

The structure and details of the product：
