ABB SDCS-PIN-11 Power Interface Board

Product Description

Key Specs

• System Compatibility: Exclusively designed for ABB ACS800 series inverters (frame sizes R5-R8); integrates with the inverter’s control board (SDCS-CON-11) and power stack.
• Power Handling:
  • Input: Connects to 3-phase AC main power (up to 690V AC) via inverter’s main terminals.
  • Sensing Range: Measures DC bus voltage (0-1000V DC) and phase currents (0-500A RMS) via shunt resistors and voltage dividers.
• Signal Conversion:
  • Converts high-voltage analog signals (DC bus voltage, phase currents) to isolated low-voltage signals (0-5V DC) for the control board.
  • Provides isolated gate drive signals to inverter IGBT modules (via optocouplers).
• Isolation Ratings:
  • Power circuit to control circuit: 4kV AC (1min) isolation — prevents high-voltage transients from damaging control electronics.
  • Channel-to-channel isolation: 2kV AC (1min) — ensures measurement accuracy in noisy industrial environments.
• Mechanical & Environmental:
  • Dimensions: 180mm × 120mm × 30mm (PCB board with mounting holes); weight ~200g.
  • Operating Environment: 0°C~+50°C, 5%-95% RH (non-condensing); mounted inside inverter cabinet (IP20 protection).
  • Connector Type: 4× industrial-grade plug connectors (2 for power sensing, 2 for control signal transmission).

Core Functions

1. Power Sensing & Monitoring:
   • Measures 3-phase input currents and DC bus voltage in real-time, providing critical data to the inverter’s control board for closed-loop speed/torque control.
   • Detects overcurrent, overvoltage, and undervoltage conditions, triggering protection actions (e.g., inverter shutdown) via the control system.
2. Signal Isolation:
   • Isolates high-voltage power circuits from low-voltage control circuits using optocouplers and isolation transformers, protecting sensitive control electronics (e.g., microprocessors) from voltage spikes.
3. Gate Drive Signal Distribution:
   • Transmits isolated gate drive signals from the control board to IGBT modules, enabling precise switching of power semiconductors in the inverter’s power stage.
4. Fault Diagnostics:
   • Includes LED indicators for power supply status, isolation integrity, and signal transmission — red LED illuminates for critical faults (e.g., isolation failure).

Core Advantages

1. Inverter-Specific Optimization: Tailored for ACS800 series, ensuring precise signal matching between power components and control systems — critical for inverter performance (e.g., low harmonic distortion, stable current regulation).
2. High Isolation Safety: 4kV isolation rating exceeds industry standards, providing robust protection in high-voltage industrial environments (e.g., 690V motor drives in steel mills).
3. Reliable Signal Integrity: Low-noise analog signal conditioning ensures accurate current/voltage measurements, enabling the control board to execute precise motor control algorithms.
4. Easy Replacement: Plug-in connectors and standardized mounting allow quick replacement during maintenance, minimizing inverter downtime.

Applications

1. Industrial Motor Drives: Integral to ACS800 inverters controlling large 3-phase motors (e.g., 100-500kW pumps in water treatment plants) — enables accurate current sensing for torque control and overload protection.
2. Heavy Machinery: Supports ACS800 inverters in crane and hoist systems — monitors DC bus voltage to prevent voltage spikes during regenerative braking, protecting IGBT modules.
3. Manufacturing Lines: Used in ACS800-based conveyor and mixer drives — provides reliable current feedback for speed synchronization across multiple motors in production lines.
4. Renewable Energy Systems: Interfaces with ACS800 inverters in small wind turbine or solar pump systems — monitors input power to optimize energy conversion efficiency.

Precautions

1. Compatibility Check: Ensure use with ACS800 frame sizes R5-R8 — incompatible with smaller (R1-R4) or larger (R9-R11) frames, as power ratings and connector layouts differ.
2. Static Protection: Handle with anti-static wristbands — electrostatic discharge (ESD) can damage sensitive components (e.g., optocouplers, voltage sensors).
3. Installation Torque: Tighten mounting screws to 0.5-0.8N·m — over-tightening warps the PCB, causing connector misalignment or trace damage.
4. Isolation Testing: After replacement, perform insulation resistance tests (≥100MΩ at 500V DC) between power and control terminals — ensures isolation integrity before inverter startup.
5. Environmental Control: Ensure inverter cabinet cooling is functional (ambient temp ≤50°C) — overheating degrades isolation components and reduces board lifespan.
6. Genuine Replacement: Use only ABB-genuine boards — counterfeit units may have insufficient isolation, leading to inverter failures or safety hazards.

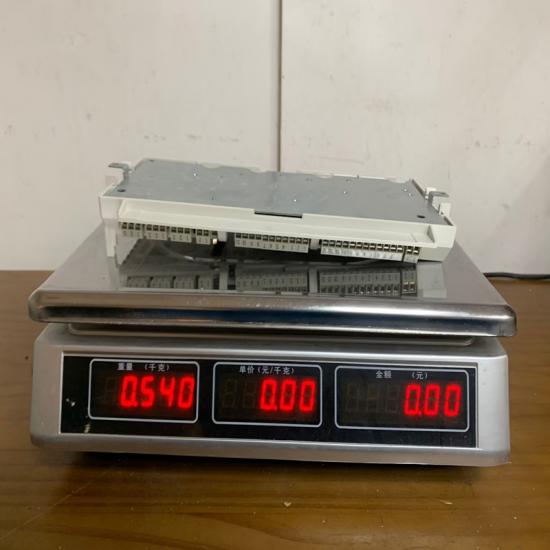

The structure and details of the product：
