ABB SDCS-CON-F01 (3ADT316500R1501) Controller Module

1. Key Parameters

• Product Model: SDCS-CON-F01
• Order Code: 3ADT316500R1501
• Product Series: ABB ACS880 Drive Controller Modules (SDCS-CON Family, High-Power Drive Control)
• Core Function: Executes ACS880 drive control logic (speed/torque regulation); processes drive operational data (current, voltage, temperature); enables multi-protocol communication with upper systems; provides fault detection/diagnostics; supports drive parameter configuration and firmware updates
• Electrical Specifications:

  Parameter	Details	Performance Metrics
  Power Supply	- Input Voltage: 24V DC ±10% (from drive internal power supply) - Current Consumption: ≤500mA (normal operation); ≤800mA (during firmware update) - Power Consumption: ≤12W (24V DC × 500mA)	Draws power directly from ACS880 drive, eliminating external power wiring
  Control Performance	- Control Logic: Pre-programmed drive control algorithms (V/f, Sensorless Vector, Direct Torque Control) - Data Processing Speed: ≤1ms (for real-time current/voltage sampling) - Parameter Storage: 1000+ configurable drive parameters (non-volatile memory, retains data after power-off)	Enables precise drive control (e.g., ±0.01% speed accuracy for Sensorless Vector mode)
  Communication Protocols	Built-in: PROFINET IRT, Ethernet/IP, Modbus TCP; Optional: PROFIBUS DP, DeviceNet (via SDCS-COM-xx adapters) - Baud Rate: 10/100/1000 Mbps (Ethernet-based protocols); ≤12 Mbps (PROFIBUS DP) - Cycle Time: ≤1ms (PROFINET IRT, for real-time control)	Seamless integration with ABB AC800M PLCs, Siemens S7 PLCs, or Rockwell SCADA systems
  I/O Signals	- Digital Inputs: 8× optically isolated (24V DC, 0.1A max per channel) - Digital Outputs: 4× relay outputs (2A AC 250V / 2A DC 24V) + 4× transistor outputs (0.5A DC 24V) - Analog Inputs: 2× differential (4~20mA DC, 12-bit resolution) - Analog Outputs: 2× (4~20mA DC, 12-bit resolution)	Supports local control (e.g., run/stop via digital inputs) and analog setpoints (e.g., speed reference via 4~20mA)
  Fault Detection & Diagnostics	- Fault Monitoring: 500+ drive fault codes (overcurrent, overvoltage, IGBT failure, temperature) - Diagnostic Data: Real-time drive status (current, voltage, speed, temperature) + historical fault logs (last 100 faults with timestamps) - Alarm Outputs: 2× dedicated relay outputs for critical faults	Enables predictive maintenance (e.g., alerting to rising IGBT temperatures before failure)
  Isolation Level	- Power-to-signal: 2kVrms (1min dielectric test) - Signal-to-communication: 1kVrms (1min dielectric test) - I/O-to-ground: 500Vrms (1min dielectric test)	Prevents ground loops and EMI interference from high-power drive circuits

• Mechanical Specifications:
  • Housing Material: Aluminum alloy (heat dissipation + electromagnetic shielding); Flame-retardant plastic connectors (UL94 V-0)
  • Dimensions (W×H×D): 120mm × 180mm × 40mm (drive slot-mounted; fits ACS880 drive controller bays)
  • Mounting: Hot-swappable (no drive shutdown required for replacement); Secure via 2 locking screws (compatible with ACS880 drive chassis)

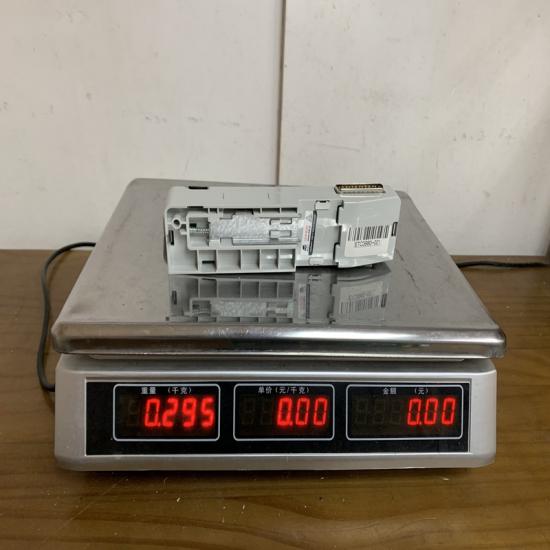

  • Weight: Approximately 450g
  • Connectors: 1× 50-pin D-sub (power/I/O), 2× RJ45 (Ethernet/PROFINET), 1× USB Type-C (parameter configuration/firmware update)
  • LED Indicators:
    • Power (PWR): Green (24V DC normal); Red (power fault)
    • Communication (COM): Green (Ethernet/PROFINET normal); Flashing green (data transmission); Red (communication fault)
    • Drive Status (DRV): Green (drive ready); Yellow (drive running); Red (drive fault)
    • I/O (IO): Green (I/O signals normal); Red (I/O fault)
• Environmental Ratings:
  • Operating Temperature Range: -10℃~+60℃ (-13℉~140℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃; suitable for heavy-industry environments)
  • Vibration Resistance: 5~500Hz, 1g acceleration (IEC 60068-2-6; No data loss or control deviation)
  • Shock Resistance: 20g acceleration (11ms duration, IEC 60068-2-27; Maintains communication and control)
  • EMC Immunity: Complies with IEC 61000-4-2 (ESD: ±15kV air discharge); IEC 61000-4-4 (EFT: ±4kV); IEC 61000-4-6 (RS: 10V/m) | Resists noise from high-power drive circuits and industrial grids |
• Compliance Standards: IEC 61131-3 (industrial control programming), EN 61000-6-2 (EMC immunity), UL 508C (industrial safety), CE, RoHS, IEC 61508 (SIL 2 capable for safety-related drive control loops)

2. Key Features

• ACS880 Drive Exclusive Integration: Pre-configured to recognize ABB ACS880 drives (medium/high-power) automatically—no custom programming required for basic control (speed/torque regulation); Reduces drive setup time by 70% compared to generic controller modules.
• Multi-Protocol Industrial Communication: Built-in PROFINET IRT, Ethernet/IP, and Modbus TCP support seamless integration with diverse upper-level systems (e.g., ABB AC800M PLCs via PROFINET, Rockwell SCADA via Ethernet/IP)—Enables real-time drive data exchange (cycle time ≤1ms) for centralized production control.
• Hot-Swappable Design: Can be replaced without shutting down the ACS880 drive (≤30s swap time)—Eliminates unplanned downtime in 24/7 heavy-industry processes (e.g., steel rolling mills, mining conveyors) where drive shutdowns cost thousands per minute.
• Advanced Fault Diagnostics: 500+ fault codes and historical fault logs (100 events) with timestamps—Enables root-cause analysis (e.g., identifying repeated overcurrent from a jammed conveyor) and predictive maintenance (e.g., alerting to declining cooling fan performance).
• High-Precision I/O & Control: 12-bit resolution analog I/O and optically isolated digital I/O ensure accurate signal processing—Supports local control (e.g., emergency stop via digital input) and analog setpoints (e.g., torque reference via 4~20mA) for flexible operation.
• SIL 2 Safety Compliance: Meets IEC 61508 SIL 2 requirements for safety-related drive control loops—Suitable for high-risk heavy-industry applications (e.g., marine propulsion, power plant auxiliaries) where safety-critical control (e.g., emergency torque cutoff) is mandatory.
• EMI Shielding & Rugged Construction: Aluminum alloy housing provides electromagnetic shielding (reduces interference from high-power drive circuits) and mechanical durability—Withstands harsh industrial environments (vibration, dust, temperature fluctuations) common in steel, mining, and marine sectors.

3. Application Fields

• Heavy Industry Drive Control: Primary application—control of ABB ACS880 high-power drives:
  • Steel Mills: Controls ACS880 medium-voltage drives (100kW~1MW) for steel rolling mills; Uses PROFINET IRT to sync drive speed with rolling mill PLCs (cycle time ≤1ms), ensuring uniform steel strip thickness; Fault diagnostics alert to overcurrent from strip jams, preventing drive damage.
  • Mining Conveyors: Manages ACS880 low-voltage drives (50kW~200kW) for long-distance ore conveyors; Hot-swappable design allows controller replacement without stopping the conveyor (avoids 2+ hours of downtime); Analog inputs receive load signals from conveyor weight sensors to adjust torque, reducing energy use by 15%.
• Marine & Offshore Propulsion: Control of ACS880 marine drives:
  • Ship Propulsion Systems: Controls ACS880 marine drives (200kW~500kW) for ship auxiliary propulsion (e.g., tugboat thrusters); SIL 2 compliance ensures emergency torque cutoff for safety; Ethernet/IP communication syncs with ship’s navigation system to adjust thrust based on sea conditions.
  • Offshore Platform Cranes: Manages ACS880 drives (100kW~300kW) for offshore crane hoists; Fault diagnostics monitor crane load (via analog inputs from load cells) and alert to overtorque (preventing crane overload); Rugged construction withstands saltwater humidity and vibration.
• Power Generation Auxiliaries: Control of ACS880 drives in power plants:
  • Thermal Power Plant Fans/Pumps: Controls ACS880 drives (150kW~400kW) for boiler feedwater pumps and induced draft fans; Modbus TCP connects to plant DCS to adjust pump/fan speed based on boiler load, reducing energy use by 25% vs. fixed-speed operation; Fault logs track temperature trends to predict IGBT maintenance.
  • Renewable Energy (Wind/Solar): Manages ACS880 drives (50kW~150kW) for wind turbine pitch control or solar tracker drives; PROFINET communication syncs with renewable energy SCADA to optimize pitch angle/tracker position; Isolation protection prevents grid voltage spikes from damaging the controller.
• Industrial Machinery & Processing: Control of ACS880 drives for heavy machinery:
  • Cement Kiln Drives: Controls ACS880 medium-voltage drives (200kW~600kW) for cement kiln rotation; Analog inputs receive temperature signals from kiln sensors to adjust rotation speed (slower for high temperature, faster for low), ensuring uniform cement clinker quality; SIL 2 compliance provides emergency shutdown for safety.
  • Paper Mill Calender Rolls: Manages ACS880 drives (100kW~300kW) for paper calender rolls; High-precision analog outputs (12-bit resolution) control roll torque to achieve uniform paper thickness; Communication via Ethernet/IP with mill SCADA enables remote parameter adjustment, reducing operator intervention.

4. Precautions

• System Compatibility (Critical): Use exclusively with ABB ACS880 series drives—Never install in non-ABB drives (e.g., Siemens SINAMICS, Rockwell PowerFlex); Incompatible drives will not recognize the module, causing communication failures or drive faults. Verify drive model (ACS880-01/04) against module specifications.
• Installation & Hot-Swapping:
  • Power Safety During Hot-Swap: While the module is hot-swappable, wear insulated gloves (1000V-rated) and use insulated tools—The 24V DC power connector carries live voltage; Accidental shorting can damage the drive’s internal power supply.
  • Connector Alignment: Align the module’s connectors with the ACS880 drive’s slot correctly before inserting—Misalignment bends connector pins, causing permanent damage; Use the locking screws to secure the module (torque to 0.5 N·m) to prevent vibration-induced disconnection.
• Communication Configuration:
  • Unique Network Addresses: Assign unique PROFINET/Ethernet/IP addresses to each module on the same network—Duplicate addresses cause communication collisions (e.g., garbled speed commands); Use ABB Drive composer software to configure addresses and test communication links.
  • Protocol Consistency: Ensure upper-level systems (PLCs/SCADA) use the same protocol as the module (e.g., PROFINET for AC800M, Ethernet/IP for Rockwell)—Protocol mismatches (e.g., using Modbus TCP with a PROFINET-only PLC) prevent data exchange; Install optional adapters (SDCS-COM-xx) for non-native protocols.
• Fault Handling & Maintenance:
  • Fault Reset Procedure: After a drive fault (red DRV LED), first view the fault code via the module’s LED or Drive composer—Resolve the root cause (e.g., clear a jammed conveyor for overcurrent, replace a faulty cooling fan for over-temperature) before resetting; Resetting without fault correction causes repeated failures and accelerates module wear.
  • Firmware Updates: Update module firmware only with ABB-approved versions (via USB Type-C or drive Ethernet)—Unauthorized firmware may disable safety features (e.g., SIL 2 fault cutoff) or break communication with the drive; Backup parameters before updating to avoid data loss.
• Environmental Limitations:
  • Temperature & Humidity: Do not operate above +60℃ or in condensing humidity—High temperatures (>60℃) degrade the module’s processor performance (slow data processing), while condensation causes connector corrosion (intermittent I/O signals); Install the drive in air-conditioned control rooms (20℃~30℃ recommended) for critical applications.
  • Dust & Contamination: Keep the module’s connectors free of dust, oil, or metal shavings—Contamination causes high contact resistance (signal dropouts) or short circuits; Use compressed air (0.5MPa) to clean connectors quarterly in dusty environments (e.g., steel mills, mining sites).
• Safety Compliance:
  • SIL 2 Configuration: For SIL 2 applications, configure the module via ABB Safety composer software—Incorrect configuration (e.g., disabling fault alarms) invalidates SIL 2 compliance, increasing safety risks; Have a certified safety engineer verify the configuration before commissioning.
  • Emergency Stop Wiring: Connect the module’s dedicated emergency stop digital input to the plant’s safety loop—Never use non-safety-rated I/O for emergency stop; Improper wiring prevents emergency torque cutoff, posing risks to personnel and equipment.
•
•
