ABB RTAC-03 pulse encoder interface

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

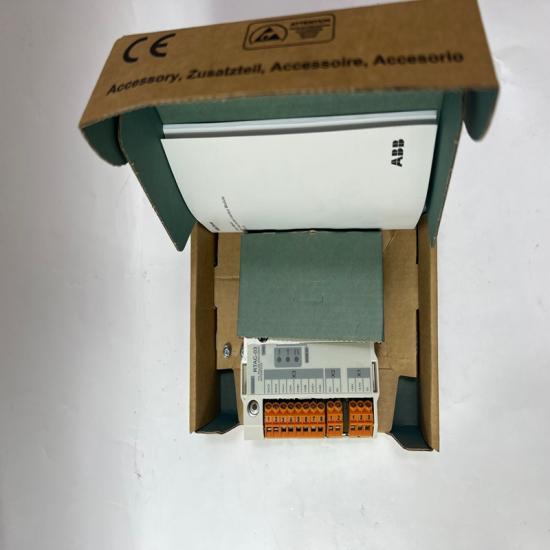

ABB RTAC-03 Pulse Encoder Interface

1. Product Description

The ABB RTAC-03 is a TTL (+5V) pulse encoder interface module designed for integration with ABB variable frequency drives (VFDs) such as the ACS310, ACS510, ACS530, ACS550, and ACS580 series. It facilitates precise speed and position feedback from encoders to the drive, enabling advanced motor control in industrial automation applications .

Key features include:

• TTL-compatible input (+5V logic level) for incremental encoders

• Plug-and-play installation with ABB drives

• Supports high-resolution feedback for accurate motion control

• Compact design for easy integration into drive systems

2. Technical Specifications

3. Key Features & Advantages

✅ Precision Feedback

• Enables closed-loop control for applications requiring accurate speed/position regulation .

✅ Broad Drive Compatibility

• Works seamlessly with multiple ABB drive series, including pump/fan-optimized models (e.g., ACS310) and general-purpose drives (e.g., ACS580).

✅ Simplified Integration

• Pre-configured for ABB drives, reducing setup time .

✅ Industrial Reliability

• Designed for harsh environments with robust electrical noise immunity .

4. Typical Applications

1. Precision Motion Control

   • CNC machinery, conveyors, and positioning systems.

2. Pump/Fan Control

   • Enhances efficiency in ACS310/ACS510-driven systems .

3. Automated Manufacturing

   • Synchronizes motor speed with process requirements.

5. Installation & Safety Notes

⚠ Safety Precautions

• Disconnect power before installation .

• Ensure proper grounding to avoid noise interference.

⚠ Configuration

• Refer to the drive-specific manual for parameter settings (e.g., encoder PPR) .
