ABB RLM01 Redundant Link Module

Product Overview

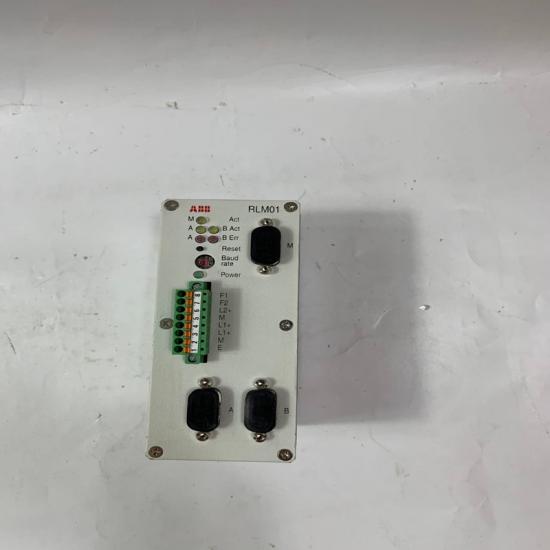

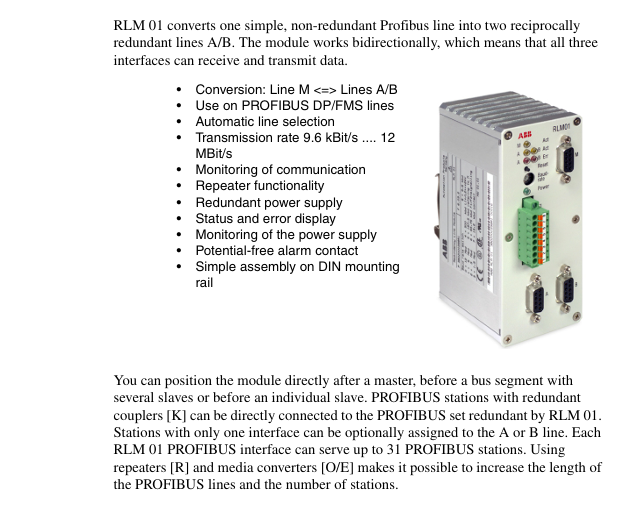

The ABB RLM01 is a high-performance PROFIBUS redundancy link module designed for critical industrial automation applications. It serves as an active switch that converts between redundant and non-redundant PROFIBUS DP networks, ensuring continuous communication even during network disruptions .

Technical Specifications

General Parameters

• Brand: ABB

• Model: RLM01 (alternative part number: 3BDZ000399R1)

• Type: PROFIBUS redundancy link module

• Dimensions: 134×56×70 mm (H×W×D)

• Weight: 330g (0.6kg in some sources)

• Protection Rating: IP20

• Mounting: 35mm DIN rail

Electrical Characteristics

• Operating Voltage: 24VDC (+20..+33V range)

• Current Consumption: 150mA typical at 24V

• Power Consumption: Approx. 3.6W

• Connection: 8-pin terminal strip (0.14-1.5mm² wire)

Communication Interfaces

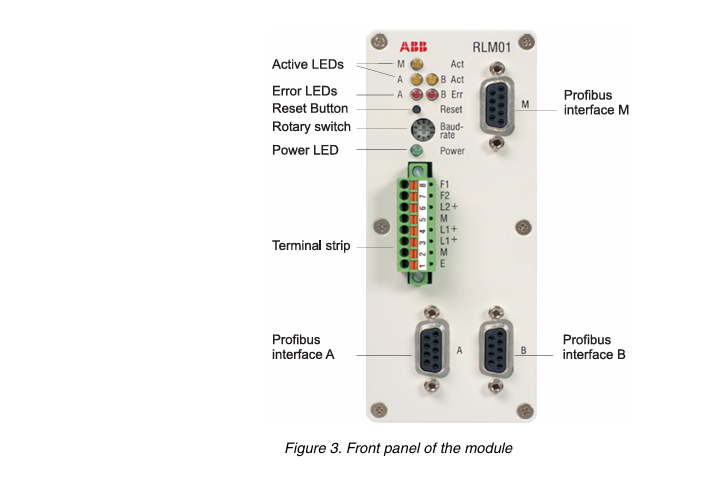

• PROFIBUS Ports: 3 (A, B, and M)

• Connector Type: 9-pin Sub-D

• Electrical Isolation: 500Veff functional isolation

• Supported Rates: 9.6Kbps to 12Mbps

• Maximum Stations: 31 PROFIBUS clients per interface

Environmental Conditions

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -30°C to +85°C

• Humidity: Max 75% non-condensing

Certifications

• Safety: CE, UL, CSA

• Marine: Germanischer Lloyd (Categories A-D)

Functional Features

1. Redundancy Conversion:

   • Converts single PROFIBUS DP to redundant dual links (A/B) and vice versa

   • Transparent operation without register byte limitations

2. Signal Processing:

   • Amplifies signal shape and amplitude

   • Includes repeater functionality

3. Monitoring & Diagnostics:

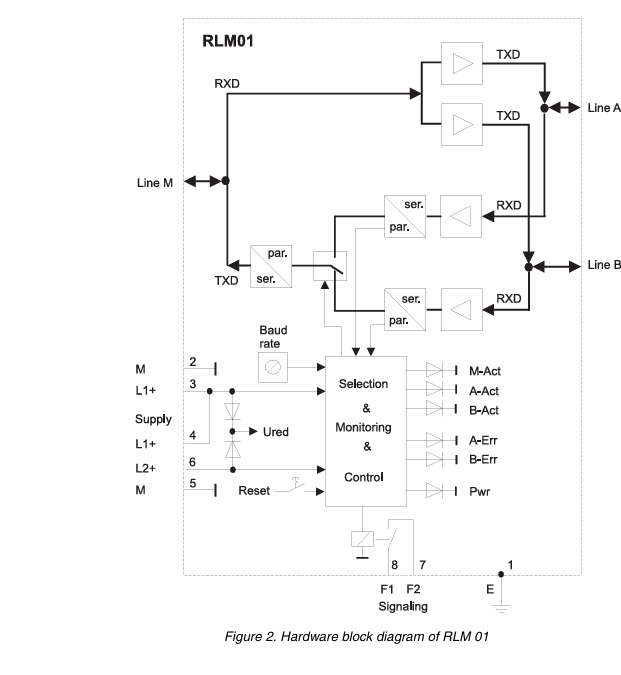

   • Real-time monitoring of all three links (A, B, M)

   • Front-panel LED indicators for status/errors

   • Potential-free alarm contact (max 1A @ 60VDC)

4. Power Management:

   • Supports redundant 24VDC power inputs

   • Automatic switchover during power failure

5. System Compatibility:

   • Works with ABB AC800M PM865/PM856 systems

   • Compatible with non-ABB systems (e.g., Siemens)

Application Scenarios

Typical Use Cases

1. Process Industries: Oil & gas refineries, chemical plants

2. Power Systems: Generation and distribution networks

3. Water Treatment: Plant automation systems

4. Manufacturing: Production line control

5. Transportation: Rail signaling systems

Configuration Examples

• Connecting non-redundant AC800F FI830F to redundant DP network

• Integrating single-DP devices (e.g., drives) into redundant systems

• Creating mixed networks with both redundant and non-redundant segments

Installation and Operation Notes

Wiring Guidelines

• Use shielded PROFIBUS cables with single-end grounding

• Maintain separation between communication and power cables

• For outdoor runs, use fiber optic media converters

Power Considerations

• External protection (fuses 1.6A-10A) recommended per UL/CSA

• Ensure proper ventilation for heat dissipation

Maintenance

• Monitor LED indicators for fault detection

• Regularly check terminal connections

• Avoid operating beyond specified temperature limits

Technical Comparison

Alternative Models

• RLM02

• CI871

• YPK112A

Key Differentiators

• Unlike Y-Link (3-module combination), RLM01 is a single unit

• No configuration required in control software

• Transparent operation preserves original PROFIBUS addressing
