ABB REF615 HBFJAEAGAAC6BAA11G Protection Relay

• • • • • • • • • • • • • • ABB REF615 HBFJAEAGAAC6BAA11G Protection Relay (Relion 615 Series Feeder Protection Relay)







                            ---

                            Product Description

                            The ABB REF615 (HBFJAEAGAAC6BAA11G) is a numerical feeder protection and control relay from ABB’s Relion® 615 series.

                            It is used in medium-voltage distribution systems to provide real-time protection, control, measurement, and monitoring of electrical feeders (cables/lines).

                            This is a high-performance protection IED (Intelligent Electronic Device), widely used in substations and industrial power systems.

                            ---

                            Key Specifications

                            • Brand: ABB
                            • Series: Relion 615
                            • Model: REF615
                            • Order Code: HBFJAEAGAAC6BAA11G
                            • Type: Feeder protection & control relay (numerical relay)
                            • Rated Voltage: typically 24–250 V DC / AC auxiliary supply (variant dependent)
                            • Communication: IEC 61850, Modbus, DNP3 (configuration dependent)
                            • Mounting: Panel / rack (withdrawable design)
                            • Display: Local HMI graphical display with keypad
                            • Functions: Protection + control + metering + event recording

                            ---

                            What it actually does

                            The REF615 protects and controls power feeders (cables and overhead lines).

                            It performs:

                            • Overcurrent protection (phase faults)
                            • Earth fault / ground fault protection
                            • Short-circuit protection
                            • Thermal overload protection
                            • Breaker control (open/close commands)
                            • Fault recording & event logging
                            • Power system measurement (current, voltage, frequency)

                            ---

                            System Role (Simple)

                            Power line / feeder
                            → CTs / VTs measure current & voltage
                            → ABB REF615 relay (this device)
                            → analyzes fault conditions
                            → sends trip signal
                            → circuit breaker opens

                            ---

                            Key Features

                            • Advanced numerical protection algorithms
                            • Supports directional and non-directional protection
                            • IEC 61850 communication for digital substations
                            • High-speed fault detection and tripping
                            • Built-in HMI display for local operation
                            • Configurable logic using ABB PCM600 software
                            • Supports redundancy and SCADA integration

                            ---

                            Typical Applications

                            • Medium-voltage distribution substations
                            • Industrial power distribution systems
                            • Cable and overhead feeder protection
                            • Utility grid protection systems
                            • Renewable energy grid connection points
                            • Industrial plant electrical networks

                            ---

                            Advantages

                            • Very fast fault detection → improves system safety
                            • Reduces damage to electrical equipment
                            • Integrates protection + control + monitoring in one device
                            • Supports modern digital substation communication (IEC 61850)
                            • Flexible configuration for different grid types
                            • High reliability for critical power systems

                            ---

                            Important Notes

                            • Not PLC CPU ❌
                            • Not I/O module ❌
                            • Not HMI operator panel ❌ (it only has local control display)
                            • It is a protection relay / IED (Intelligent Electronic Device) ✔

                            ---

                            Precautions

                            • Requires correct configuration via ABB PCM600 software
                            • Incorrect settings can cause false tripping or failure to trip
                            • Must be coordinated with other protection relays in system
                            • Installation must follow electrical protection engineering standards
                            • Used in medium/high voltage systems → only qualified engineers should configure

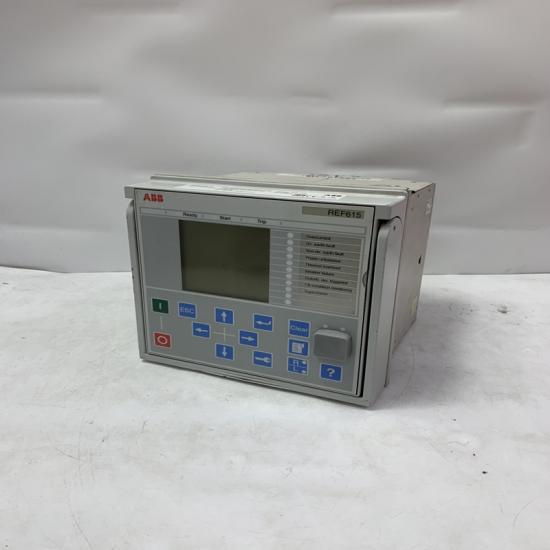

The structure and details of the product：
