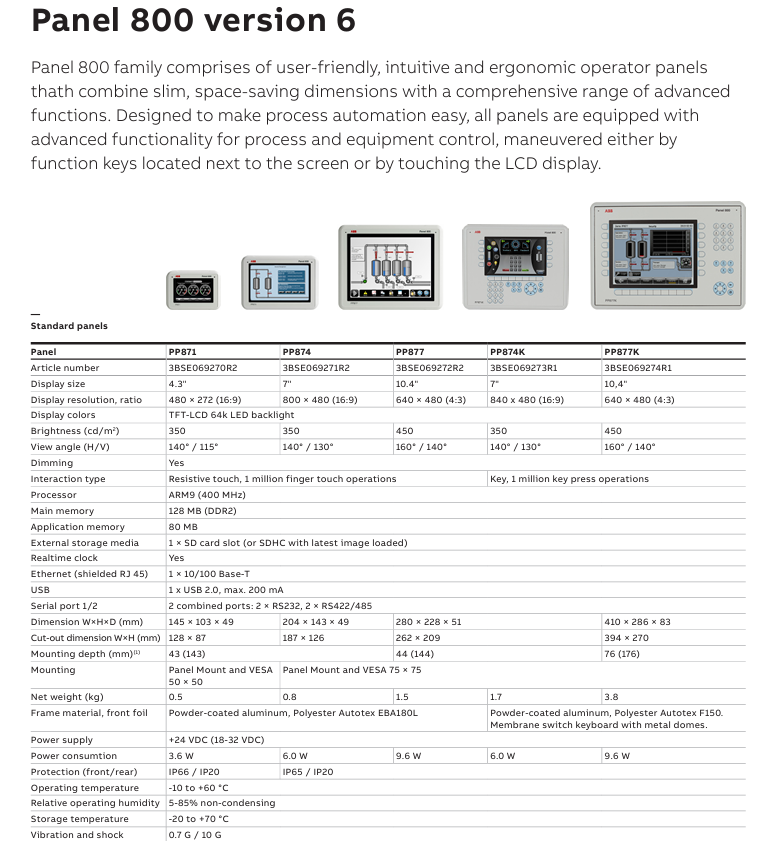

ABB PP877 (3BSE069272R2) Touchscreen Control Panel

1. Key Parameters

• Product Model: PP877
• Order Code: 3BSE069272R2
• Product Series: ABB PP Series Advanced Industrial Touchscreens (High-Performance HMI, Smart Manufacturing Enabled)
• Core Function: Provides advanced HMI capabilities for medium to large-scale ABB automation systems; visualizes complex multi-panel process data with high resolution; enables collaborative operation via multi-touch; supports edge computing and basic analytics; integrates seamlessly with 800xA Suite and ABB Ability™ platforms
• Display & Touch Specifications:

  Parameter	Details	Performance Metrics
  Display Characteristics	- Screen Size: 21.5-inch (diagonal), 16:9 widescreen aspect ratio - Resolution: 1920×1080 pixels (Full HD), anti-glare/anti-reflective/anti-fingerprint triple coating - Brightness: 500 cd/m² (auto-adjusting with light sensor) - Contrast Ratio: 1500:1 (exceptional clarity for fine details) - Backlight Life: ≥60,000 hours (LED, MTBF)	Full HD resolution on a 21.5-inch screen enables simultaneous display of 8+ process panels; triple coating ensures readability in all lighting conditions
  Touch Interface	- Touch Technology: Projected Capacitive (PCAP), multi-touch (10 points) - Touch Accuracy: ±1mm (full screen) - Response Time: <70ms (instantaneous feedback) - Durability: ≥8 million touches per point (Corning Gorilla Glass 5) - Gloved Operation: Supported (all industrial glove types, including thick insulation)	10-point multi-touch enables collaborative operation and advanced gestures (zoom, rotate, swipe); Gorilla Glass 5 resists scratches and impacts from tools
  Processing & Memory	- Processor: Intel Core i5-1135G7 (4-core, 2.4GHz, up to 4.2GHz Turbo) - RAM: 16GB DDR4 (expandable to 32GB) - Storage: 256GB industrial-grade SSD (shock/vibration-resistant) + 1TB HDD (optional) - Operating System: Windows 10 IoT Enterprise LTSC 2021 (ABB-optimized)	Powerful i5 processor handles multi-panel rendering, edge analytics, and cloud connectivity simultaneously; SSD storage ensures fast boot times (<25s)
  Connectivity & Compatibility	- Network Interfaces: 2×Gigabit Ethernet (RJ45, 10/100/1000Mbps) with redundancy; 1×10G SFP+ optical port - Wireless: Wi-Fi 6 (802.11ax) + Bluetooth 5.2 (industrial-grade) - Serial Ports: 3×RS232/485 (isolated, configurable) - USB Ports: 4×USB 3.2 (2 front, 2 rear); 1×USB-C (Thunderbolt 4) - Video Output: 2×HDMI 2.1 (supports 4K external displays) - ABB Compatibility: 800xA V7.1+, AC800M V6.1+, S800 I/O V6.2+, ABB Ability™ Edge	10G optical port enables high-speed data transfer with 800xA servers; Wi-Fi 6 supports flexible installation; redundancy ensures 99.999% network availability

• Mechanical Specifications:
  • Dimensions: 520mm (W) × 320mm (H) × 60mm (D) (panel-mount design)
  • Mounting Type: Panel mount (IP66 front); VESA 200×200mm (desktop/wall/motorized mount options)
  • Housing Material: 316L stainless steel front bezel (corrosion-resistant); aluminum-magnesium alloy rear housing (UL 94 V0)
  • Weight: Approximately 6.2kg
  • IP Rating: IP66 (front panel, dust-tight and high-pressure water-resistant); IP20 (rear connections)
• Environmental Ratings:
  • Operating Temperature Range: -15℃~+65℃ (5℉~149℉)
  • Storage Temperature Range: -30℃~+75℃ (-22℉~167℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 50℃)
  • Vibration Resistance: 5~500Hz, 1.5g acceleration (IEC 60068-2-6; no performance degradation)
  • Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27; no structural damage)
• Compliance Standards: CE, RoHS, ABB 800xA V7.1+ Compatibility, IEC 61010-1, IEC 61326-3-1, UL 508, ATEX Zone 2/22, IECEx, ISO 9241-410 (ergonomic design)

2. Key Features

• 21.5-Inch Full HD Display: 1920×1080 resolution on a large-format screen—enables simultaneous visualization of 8+ process panels, real-time alarm logs, and trend graphs without scrolling, ideal for medium to large-scale operations like regional manufacturing plants.
• 10-Point Multi-Touch & Gorilla Glass 5: Supports collaborative operation (multiple operators interacting simultaneously) and advanced gestures (pinch-to-zoom, drag-and-drop parameters)—critical for troubleshooting complex process upsets; ultra-durable glass resists heavy impacts and aggressive cleaning.
• Intel Core i5 Processing: Powerful 4-core processor handles multi-panel rendering, edge analytics, and ABB Ability™ cloud connectivity simultaneously—enables running basic machine learning algorithms for predictive maintenance directly on the panel.
• 10G Optical & Redundant Connectivity: 10G SFP+ port enables high-speed data transfer with 800xA servers; dual redundant Ethernet ensures uninterrupted communication, critical for safety-critical applications (e.g., chemical batch processing, water treatment).
• IP66 & 316L Stainless Steel Construction: Dust-tight, high-pressure water-resistant front with corrosion-resistant stainless steel—survives harsh environments: offshore platforms (salt spray), food processing (caustic washdowns), and chemical plants (aggressive vapors).
• Wireless Integration (Wi-Fi 6): Supports flexible installation in locations where wired networks are impractical (e.g., mobile control stations, retrofitted facilities); secure Bluetooth 5.2 enables connection to wireless peripherals.
• Edge Computing Capabilities: Local data processing and analytics reduce latency—enables real-time decision-making for time-sensitive processes (e.g., quality control in manufacturing, critical parameter monitoring in utilities).

3. Application Fields

• Medium to Large-Scale 800xA DCS Systems: Primary application for advanced HMI performance:
  • Regional Chemical Processing Plants: Displays multi-reactor process data, batch recipes, and quality control metrics—10-point touch allows operators and engineers to collaborate on process optimization, reducing downtime by 25%.
  • Food & Beverage Production Hubs: Integrates with 800xA V7.1+ to manage mixing, cooking, and packaging lines across multiple production halls—IP66 front withstands high-pressure washdowns, while Wi-Fi 6 enables flexible placement near production lines.
• Manufacturing & Assembly Operations: Controlling complex production processes:
  • Automotive Component Manufacturing: Monitors robotic assembly cells, quality inspection stations, and material handling systems—10G optical connection ensures real-time data synchronization with 800xA, while edge analytics identify production bottlenecks.
  • Electronics Manufacturing Facilities: Controls PCB assembly lines and test equipment—high-contrast display ensures clear visibility of component placement data, reducing assembly errors by 30%.
• Energy & Utilities: Managing critical infrastructure:
  • Combined Heat and Power (CHP) Plants: Monitors turbine performance, heat exchangers, and electrical distribution—redundant Ethernet ensures continuous access to critical data, while edge computing enables real-time efficiency optimization.
  • Water Treatment Facilities: Visualizes filtration, disinfection, and pumping systems across large treatment plants—21.5-inch screen displays 8+ process parameters simultaneously, simplifying operator oversight.
• Hazardous & Harsh Environments: Withstanding challenging conditions:
  • Offshore Platform Support Facilities: Installed in near-zone areas to monitor onshore supply systems—316L stainless steel resists saltwater corrosion, while ATEX certification ensures safe operation in potentially explosive atmospheres.
  • Mining Processing Plants: Operates in dusty, high-vibration environments to control crushing, grinding, and beneficiation processes—extended temperature range handles extreme seasonal variations in remote locations.

4. Precautions

• 800xA V7.1+ Requirement (Critical): Requires 800xA V7.1 or later—older versions do not support 10G optical connectivity, edge analytics features, or Wi-Fi integration, resulting in limited functionality; verify compatibility using ABB’s Enterprise Compatibility Matrix.
• Installation & Wiring Safety:
  • Panel Mounting: Use ABB’s precision mounting kit (part no. 3BSE069273R1) and torque bezel screws to 3Nm—improper alignment compromises IP66 sealing, allowing water ingress in high-pressure washdowns; perform air pressure and water spray tests after installation.
  • Power Supply: Use 24V DC ±10% power with 3A minimum current (isolated, Class 2)—connect to separate UPS from high-power equipment to prevent voltage sag during motor starts; never use unregulated power supplies.
  • Network Security: Implement ABB-recommended firewall rules for 10G optical port—restrict TSN traffic to authorized 800xA servers only; enable encryption for wireless communication with ABB Ability™ cloud platforms.
• Operation & Maintenance:
  • Touch Screen Care: Clean with ABB-approved neutral detergent (part no. 1SFA899001R1000) and microfiber cloth—avoid abrasive materials or solvents (damage anti-glare coating); for hazardous areas, use explosion-proof cleaning tools.
  • 定期检查: Perform bi-monthly inspections for:
    • Corrosion on stainless steel bezel (especially in chloride-rich environments)
    • Loose SFP+ transceivers or USB-C connectors (vibration-induced)
    • Backlight uniformity (replace if any zone is >10% dimmer than others)
      Calibrate touch interface quarterly using 800xA’s calibration tool to maintain ±1mm accuracy.
  • Software Management: Apply only ABB-signed firmware updates via 800xA Engineering—third-party updates void ATEX certification and may introduce security vulnerabilities; schedule updates during planned shutdowns.
• Environmental Limitations:
  • Temperature Extremes: Avoid continuous operation at -15℃~-10℃ or +60℃~+65℃—reduces backlight life by 30%; use thermal management systems in these ranges for maximum longevity.
  • Chemical Exposure: 316L stainless steel resists most industrial chemicals but not hydrofluoric acid or molten metals—use specialized enclosures in these environments; check bezel for pitting monthly in chemical plants.
• Replacement & Spare Parts:
  • Genuine ABB Components: Use only genuine PP877 (3BSE069272R2) units and ABB-certified accessories—non-genuine panels lack 800xA optimization, hazardous area certification, and may cause system instability.

The structure and details of the product：
