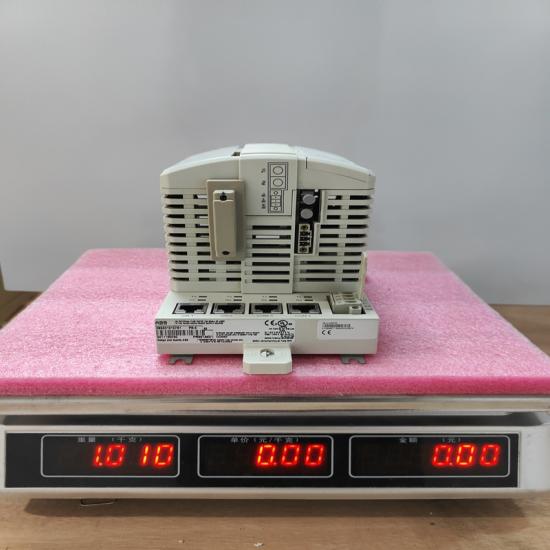

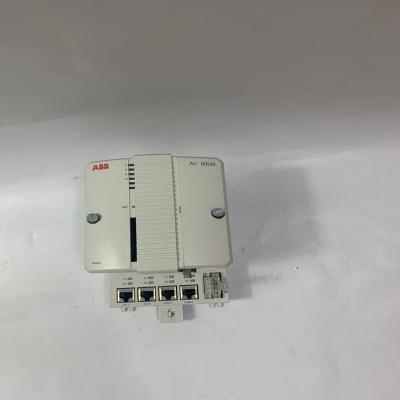

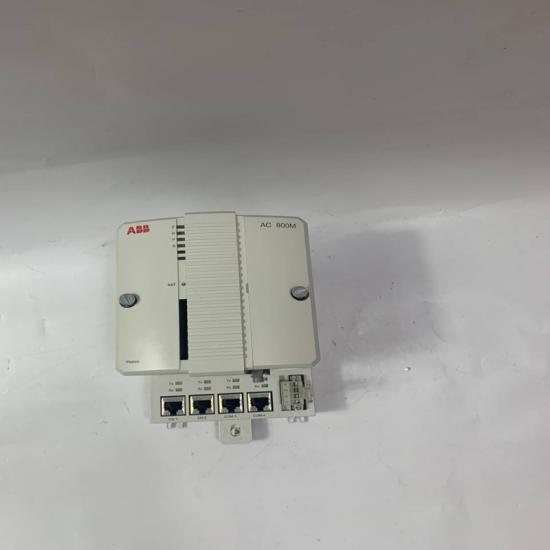

ABB PM860AK01 (Order Code: 3BSE066495R1) Processor Unit

1. Key Parameters

• Product Model: PM860AK01
• Order Code/Part Number: 3BSE066495R1 (unique identifier for procurement and system compatibility verification)
• Product Series: AC 800M DCS (ABB’s modular distributed control system for industrial automation)
• Core Function: Centralized control logic execution, real-time I/O data processing, and communication with field devices and upper-level automation systems
• Processor & Performance:
  • CPU: 32-bit RISC processor (800MHz clock speed)
  • Control Cycle: Configurable from 1ms to 1000ms (deterministic, jitter ≤100µs)
  • Program Memory: 8MB Flash (non-volatile; stores control programs, configuration data, and fault logs)
  • Data Memory: 4MB RAM (for real-time data processing and temporary variables)
  • Floating-Point Performance: 100 MFLOPS (supports complex control algorithms: PID, cascade control, sequential logic)
• I/O & Expansion:
  • Backplane Interface: ABB proprietary PRONETA bus (100Mbps full-duplex)
  • Maximum I/O Modules per Rack: Up to 20 AC 800M-compatible I/O modules (e.g., DI/DO, AI/AO, specialty modules)
  • Maximum I/O Capacity: Up to 4096 digital I/O points or 1024 analog I/O points (via single rack; expandable with additional racks)
• Communication Interfaces:
  • Ethernet: 2× 10/100BASE-T ports (supports Modbus-TCP, Profinet, IEC 61850 for SCADA/HMI integration)
  • Serial: 1× RS-485 port (Modbus RTU for local field device communication)
  • Optional: Profibus-DP master module (via expansion slot for third-party device connectivity)
• Power Supply:
  • Input Voltage: 24V DC (±10% tolerance)
  • Power Consumption: Typical ≤12W; Maximum ≤15W
• Mechanical Specifications:
  • Dimensions (W×H×D): 25mm × 100mm × 160mm (1-module width, fits AC 800M standard I/O racks)
  • Mounting: Rack-mounted (compatible with AC 800M rack enclosures)
  • Weight: Approximately 200g
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27)
• Compliance Standards: IEC 61131-3 (industrial controller programming), IEC 61000-6-2 (EMC immunity), UL 508 (industrial control safety)

2. Key Features

• High-Speed Processing: 800MHz RISC processor delivers robust computing power for mid-to-large-scale control tasks, such as managing multi-loop PID control in chemical reactors or coordinating complex sequential logic in automotive assembly lines.
• Deterministic Control Cycles: Configurable 1ms control cycles with ≤100µs jitter ensure precise execution of time-critical control algorithms—essential for dynamic processes like turbine speed regulation or batch mixing.
• Scalable I/O Integration: PRONETA bus interface supports up to 20 I/O modules per rack, with expansion racks enabling larger I/O counts. Adapts to growing system needs (e.g., adding new production lines or sensors) without replacing the core processor.
• Dual Ethernet Ports: Two independent Ethernet interfaces enable redundant communication paths to SCADA systems, HMIs, or cloud platforms—enhancing reliability by avoiding single-point network failures.
• IEC 61131-3 Compatibility: Programmed via ABB’s Control Builder M software, supporting all IEC 61131-3 languages (Ladder Diagram, Function Block Diagram, Structured Text). Simplifies code development and allows reuse of standard automation libraries.
• Advanced Diagnostics: Monitors internal health (processor temperature, memory integrity) and external connections (I/O module communication, power supply status). Faults are logged with time stamps and transmitted to upper systems, enabling predictive maintenance and fast troubleshooting.
• Industrial Durability: Withstands extreme temperatures, vibration, and humidity—suitable for harsh environments like oil refineries, mining sites, and outdoor substations, ensuring reliable operation in challenging conditions.

3. Application Fields

• Process Industry: Controls continuous and batch processes in chemical, petrochemical, and pharmaceutical plants—managing reactors, distillation columns, and mixing systems to maintain precise temperature, pressure, and flow parameters.
• Power Generation: Manages auxiliary systems in thermal power plants, wind farms, and solar facilities—controlling boilers, pumps, and cooling systems to optimize energy production and ensure grid stability.
• Manufacturing Automation: Coordinates production lines in automotive, electronics, and consumer goods manufacturing—synchronizing robotic arms, conveyor systems, and quality control sensors to maximize throughput and minimize defects.
• Water & Wastewater Treatment: Controls filtration, aeration, and pumping systems in municipal and industrial treatment plants—optimizing chemical dosing, water flow, and sludge handling to meet environmental regulations.
• Mining & Metals: Manages crusher operations, material handling conveyors, and smelting processes—withstanding dust, vibration, and high temperatures while ensuring efficient resource extraction and processing.
• Food & Beverage Production: Executes recipe-based control for mixing, heating, and packaging lines—maintaining food safety standards and product consistency in high-volume production environments.

4. Precautions

• System Compatibility: Use exclusively with ABB AC 800M I/O modules (e.g., BC810K02-eA DI/DO modules) and racks. Non-AC 800M components may cause communication failures or incorrect data processing.
• Power Supply Stability: Connect to a regulated 24V DC power supply with surge protection. Voltage fluctuations exceeding ±10% can corrupt program memory or trigger false fault alarms.
• Communication Network Setup: For Ethernet-based communication, use industrial-grade shielded Cat5e/Cat6 cables. Separate control network cables from high-power cables (≥30cm spacing) to minimize EMI interference.
• Firmware Updates: Update firmware only via ABB’s official Control Builder M software. Back up configuration data before updating—unauthorized firmware or incorrect updates may render the module inoperable.
• Environmental Protection: Install in a sealed, climate-controlled cabinet in harsh environments. For applications with corrosive gases (e.g., chemical plants) or high humidity (e.g., water treatment), use corrosion-resistant racks and ensure proper ventilation.
• Maintenance Safety: Disconnect power to the AC 800M rack before removing or installing the module. Capacitors in the power circuit may retain charge for up to 5 minutes—verify no residual voltage with a multimeter before handling.
• I/O Loading: Do not exceed the maximum I/O module count (20 per rack) or the PRONETA bus current rating. Overloading causes communication delays, data loss, or permanent module damage
