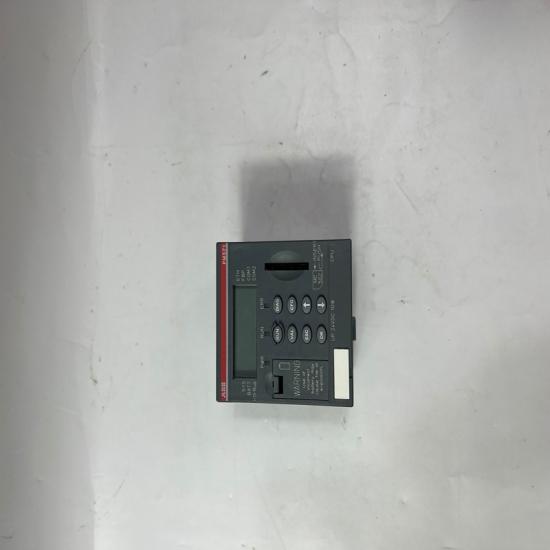

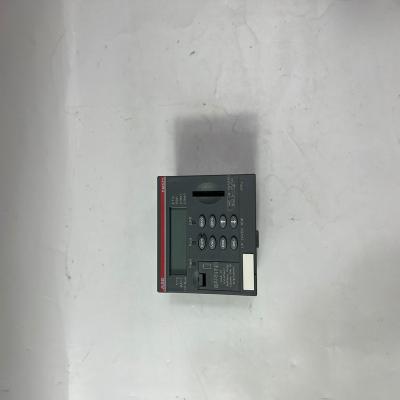

ABB PM571-ETH 1SAP130100R0170 Programmable Logic Controller

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

• 1. Product Overview

  The ABB PM571-ETH (Part No. 1SAP130100R0170) is a compact programmable logic controller from the ABB AC500 series. It features an integrated Ethernet interface and is designed for small to medium-sized automation systems. The controller provides reliable control performance, flexible communication, and scalable expansion options.

  ---

  2. Technical Specifications

  • Model: PM571-ETH

  • ABB Part Number: 1SAP130100R0170

  • Series: ABB AC500 PLC

  • CPU: High-performance 32-bit processor

  • Program Memory: Approx. 512 KB

  • Data Memory: Approx. 512 KB

  • Local I/O:

    • Digital Inputs: 16

    • Digital Outputs: 16

  • Power Supply: 24 V DC

  • Communication Interfaces:

    • 1 × Ethernet (RJ45, supporting TCP/IP, Modbus TCP, etc.)

    • 1 × Serial interface (for communication or commissioning)

  • Expandability: Supports AC500 I/O and communication expansion modules

  • Programming Software: Automation Builder (IEC 61131-3 compliant)

  • Programming Languages: LD, FBD, ST, IL, SFC

  • Mounting: DIN-rail mounting

  • Operating Temperature: 0 to +55 °C

  • Protection Class: IP20 (for control cabinet installation)

  ---

  3. Key Advantages & Features

  • Integrated Ethernet Communication – Enables easy networking with HMI, SCADA, and other automation devices.

  • Compact All-in-One Design – CPU, power supply, and local I/O integrated to save space and reduce cost.

  • Industrial Reliability – Designed for stable operation in continuous industrial environments.

  • Flexible Expansion – Easily expandable with AC500 series modules for different application scales.

  • IEC 61131-3 Programming – Standardized programming ensures easy development, maintenance, and scalability.

  ---

  4. Typical Applications

  The PM571-ETH PLC is widely used in:

  • Industrial automation systems

  • Machinery control (packaging machines, conveyors, assembly lines)

  • Water and wastewater treatment systems

  • Building automation and energy management

  • Auxiliary power and distribution automation

  • OEM equipment and system integration projects

  ---

  5. Installation & Usage Notes



  • Power Supply – Use a stable 24 V DC power supply with proper grounding.

  • Network Cabling – Use industrial-grade Ethernet cables and avoid routing near high-power lines.

  • Environment & Cooling – Install inside a well-ventilated control cabinet, away from heat and moisture.

  • Program Backup – Always back up PLC programs and parameters before commissioning or maintenance.

  • Module Compatibility – Use original AC500 expansion modules to ensure system reliability.

•
•
