ABB PM554-TP-ETH Logic Controller

•

• 1. Product Overview

  The ABB PM554‑TP‑ETH is a high‑performance logic controller used in industrial automation systems for sequence control, logic computation, timing/counter functions, data exchange, and communication. It features EtherNet connectivity, strong processing capability, rich I/O options, and flexible expandability, seamlessly integrating with ABB PLC, DCS, and HMI systems. It serves as a core control unit in complex automation environments.

  ---

  2. Main Technical Specifications (Typical)

  • Model: PM554‑TP‑ETH

  • Product Type: Logic Controller

  • Processor: High‑speed industrial CPU

  • Memory: High‑capacity Flash and RAM

  • I/O Interfaces: Digital DI/DO, Analog AI/AO (configuration dependent)

  • Communication Interfaces:

    • EtherNet for industrial Ethernet communication

    • RS‑485 serial communication

    • Optional Profibus / Modbus support

  • Programmable Languages: Ladder Logic (LD), Function Block Diagram (FBD), Structured Text (ST)

  • Scan Cycle Time: Fast response < 1 ms (varies with program size)

  • Program Storage: Non‑volatile data retention and power‑loss protection

  • Power Supply: DC 24 V (typical industrial control supply)

  • Operating Temperature: ‑20 ℃ to +60 ℃

  • Protection Class: IP20 (cabinet internal)

  • Mounting: DIN rail or modular slot mounting

  • Dimensions: Compact industrial design

  ---

  3. Advantages and Features

  • High Performance & Stability
    Industrial CPU provides fast computation, reliable execution, and stable control.

  • Flexible Expandability
    I/O modules, communication modules, and network expansion options are available.

  • Rich Communication Protocol Support
    Built‑in EtherNet and support for other industrial protocols make integration with PLC, HMI, SCADA, or DCS systems easy.

  • Easy Programming & Configuration
    Supports multiple standard industrial programming languages for ease of engineering and deployment.

  • Industrial‑Grade Design
    Designed to withstand temperature variations, vibration, and EMI typical in industrial environments.

  ---

  4. Applications

  • Industrial automation production line logic control

  • PLC processing and extension modules

  • Material handling, robot coordination, machine tool control

  • HVAC automation and building control systems

  • Process control and batch management systems

  • Logic processing in power distribution automation

  ---

  5. Precautions for Installation and Use

  • Verify correct power supply match: Ensure DC 24 V industrial power supply is correct before installation.

  • Secure wiring and grounding: Tight and reliable wiring and proper grounding are essential.

  • Avoid hot‑swapping modules under power: Removing/plugging modules with power applied can damage electronics.

  • Match communication configurations: Ensure EtherNet and serial network configurations align with upstream systems.

  • Environmental considerations: Avoid installation in very high humidity, dusty, or corrosive environments.

  • Recommend professional installation & commissioning: To ensure system performance and reliability.

•
•
•
•

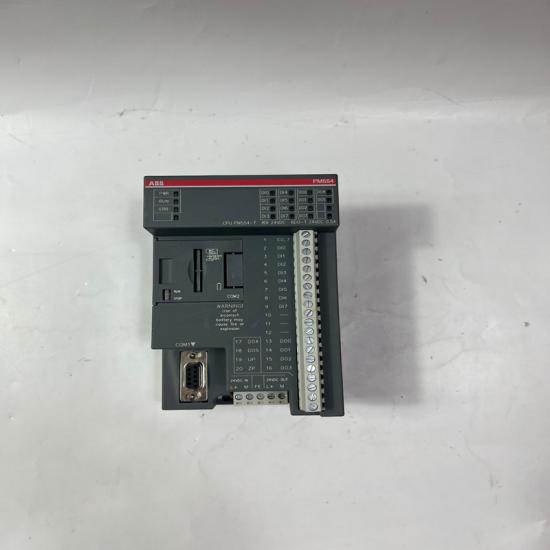

The structure and details of the product：
