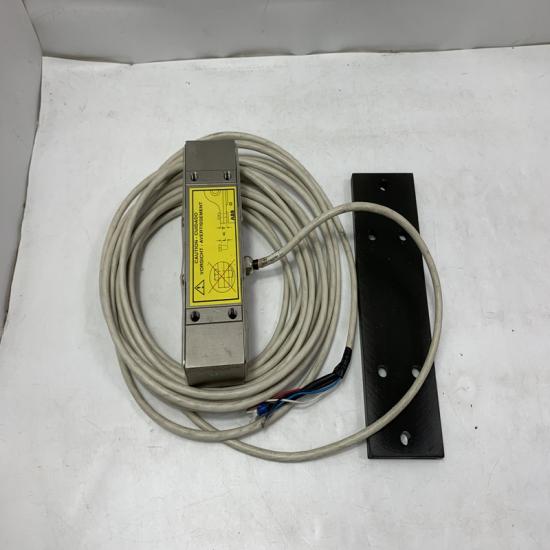

ABB PFTL301E Tension Sensor
Item NO.:
PFTL301EPayment:
T/TPrice:
$800Product Origin:
SwedenColor:
NEWProduct weight:
3.83KG(0.5KN)Lead Time:
In stockWe will arrange delivery within 3-5 days after receiving the payment.
Our express delivery: DHL and FedEx.
Quality packing for each product
Destination country all taxes & duty to be paid by buyer
Only part of the brand and model, if you have other product needs, please contact us.
The ABB PFTL301E is a high-precision tension sensor designed for industrial automation, particularly in web tension measurement applications such as paper, textile, plastic film, and metal processing. It belongs to ABB’s Mini Series Pressductor® line, utilizing magnetostrictive technology for high accuracy, stability, and resistance to mechanical wear.
| Parameter | Specification |
|---|---|
| Model Number | PFTL301E / 3BSE019050R1000 (varies by configuration) |
| Measurement Range | 1.0 kN (100 kgf, ~225 lbf) |
| Accuracy | - Non-linearity: ≤0.05% FS - Repeatability: ≤0.02% FS - Zero Stability: ≤0.02% FS/10h |
| Output Signal | Analog (mV/V, 4-20mA, or 0-10V) |
| Power Supply | 24V DC (±10%) |
| Operating Temperature | -20°C to +60°C (extended range: -10°C to +50°C) |
| Protection Rating | IP67 (dustproof & waterproof) |
| Cable Length | Standard: 2m (customizable up to 8m) |
| Dimensions | 380 × 235 × 90 mm (L×W×H) |
| Weight | ~5.7 kg |
| Material | Stainless steel housing (corrosion-resistant) |
| Certifications | CE, UL, IEC/EN 61131-2 |
High Precision & Stability
Pressductor® technology eliminates drift, ensuring long-term accuracy without recalibration .
Fast response time for dynamic tension control in high-speed processes .
Robust Industrial Design
IP67 protection for harsh environments (dust, moisture, vibration) .
Wide temperature tolerance for extreme conditions .
Easy Integration
Compatible with ABB AC800M/AC500 PLCs and third-party control systems .
Hot-swappable for maintenance without downtime .
Flexible Mounting
Horizontal force measurement only (avoids interference from vertical loads) .
DIN rail or direct bolt-on installation .
Wide Industry Applications
Paper & textile: Web tension control in rolling machines .
Plastic film: Stretch film production monitoring .
Metal processing: Strip tension in rolling mills .
Web tension control in paper, film, and foil manufacturing .
Textile & fiber processing (yarn, fabric tension monitoring) .
Printing & packaging (precise tension for consistent print quality) .
Steel & aluminum rolling mills (strip tension regulation) .
Installation
Ensure proper alignment to avoid measurement errors .
Avoid mechanical overload (max 5× rated capacity) .
Calibration
Factory-calibrated; periodic checks recommended for critical applications .
Environmental Limits
Do not expose to corrosive chemicals beyond stainless steel resistance .
Electrical Compatibility
Verify signal type (mV/V, 4-20mA) matches controller input .
The structure and details of the product：
