ABB OTP63BA3M enclosed switch

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB OTP63BA3M Enclosed Switch

Introduction

The ABB OTP63BA3M is an enclosed switch designed for controlling and protecting electrical circuits in low-voltage applications. It combines the functions of an automatic switch with the protection of an enclosed housing, making it ideal for electrical distribution systems. The compact design of the switch ensures its suitability for use in industrial and commercial electrical systems, while the enclosed housing protects against external environmental factors. This switch is commonly used for controlling motors, lighting, heating systems, and other loads, offering high reliability and long service life.

Technical Specifications

• Model: OTP63BA3M

• Series: OTP

• Type: Enclosed Switch

• Rated Current: 63 A

• Rated Voltage: 400 V AC

• Poles: 3 poles

• Frequency Range: 50/60 Hz

• Operation Type: Manual operation (manual switch)

• Enclosure Protection Class: IP65 (dustproof, waterproof, suitable for outdoor or harsh environments)

• Terminal Type: Screw terminals for various cable connections

• Locking Function: Prevents accidental operation, ensuring safety

• Dimensions (L x W x H):

  • Length: 160 mm

  • Width: 120 mm

  • Height: 170 mm

• Temperature Range: -25°C to +60°C

• Material: Corrosion-resistant plastic shell for long-term durability

• Certifications: CE, UL, RoHS

Features and Benefits

1. High Reliability

   • This switch offers excellent reliability in various industrial and commercial environments, especially in high humidity or dusty environments.

2. Enclosed Design

   • The fully enclosed design protects the switch from external elements like dust or moisture, ensuring greater safety and durability.

3. Locking Function

   • The built-in locking function prevents accidental operation or unauthorized switching, adding an extra layer of safety.

4. Compact Design

   • Its compact and easy-to-install design makes it suitable for space-constrained applications.

5. Corrosion-Resistant Enclosure

   • The corrosion-resistant material ensures the switch performs well in harsh environments, making it suitable for industrial and construction applications.

6. Versatile Application

   • It can be used for controlling motors, heating devices, lighting systems, and more, offering flexible application possibilities.

Applications

1. Industrial Distribution Systems

   • Used for controlling and protecting industrial equipment such as motors, compressors, and fans.

2. Building Electrical Systems

   • Ideal for controlling lighting, air conditioning, and heating systems in buildings.

3. Machinery Equipment Control

   • Suitable for power isolation and protection in machinery and production lines.

4. Transportation Infrastructure

   • Used in electrical control systems for railway stations, subways, airports, etc., providing protection, isolation, and switching functions.

Installation & Maintenance Notes

1. Wiring Installation

   • Ensure secure connections during installation to prevent loose connections or poor contact, which can lead to overheating.

2. Environmental Protection

   • Install in dry, ventilated areas free from corrosive gases to ensure long-term stability.

3. Regular Inspections

   • Periodically check the switch for proper operation and ensure no loose or damaged parts. Perform maintenance or replacement as needed.

4. Avoid Overloading

   • Ensure the connected load is within the rated current limits to avoid overload and protect both equipment and personnel.

5. Temperature Considerations

   • Ensure the switch is not exposed to temperatures exceeding the rated temperature range.

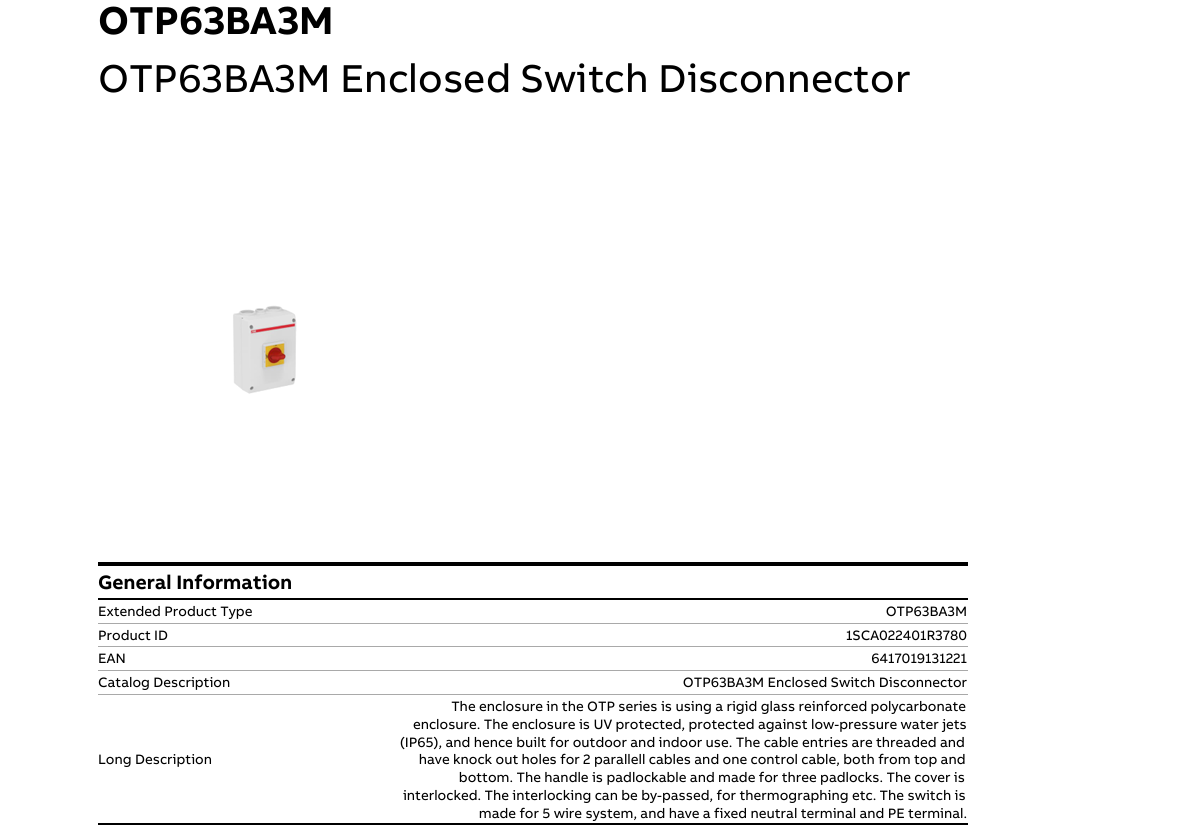

The structure and details of the product：
