                                                                                                                                                                                        • ABB NPBA-12 PROFIBUS Adapter Module

                                                                                                                                                                                          Product Overview

                                                                                                                                                                                          The ABB NPBA-12 is a PROFIBUS Adapter Module designed for ABB AC drives. It enables ABB drives to connect to a PROFIBUS DP industrial communication network, allowing PLC systems to control the drive, monitor operating status, read actual values, and modify drive parameters through fieldbus communication.

                                                                                                                                                                                          The module operates as a PROFIBUS slave device in the automation network and is commonly used in ABB drive systems for centralized PLC control.

                                                                                                                                                                                          ---

                                                                                                                                                                                          Main Specifications

                                                                                                                                                                                          • Manufacturer: ABB
                                                                                                                                                                                          • Model: NPBA-12
                                                                                                                                                                                          • Product Type:
                                                                                                                                                                                            • PROFIBUS Adapter Module
                                                                                                                                                                                            • Fieldbus Communication Module
                                                                                                                                                                                            • ABB Drive Communication Option
                                                                                                                                                                                          • Communication Protocol: PROFIBUS DP
                                                                                                                                                                                          • Network Role: PROFIBUS Slave
                                                                                                                                                                                          • Communication Speed: Up to 12 Mbps
                                                                                                                                                                                          • Power Supply: 24 VDC
                                                                                                                                                                                          • Current Consumption: Approx. 70 mA at 24 VDC
                                                                                                                                                                                          • Mounting: Standard DIN rail mounting
                                                                                                                                                                                          • Protection Rating: IP20
                                                                                                                                                                                          • Installation: Inside or outside compatible ABB drive units (depending on drive model)

                                                                                                                                                                                          ---

                                                                                                                                                                                          Technical Functions

                                                                                                                                                                                          The ABB NPBA-12 provides:

                                                                                                                                                                                          • PROFIBUS communication between PLC and ABB drive
                                                                                                                                                                                          • Remote start/stop control
                                                                                                                                                                                          • Speed and torque reference commands
                                                                                                                                                                                          • Drive status monitoring
                                                                                                                                                                                          • Actual speed/current/frequency feedback
                                                                                                                                                                                          • Parameter reading and writing
                                                                                                                                                                                          • Drive fault reset through network

                                                                                                                                                                                          Working principle:

                                                                                                                                                                                          PLC PROFIBUS Master → NPBA-12 Adapter → ABB AC Drive → Motor Control



                                                                                                                                                                                          ---

                                                                                                                                                                                          Features & Advantages

                                                                                                                                                                                          • Original ABB drive communication accessory
                                                                                                                                                                                          • Enables integration of ABB drives into PROFIBUS automation networks
                                                                                                                                                                                          • Supports fast and reliable cyclic data exchange
                                                                                                                                                                                          • Reduces traditional hardwired control connections
                                                                                                                                                                                          • Provides detailed drive diagnostics
                                                                                                                                                                                          • Easy configuration through ABB drive control interface
                                                                                                                                                                                          • Compact DIN rail mounting design
                                                                                                                                                                                          • Suitable for industrial automation environments



                                                                                                                                                                                          ---

                                                                                                                                                                                          Applications

                                                                                                                                                                                          Used in:

                                                                                                                                                                                          • Factory automation systems
                                                                                                                                                                                          • Motor control systems
                                                                                                                                                                                          • Conveyor equipment
                                                                                                                                                                                          • Pump and fan control
                                                                                                                                                                                          • Process automation
                                                                                                                                                                                          • Production lines
                                                                                                                                                                                          • Distributed drive systems

                                                                                                                                                                                          Typical applications:

                                                                                                                                                                                          • PLC-controlled motor speed regulation
                                                                                                                                                                                          • Remote drive parameter adjustment
                                                                                                                                                                                          • Centralized machine monitoring
                                                                                                                                                                                          • Industrial network communication

                                                                                                                                                                                          ---

                                                                                                                                                                                          Compatible Equipment

                                                                                                                                                                                          Commonly used with ABB drives such as:

                                                                                                                                                                                          • ABB ACS800 series drives
                                                                                                                                                                                          • ABB industrial AC drive systems
                                                                                                                                                                                          • ABB motion and automation platforms supporting PROFIBUS options

                                                                                                                                                                                          (Compatibility depends on drive model and firmware.)

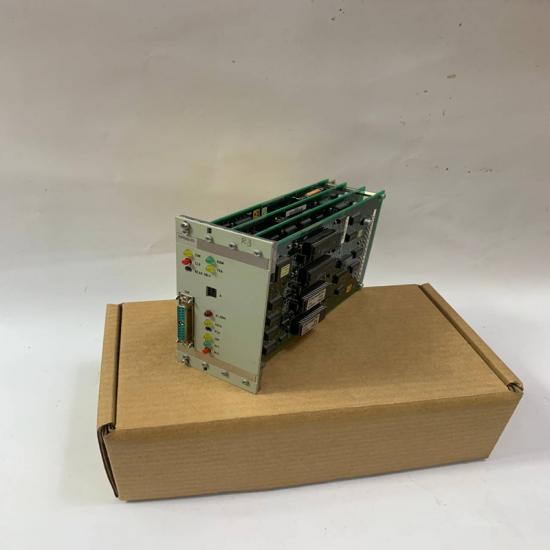

The structure and details of the product：
