ABB NLIS01 Loop Interface Slave

Core Product Features

• Loop Signal Interaction: Operates as a slave node in a control loop, supporting bidirectional data transmission with the master controller (e.g., ABB NAMM03 analog master module). It collects analog/digital signals from field devices (4-20mA/24V DC) and forwards them to the master, while executing control commands (e.g., valve adjustment signals) from the master to field actuators.
• Multi-Channel Isolation: Integrates 8 analog input channels (4-20mA) and 4 analog output channels (4-20mA), with 2.5kV AC channel-to-channel isolation and 5kV AC isolation from the loop bus. This prevents signal crosstalk and protects the master controller from field-side electrical faults (e.g., ground loops).
• Loop Diagnostics: Built-in loop fault detection (open circuit, short circuit, signal overrange) and module status monitoring (power loss, communication failure). Fault information is transmitted to the master controller via the loop bus, enabling remote troubleshooting without on-site inspection.

Key Parameters

• Signal Channels: 8 analog inputs (4-20mA, accuracy ±0.1% FS), 4 analog outputs (4-20mA, linearity error ≤0.2% FS).
• Loop Compatibility: Works with ABB proprietary loop protocols (e.g., Symphony Plus Loop); supports up to 32 slave modules per master loop.
• Transmission Performance: Loop communication rate up to 1Mbps, signal transmission delay ≤5ms; supports redundant loop wiring (ring topology) for fault tolerance.
• Power Supply: 24V DC input (18-30V DC), power consumption ≤5W (full load).
• Environmental Adaptability: Operating temperature -40°C to +70°C, humidity 5%-95% (non-condensing); protection grade IP20 (control cabinet installation).
• Mechanical Specs: 100mm×80mm×25mm, DIN rail-mounted; connects to the loop bus via a 15-pin D-sub connector.

Core Advantages

• Distributed Signal Management: Reduces long-distance wiring costs by placing the slave module near field devices (e.g., in on-site instrument cabinets), converting scattered signals into a unified loop transmission to the master—ideal for large-scale plants (e.g., oil refineries, chemical complexes).
• Enhanced System Safety: High-voltage isolation protects the master control system from field-side electrical disturbances (e.g., surge voltages from lightning strikes), improving overall system reliability.
• Seamless ABB Integration: Natively compatible with ABB loop masters and DCS systems; configurable via ABB Control Builder software, supporting auto-addressing and online parameter adjustment without loop shutdown.

Typical Applications

• Oil & Gas Refineries: Deployed near wellhead or pipeline sensors (pressure, temperature, flow), collecting 4-20mA signals and transmitting them to the central DCS loop master, while sending valve control signals to field actuators.
• Chemical Plants: Used in distributed reactor zones, connecting multiple thermocouple signal converters (4-20mA) and control valves, enabling the central master to regulate each reactor’s process parameters independently.
• Water Treatment Plants: Installed in remote filtration or dosing stations, collecting water quality sensor signals and controlling chemical dosing pumps, integrating decentralized equipment into the central control loop.

Usage Precautions

• Loop Wiring: Use shielded twisted-pair cables for the loop bus; adopt ring topology for redundancy (if required) and ensure proper termination (120Ω resistors at loop ends) to avoid signal reflection.
• Address Setting: Assign a unique address to each NLIS01 module via DIP switches (to avoid conflicts in the loop); confirm the address matches the master controller’s configuration.
• Maintenance: Regularly check loop communication status via the master DCS; clean module terminals annually to prevent oxidation-induced signal loss. Calibrate analog channels every 12 months (using ABB calibration tools) for high-precision applications (e.g., pharmaceutical dosing)

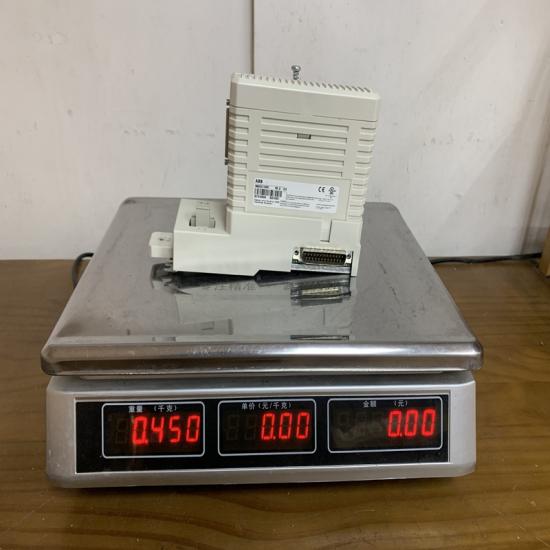

The structure and details of the product：
