ABB NIMF02 multifunctional termination module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB NIMF02 Multifunctional Termination Module

Core Product Features

• Mixed Signal Termination: Supports 16 channels of mixed signals, including analog (4-20mA/0-10V) and digital (24V DC) signals. Centralizes termination of scattered field wires, replacing discrete terminal blocks to simplify wiring and reduce errors.
• Built-In Protection: Each channel has surge protection (complying with IEC 61000-4-5, ±2kV) to withstand field voltage spikes; analog channels include low-pass filters (cutoff frequency 50Hz) to reduce high-frequency noise, ensuring signal integrity.
• Diagnostic & Status Monitoring: Features LED indicators per channel (green for normal, red for fault) to visually identify open/short circuits; module-level power and communication status lights enable quick troubleshooting of wiring or power issues.

Key Parameters

Core Advantages

• Simplified Wiring: Integrates 16-channel termination in a compact unit, reducing control cabinet wiring time by 40% vs. discrete terminals; clear channel labels (CH1-CH16) minimize wiring errors during installation.
• Enhanced Signal Stability: Filtering and surge protection prevent field noise and voltage spikes from affecting downstream I/O modules, critical for high-precision applications (e.g., pharmaceutical process monitoring).
• Seamless ABB Compatibility: Designed to match ABB I/O modules (e.g., IMFEC12 analog input module) via standard connectors; no additional adapters needed, ensuring plug-and-play integration with ABB automation systems.

Typical Applications

• Chemical Plants: Terminates signals from reactor pressure/temperature sensors (4-20mA) and valve status switches (24V DC), conditioning signals before transmission to the DCS I/O module for precise process control.
• Power Plants: Connects steam flowmeters (0-10V) and pump status sensors (24V DC) to the control system, protecting I/O modules from electrical interference in high-voltage environments.
• Water Treatment: Handles signals from water quality sensors (4-20mA) and dosing pump control signals (24V DC), centralizing termination to simplify maintenance of distributed field devices.

Usage Precautions

• Wiring: Use shielded twisted-pair cables for analog signals; ground the cable shield at the module end (single-point grounding) to reduce EMI. Tighten terminal screws with torque 0.8-1.2N·m to avoid loose connections.
• Protection Check: After lightning strikes or field voltage surges, inspect surge protection components (visually check for damage) and test signal integrity—replace the module if protection circuits fail.
• Maintenance: Regularly clean terminal blocks to prevent oxidation (use alcohol swabs if needed); verify channel isolation with a multimeter (≥2.5kV resistance between channels) during annual system checks.
•

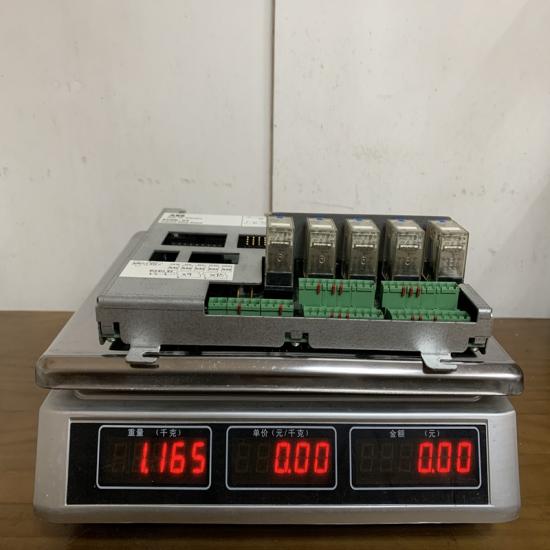

The structure and details of the product：
