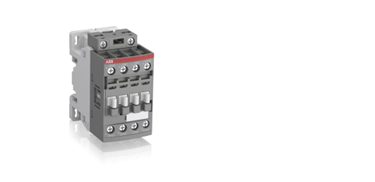

ABB NF40E-12 Contactor Relay

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

1. Product Overview

The ABB NF40E-12 is an industrial Contactor Relay designed for switching AC circuits and controlling electric loads. It is a key actuator component in motor control, starting circuits, and protection systems. This contactor relay offers high reliability, long life, and easy integration, and is commonly used with thermal overload relays, reversing modules, and other control devices.

2. Main Technical Specifications (Typical)

• Model: NF40E-12

• Product Type: Contactor Relay

• Rated Operational Voltage (Ue): AC 230 V / 400 V (common control voltages, may vary by version)

• Rated Current (Ie): 40 A (main contact load)

• Coil Control Voltage: AC 230 V / DC 24 V / AC 110 V (version dependent)

• Contact Configuration: 3 poles (3 NO)

• Switching Frequency: Up to several thousand operations per hour (depending on load & version)

• Mechanical Life: ≥ 10⁶ operations

• Electrical Life: ≥ 10⁵ operations (under rated load)

• Mounting: DIN rail or panel mount

• Rated Insulation Voltage (Ui): 690 V

• Protection Class: IP20 (for control cabinet interior)

• Standards Compliance: IEC/EN 60947-4-1

3. Advantages and Features

• High Reliability & Durability
  Industrial design with quality contacts for frequent operation and long lifetime.

• Strong Load Switching Capability
  Main contacts rated for high current, suitable for AC motor and load control.

• Wide Compatibility
  Can be paired with thermal relays, control modules, reversing starters, etc.

• Easy Installation
  Supports DIN rail and panel mounting for convenient maintenance.

• Excellent Electrical Performance
  Good insulation and strong anti-interference capability suitable for industrial environments.

4. Applications

• Industrial motor control and start circuits

• Fan, pump and compressor control loops

• Industrial automation control cabinets

• Heating, cooling, and conveyor system control

• Reversing motor control and forward/reverse logic circuits

• Remote switching in power distribution systems

5. Precautions for Installation and Use

1. Match Rated Parameters: Confirm rated current, voltage, and coil voltage match the control system;

2. Correct Wiring: Follow the wiring diagram to prevent incorrect connections and relay damage;

3. Protection Requirements: Install in a dry, ventilated control cabinet free from corrosive gases;

4. Avoid Overload: Operate within rated limits to prevent overheating;

5. Routine Maintenance: Regularly inspect contacts, coil, and mechanical integrity;

6. Professional Setup: Installation and commissioning should be by qualified electrical personnel
