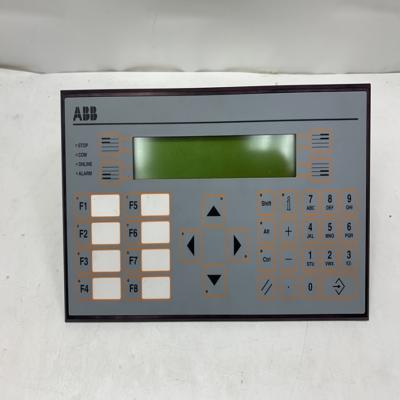

ABB MT-60-RS-232 F Control Panel

Product Overview

The ABB MT-60-RS-232 F is a robust operator control panel designed for industrial automation applications. This panel features RS-232 communication interface and is built to withstand harsh industrial environments while providing reliable human-machine interface (HMI) functionality.

Technical Specifications

General Parameters

• Brand: ABB

• Model: MT-60-RS-232 F

• Type: Industrial control panel

• Display: LCD with backlight (character size and lines vary by model)

• Keys: Membrane keypad with tactile feedback

• Protection Rating: Typically IP65 (front panel)

• Mounting: Panel mount (cutout dimensions vary)

Communication Interface

• Interface Type: RS-232 serial communication

• Protocol: Supports standard serial protocols

• Baud Rate: Configurable (typically 1200-115200 bps)

Electrical Characteristics

• Power Supply: 24VDC (range may vary)

• Current Consumption: Typically <100mA

• Operating Voltage Range: 20-30VDC

Environmental Specifications

• Operating Temperature: -10°C to +55°C

• Storage Temperature: -20°C to +70°C

• Humidity: 10-90% non-condensing

Key Features

1. Rugged Construction: Designed for industrial environments with high immunity to electrical noise

2. Clear Display: High-contrast LCD with adjustable backlight

3. Intuitive Operation: Logical key layout for easy operation

4. Flexible Communication: RS-232 interface for connection to PLCs and other control devices

5. Customizable Interface: Programmable display messages and functions

6. Durability: Scratch-resistant front panel and sealed construction

Application Fields

1. Industrial Automation: Machine control and monitoring

2. Process Control: Parameter setting and display

3. Equipment Control: Local operation of industrial machinery

4. System Integration: As part of larger control systems

Installation and Operation

Mounting Instructions

1. Prepare panel cutout according to specified dimensions

2. Insert panel from front and secure with mounting clips

3. Connect power and communication cables

Wiring Guidelines

• Use shielded cables for communication lines

• Maintain proper separation from power cables

• Ensure correct polarity for power connections

Configuration

1. Set communication parameters (baud rate, parity, etc.)

2. Program display messages and key functions as required

3. Test all functions before putting into operation

Maintenance

1. Cleaning: Use mild detergent and soft cloth (no solvents)

2. Inspection: Regularly check cable connections and seals

3. Display: Replace backlight if necessary (when dimmed)

The structure and details of the product：
