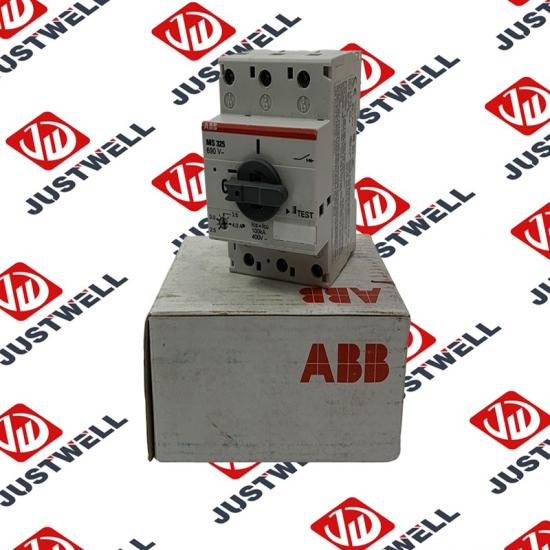

ABB MS225 Manual Motor Starter

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

•

• Product Overview / Function

  The MS225 manual motor starter is a device for manual control and protection of small motors. It combines overload and short-circuit protection to automatically disconnect power in case of abnormal motor operation, safeguarding both the motor and circuit. It is suitable for direct-on-line (DOL) starting of AC motors and is commonly used in industrial, commercial, and light industrial control panels or distribution systems.

  Key Technical Specifications

  • Model: MS225

  • Rated operational current: 0.1 A – 0.16 A (adjustable range depending on version)

  • Poles: 3

  • Rated insulation voltage: 690 V AC

  • Short-circuit breaking capacity: Typically up to 10 kA depending on version

  • Protection features: Overload protection, short-circuit protection

  • Control type: Manual ON/OFF operation

  • Mounting method: DIN rail or panel mounting

  • Environmental suitability: Suitable for industrial and commercial environments; resistant to high temperature, humidity, and vibration

  ---

  Advantages & Features

  1. Integrated protection: Overload and short-circuit protection for motor and circuit safety

  2. Manual operation: Quick and intuitive ON/OFF control

  3. Compact design: Easy installation in control cabinets or distribution boards

  4. High reliability: Industrial-grade design suitable for continuous operation

  5. Adjustable current rating: Flexible adjustment according to motor rated current

  ---

  Typical Application Areas

  • Control and protection of small motors

  • Industrial equipment, pumps, fans, and motor-driven devices

  • Direct-on-line (DOL) applications in distribution systems and control panels

  • Industrial, commercial, and light industrial motor control applications

  ---

  Precautions

  • Power off before installation and maintenance

  • Adjust overload protection according to the motor rated current

  • Ensure adequate ventilation and avoid high temperature or humidity

  • Regularly inspect contacts and operation status to ensure reliability

  • Do not exceed rated voltage or short-circuit breaking capacity

•
•

The structure and details of the product：
