ABB MOD600ADIM8H Analog Input Module

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • ABB MOD600ADIM8H Analog Input Module

                                                                                                        Product Overview

                                                                                                        The ABB MOD600ADIM8H is a RIO600 High Voltage Digital Input Module designed for ABB Remote I/O (RIO600) systems. It provides 8 optically isolated binary input channels for collecting status signals from field devices and transmitting data to ABB protection relays or automation systems through the RIO600 platform.

                                                                                                        Note: The product name is sometimes described as an input module, but MOD600ADIM8H is specifically a Digital Input Module (DIM8H), not an analog input module.

                                                                                                        Main Specifications

                                                                                                        • Manufacturer: ABB
                                                                                                        • Model: MOD600ADIM8H
                                                                                                        • Product Type: Digital Input Module
                                                                                                        • Series: ABB RIO600 Remote I/O
                                                                                                        • Input Channels: 8 channels
                                                                                                        • Input Type: Optically isolated binary inputs
                                                                                                        • Voltage Type: High-voltage range input
                                                                                                        • Function:
                                                                                                          • Status monitoring
                                                                                                          • Signal acquisition
                                                                                                          • Remote control feedback
                                                                                                        • Communication System: ABB RIO600 platform
                                                                                                        • Mounting: DIN Rail Mount
                                                                                                        • Module Design: Modular stack configuration

                                                                                                        Advantages & Features

                                                                                                        • 8-channel high-voltage digital input design
                                                                                                        • Optical isolation improves electrical safety and signal reliability
                                                                                                        • Modular structure allows flexible RIO600 system expansion
                                                                                                        • Reliable operation in harsh industrial environments
                                                                                                        • Supports real-time status monitoring
                                                                                                        • Easy integration with ABB protection and control systems
                                                                                                        • Compact DIN rail installation saves cabinet space

                                                                                                        Applications

                                                                                                        • Substation automation systems
                                                                                                        • Power distribution monitoring
                                                                                                        • Circuit breaker status monitoring
                                                                                                        • Switchgear control systems
                                                                                                        • Industrial automation equipment
                                                                                                        • Remote I/O monitoring applications
                                                                                                        • Energy management systems

                                                                                                        Important Notes

                                                                                                        • Confirm compatibility with ABB RIO600 system before installation.
                                                                                                        • Verify input voltage range before wiring.
                                                                                                        • Ensure correct polarity and terminal connection.
                                                                                                        • Use proper grounding and protection methods.
                                                                                                        • Disconnect power before installation or maintenance.

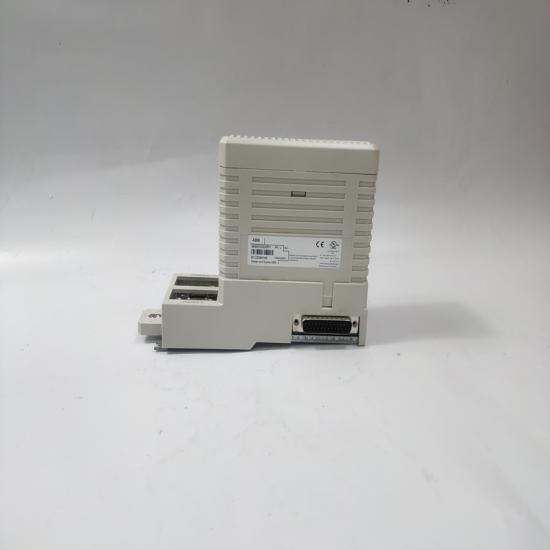

The structure and details of the product：
