ABB MCU2A02V2 Motor Control Unit

1. Key Parameters

• Product Model: MCU2A02V2 (standard identifier for ABB's mid-range motor control units)
• Core Function: Motor starting, speed control, overload protection, and status monitoring for AC induction motors
• Motor Compatibility:
  • Type: Three-phase AC induction motors (squirrel-cage design)
  • Maximum Motor Power: 75kW (at 400V AC, 50Hz)
  • Rated Current Range: 10A~150A (continuous operation)
• Control Modes:
  • Direct-on-line (DOL) starting
  • Soft starting (voltage ramp control, 2~30s adjustable ramp time)
  • Optional variable speed control (via pulse width modulation, PWM)
• Protection Functions:
  • Overload protection (class 10/20, adjustable trip current)
  • Overcurrent protection (instantaneous trip at 10× rated current)
  • Phase loss/imbalance protection
  • Overvoltage/undervoltage protection
  • Ground fault protection (residual current detection)
• Communication Interfaces:
  • 1× RS-485 port (Modbus RTU, for remote monitoring/control)
  • 1× Ethernet port (Modbus TCP/IP, optional)
• Input/Output Signals:
  • Digital inputs: 4 (for start/stop, emergency stop, external interlocks)
  • Digital outputs: 2 (for status indication, alarm signaling)
  • Analog input: 1× 4-20mA (for speed reference or process feedback)
• Power Supply: 24V DC (±10% tolerance); Optional 110V AC/230V AC
• Operating Temperature Range: -10℃~+60℃ (14℉~140℉)
• Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
• Mounting Method: 35mm standard DIN rail mounting
• Protection Class: IP20 (module body); Complies with IEC 60947-4-1 (motor controllers), IEC 61000-6-2 (EMC immunity)

2. Product Features

• Flexible Motor Control: Supports both direct-on-line and soft starting modes to match application requirements—soft starting reduces inrush current (up to 3× rated current) to minimize mechanical stress on motors and reduce voltage dips in power systems.
• Comprehensive Protection Suite: Multi-layer safeguards (overload, overcurrent, phase loss) prevent motor damage from electrical faults, while ground fault detection enhances personnel safety in industrial settings.
• Remote Monitoring & Control: Modbus communication enables integration with PLCs, SCADA, or DCS systems for remote operation (start/stop, speed adjustment) and real-time status tracking—reducing on-site intervention.
• User-Friendly Configuration: Intuitive front-panel HMI with LED indicators and push buttons for local control; parameters (ramp time, trip settings) can be configured via ABB's Motor Control Studio software for advanced customization.
• Compact Design: Slim DIN rail-mounted profile saves space in control cabinets, ideal for applications with high-density equipment layouts (e.g., industrial control panels, motor control centers).
• Industrial Durability: Robust construction with wide temperature tolerance and anti-vibration performance (IEC 60068-2-6) ensures reliable operation in dusty, humid, or vibration-prone environments (e.g., manufacturing plants, pumps stations).
• Seamless System Integration: Compatible with ABB's motor control accessories (contactors, thermal relays, current transformers) for complete motor control solutions—simplifying system design and commissioning.

3. Application Fields

• Industrial Pumps & Fans: Controls motors for water pumps, cooling fans, and ventilation systems in chemical plants, power stations, and wastewater treatment facilities—optimizing energy efficiency via soft starting.
• Material Handling: Manages conveyor belt motors, hoists, and elevators in warehouses, mines, and manufacturing plants—reducing mechanical wear with smooth acceleration/deceleration.
• Manufacturing Machinery: Regulates motors for mixers, compressors, and machine tools in automotive, food processing, and pharmaceutical production lines—ensuring precise speed control for process consistency.
• HVAC Systems: Controls large HVAC motors in commercial buildings, data centers, and hospitals—balancing performance with energy savings through optimized starting and speed adjustment.
• Agricultural Equipment: Manages irrigation pumps, grain conveyors, and processing machinery in agricultural facilities—withstanding harsh outdoor conditions and ensuring reliable operation during critical harvesting periods.

4. Precautions

• Motor Matching: Ensure the unit's current range (10A~150A) and power rating (up to 75kW at 400V) match the motor's specifications—overloading will cause frequent tripping or damage to the control unit.
• Starting Mode Selection: Choose between DOL and soft starting based on application needs—use soft starting for motors driving high-inertia loads (e.g., centrifuges) to avoid mechanical stress, and DOL for simple on/off applications (e.g., small pumps).
• Wiring Safety: Use appropriately sized cables (copper conductors, minimum 2.5mm²) for power connections; ensure tight terminal connections to prevent overheating. Separate power cables from control/signaling cables to minimize EMI.
• Protection Setting Calibration: Adjust overload trip class (10/20) based on motor thermal characteristics—class 10 for motors with fast-heating windings (e.g., submersible pumps), class 20 for general-purpose motors.
• Environmental Protection: Install in a dust-tight, moisture-proof control cabinet in harsh environments; avoid direct exposure to corrosive gases, excessive vibration, or temperatures beyond -10℃~+60℃.
• Regular Maintenance: Periodically check for loose connections, clean the HMI display, and verify protection settings using Motor Control Studio—replace the unit if it fails self-diagnostics or shows signs of internal damage

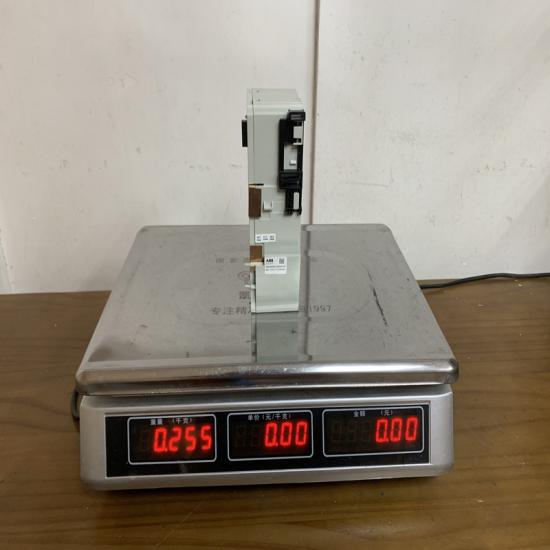

The structure and details of the product：
