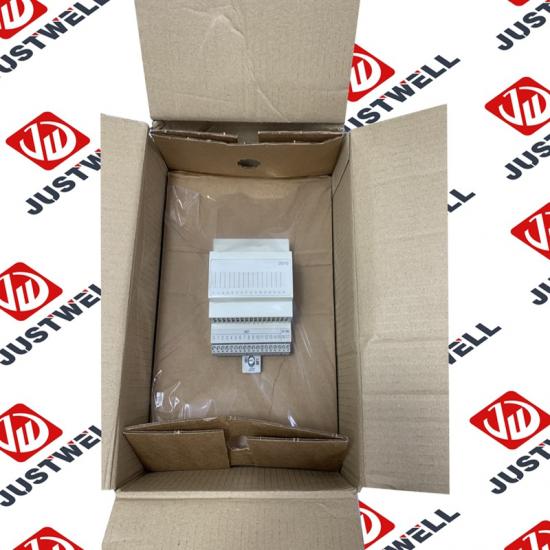

ABB IIADP02 Signal Receiver Display Panel

Product Overview:
The ABB IIADP02 Signal Receiver Display Panel is used in ABB automation systems to receive and display status signals and data from the control system or field modules in real-time. The panel features a clear display interface, alarm indicators, and multiple communication interfaces, enabling operators to quickly understand system status and improve operational safety.

Technical Specifications:

• Model: IIADP02

• Type: Signal Receiver Display Panel

• Display Type: LCD or LED indicators

• Display Content: Status signals, alarms, digital/analog data

• Input Signal Type: Digital signals from ABB control or I/O modules

• Communication Interfaces: RS-485, Modbus, Ethernet (optional)

• Supply Voltage: 24V DC (±10%)

• Power Consumption: ≤ 5 W

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +70°C

• Protection Class: IP20 / Front panel IP54

• Mounting: Panel mount or rack mount

• Certifications: CE, UL, RoHS

Key Features and Advantages:

1. Real-Time Signal Display – Provides intuitive display of system status and alarms.

2. Multi-Interface Communication – Supports RS-485, Modbus, Ethernet industrial protocols.

3. Clear and Readable Display – LCD or LED indicators allow operators to quickly grasp information.

4. Alarm Notification – Provides audible and visual alarms when system anomalies occur.

5. Modular Design – Easy installation, maintenance, and system expansion.

6. Industrial Reliability – Suitable for long-term operation in high temperature, humidity, and vibration environments.

Applications:

• Factory automation production lines

• Distributed Control Systems (DCS)

• PLC automation systems

• Power automation and energy management systems

• Process industries: chemical, metallurgy, cement, paper

• Building automation and smart monitoring systems

Precautions:

1. Always disconnect power before installation or removal.

2. Ensure proper grounding to prevent ESD and EMI damage.

3. Input signal type and range must match system configuration.

4. Do not disassemble the display panel under power.

5. Regularly check wiring and mounting stability.

6. Avoid high humidity, dust, or corrosive environments.
