ABB ICSI16D1 I/O Remote Unit

1. Key Parameters

• Product Model: ICSI16D1
• Product Series: ABB ICS Series Distributed I/O Remote Units (Digital Signal Handling)
• Core Function: Provides remote digital input/output interfaces; enables real-time data exchange with central controllers via industrial protocols; supports hot-swap for easy maintenance; integrates with ABB and third-party automation systems; ensures electrical isolation for signal integrity
• I/O Specifications:

  Parameter	Details	Performance Metrics
  Digital Inputs	- Quantity: 16 channels (isolated) - Type: Dry contact/NPN/PNP (configurable) - Voltage Range: 24V DC (18V~30V) - Input Current: 3mA~10mA (per channel) - Response Time: ≤1ms (signal edge detection) - Protection: Reverse polarity, overvoltage (36V clamp)	16-channel design suits multi-point monitoring (e.g., sensor arrays, limit switches); fast response time ensures real-time event capture
  Digital Outputs	- Quantity: 16 channels (isolated, relay type) - Contact Rating: 2A @ 250V AC / 2A @ 30V DC (resistive load) - Switching Time: ≤10ms (open/close) - Life Expectancy: 100,000+ operations (at rated load) - Protection: Short-circuit (thermal overload)	Relay outputs support diverse loads (e.g., solenoids, valves, indicators); short-circuit protection prevents output damage

• Communication & Power Specifications:

  Parameter	Details	Performance Metrics
  Communication Protocols	- Built-in: PROFINET IO (IRT), Modbus RTU (RS-485) - Optional: EtherNet/IP, DeviceNet (via expansion port) - Data Rate: Up to 100Mbps (PROFINET); 115.2kbps (Modbus RTU) - Cycle Time: ≤1ms (PROFINET IRT, for real-time control)	PROFINET IRT supports time-critical applications; multi-protocol compatibility enables integration with diverse PLCs (e.g., ABB AC500, Siemens S7)
  Power Supply	- Voltage: 24V DC (18V~30V) - Current Consumption: 150mA (idle); 300mA (max, all outputs active) - Protection: Reverse polarity, overcurrent (500mA fuse)	Wide voltage range suits industrial control power supplies; low power consumption reduces energy use in distributed networks

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 120mm (W) × 80mm (H) × 60mm (D) - Mounting Type: 35mm DIN rail (EN 50022) - Housing Material: EMI-shielded thermoplastic (UL 94 V0) - Weight: Approximately 250g - Indicators: 16× I/O status LEDs; 2× communication LEDs (link/activity); 1× power LED	Compact size fits tight enclosures (e.g., junction boxes); DIN rail mounting enables quick deployment in distributed locations
  Environmental Ratings	- Operating Temperature Range: -25℃~+70℃ (-13℉~158℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6) - Shock Resistance: 30g (11ms half-sine, IEC 60068-2-27) - EMC Compliance: EN 61326-3-1 (emission: Class B; immunity: Level 3)	Extreme temperature range suits outdoor/harsh industrial sites; EMI shielding resists interference from motors/VFDs

• Compliance Standards: CE, UL 508, CSA C22.2 No.14, IEC 61131-2, RoHS, ISO 9001 |

2. Core Features

• 16×16 Digital I/O Configuration: 16 isolated digital inputs and 16 relay outputs—covers multi-point monitoring and control needs (e.g., 16 sensors + 16 actuators in a production cell), eliminating the need for multiple smaller I/O modules.
• Dual Protocol Support: Built-in PROFINET IO (IRT) and Modbus RTU—seamlessly integrates with modern (PROFINET-based) and legacy (Modbus-based) automation systems, reducing the need for protocol converters.
• Fast Response & Real-Time Performance: ≤1ms input response time and ≤1ms PROFINET cycle time—ensures timely capture of critical events (e.g., emergency stop signals) and precise synchronization with central controllers.
• Industrial-Grade Isolation: All I/O channels and communication interfaces are electrically isolated—prevents ground loops and signal interference in noisy industrial environments (e.g., near welding machines or large motors).
• Compact & Rugged Design: 120×80×60mm dimensions and UL 94 V0 housing—fits in space-constrained locations (e.g., machine enclosures, outdoor junction boxes); -25℃~+70℃ operating range ensures reliability in extreme conditions.
• Hot-Swap Capability: Supports hot-swap replacement without powering down the system—minimizes downtime during maintenance (e.g., replacing a faulty unit in a running production line).
• Comprehensive Protection: Reverse polarity, overvoltage, and short-circuit protection—prevents damage from wiring errors, power surges, or load faults, reducing repair costs and system downtime.
• Easy Integration & Configuration: Compatible with ABB Automation Builder software and third-party PLC tools—enables centralized configuration of I/O parameters (e.g., input type, output delay) and remote diagnostics via communication protocols.

3. Application Fields

• Manufacturing Automation: Distributed production line control:
  • Assembly Lines: Monitors 16 limit switches (e.g., part presence sensors) and controls 16 solenoid valves (e.g., grippers, stoppers)—PROFINET IRT ensures <1ms synchronization with the line PLC; compact size fits in machine enclosures.
  • Packaging Machines: Collects signals from 16 photoelectric sensors (e.g., label alignment, fill level) and activates 16 relays (e.g., sealers, cutters)—Modbus RTU integration with legacy packaging controllers simplifies retrofits.
• Process Control & Utilities: Remote monitoring points:
  • Water Treatment Plants: Monitors 16 float switches (tank levels) and controls 16 motorized valves (flow control)—wide temperature range (-25℃~+70℃) suits outdoor pump stations; isolation prevents ground loops from wet environments.
  • Chemical Processing: Tracks 16 pressure switches (pipe pressure) and activates 16 alarm relays (e.g., high-pressure alerts)—EMC immunity resists interference from chemical pumps; hot-swap capability enables maintenance without process shutdown.
• Building Automation & Infrastructure: Facility-wide I/O distribution:
  • Commercial Buildings: Connects 16 door contacts (access control) and 16 lighting relays (zone control)—EtherNet/IP (optional) integrates with BMS; low power consumption reduces building energy use.
  • Airports/Stations: Monitors 16 fire alarms and controls 16 emergency lighting relays—relay outputs handle inductive loads (lighting ballasts); shock resistance withstands high foot traffic vibrations.
• Transportation & Logistics: Mobile and fixed I/O points:
  • Warehouse Automation: Reads 16 barcode scanner signals and controls 16 conveyor stop relays—PROFINET synchronization ensures accurate part sorting; compact design fits in conveyor junction boxes.
  • Railway Systems: Monitors 16 track sensors (train presence) and controls 16 signal relays—-25℃ operation ensures reliability in winter; vibration tolerance withstands train-induced shocks.

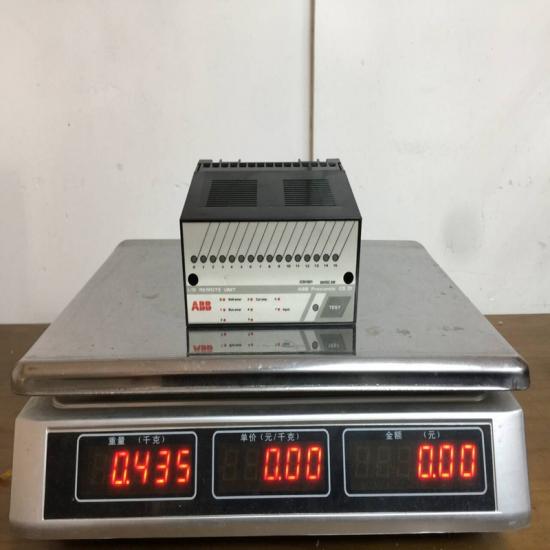

The structure and details of the product：
