ABB ICSE08A6 Analog Remote Unit

Product Overview

The ABB ICSE08A6 is a high-performance analog remote I/O unit designed for distributed control applications in industrial automation systems. This module provides reliable signal processing capabilities for analog inputs and outputs in demanding industrial environments.

Technical Specifications

General Parameters

• Brand: ABB

• Model: ICSE08A6

• Type: Analog Remote I/O Unit

• I/O Configuration: 8 analog channels (configurable as inputs or outputs)

• Signal Types Supported:

  • Voltage: ±10V, 0-10V

  • Current: 0-20mA, 4-20mA

• Resolution: 16-bit

• Accuracy: ±0.1% of full scale

• Isolation: 1500V channel-to-channel and channel-to-ground

• Communication Protocol: PROFIBUS DP

• Protection Rating: IP20 (for control cabinet installation)

• Operating Temperature: -25°C to +60°C

• Dimensions: 120 × 45 × 110mm (W×H×D)

• Weight: Approximately 0.5kg

Electrical Characteristics

• Power Supply: 24VDC ±10%

• Power Consumption: 5W typical

• Input Impedance:

  • Voltage: ≥1MΩ

  • Current: 250Ω

• Output Drive Capability: 20mA per channel

Key Features

1. High Precision Analog Processing:

   • 16-bit resolution for accurate signal conversion

   • ±0.1% accuracy ensures precise measurement and control

2. Flexible Configuration:

   • Each channel independently configurable as input or output

   • Supports multiple signal types (voltage/current)

3. Robust Industrial Design:

   • Wide operating temperature range (-25°C to +60°C)

   • High electrical isolation (1500V)

   • Compact form factor for space-saving installation

4. Advanced Diagnostics:

   • Channel-by-channel status monitoring

   • Over-range and under-range detection

   • Open circuit detection for current inputs

5. Easy Integration:

   • PROFIBUS DP interface for seamless connection to control systems

   • Compatible with ABB AC500 and other industrial controllers

Application Fields

1. Process Industries:

   • Temperature, pressure, and flow monitoring in chemical plants

   • Level control in tanks and vessels

2. Manufacturing Automation:

   • Analog signal processing for production equipment

   • Position and speed control of motors

3. Power Generation:

   • Turbine control systems

   • Power monitoring applications

4. Water Treatment:

   • pH and conductivity measurement

   • Chemical dosing control

Installation and Operation Notes

1. Mounting:

   • Install on standard DIN rail in control cabinet

   • Allow minimum 10mm clearance on all sides for ventilation

2. Wiring:

   • Use shielded twisted-pair cables for analog signals

   • Maintain separation from power cables (>20cm recommended)

   • Ground shield at one end only

3. Configuration:

   • Set channel types and ranges before operation

   • Configure PROFIBUS address via DIP switches

4. Maintenance:

   • Periodically check terminal connections

   • Monitor module status indicators

   • Verify calibration annually

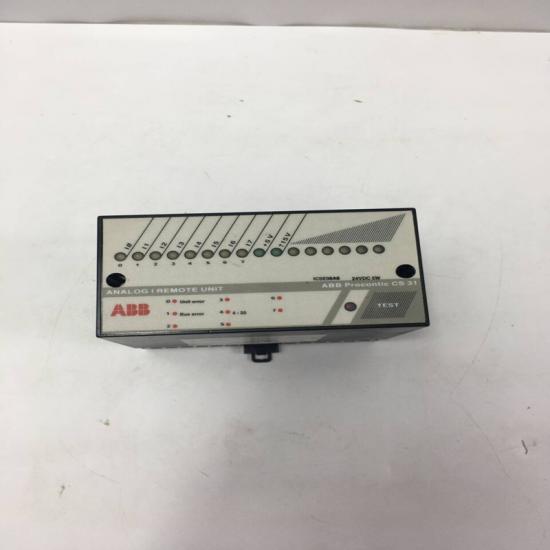

The structure and details of the product：
