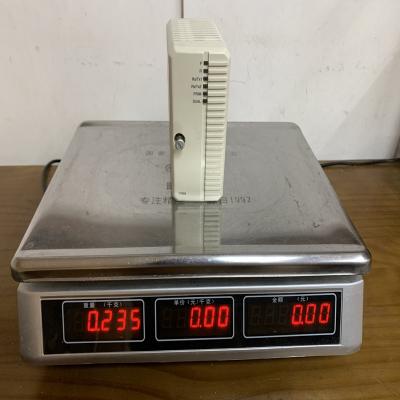

ABB HIEE220295R1 Processor Module

Product Overview:
The ABB HIEE220295R1 is a core Processor Module designed for ABB automation and control systems. It performs key functions such as logic processing, data acquisition, communication handling, and system coordination. With a powerful industrial-grade CPU, high-speed data processing, and strong anti-interference capability, it ensures reliable and efficient operation in demanding industrial environments.

Technical Specifications:

• Model: HIEE220295R1

• Type: Processor Module

• Power Supply: 24V DC (±10%)

• Power Consumption: ≤15 W

• Processor: High-performance 32-bit industrial CPU with real-time multitasking

• Memory: RAM 512MB / Flash 512MB (typical)

• Communication Interfaces: Ethernet, RS-485, Modbus, Profibus DP, CAN (depending on configuration)

• Data Transmission Rate: Up to 100 Mbps

• Execution Speed: Typical 0.1 μs per instruction

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +70°C

• Vibration Resistance: Compliant with IEC 60068-2 standard

• Protection Class: IP20 / IP40 (depending on installation)

• Mounting Type: DIN rail or rack mount

• Certifications: IEC 61131, CE, UL, RoHS

Key Features and Advantages:

1. High-Speed Processing – Equipped with a powerful CPU for complex logic and multitasking.

2. Versatile Communication – Supports multiple industrial protocols for flexible system integration.

3. High Reliability – Rigorously tested for EMC and environmental resistance.

4. Scalable Architecture – Compatible with various I/O and expansion modules.

5. Self-Diagnostics – Built-in monitoring and fault detection for easy maintenance.

6. Energy-Efficient Design – Low power consumption suitable for continuous operation.

Applications:

• Power generation and substation automation systems

• Industrial process control (chemical, metallurgy, pharmaceutical, cement, etc.)

• Factory and machine automation

• Building automation and smart monitoring

• SCADA and data acquisition systems

Precautions:

1. Ensure correct power supply and system compatibility before installation.

2. Proper grounding is essential to prevent static and EMI interference.

3. Do not plug or unplug modules while powered on.

4. Maintain good ventilation and avoid high humidity or temperature.

5. Regularly check CPU status and communication indicators for reliable performance.
