ABB GJL1201317R0003 Contactor

ABB GJL1201317R0003 Contactor

1. Product Overview

The ABB GJL1201317R0003 is an industrial-grade AC contactor, widely used in low-voltage distribution systems and industrial automation for motor control, load switching, and remote operation. It features high-performance coil and contact design, enabling fast and reliable switching to ensure safe and stable operation of connected equipment.

2. Technical Specifications

• Model: GJL1201317R0003

• Product Type: AC Contactor

• Rated Current: 25 A

• Rated Operating Voltage: AC 690 V

• Poles: 3P (three-pole)

• Coil Voltage: AC 230 V / DC 24 V (optional)

• Mechanical Life: ≥10,000,000 operations

• Electrical Life: ≥1,000,000 operations (at rated load)

• Mounting: DIN rail or screw mounting

• Auxiliary Contacts: Optional NO/NC

• Operating Temperature: -25 °C to +60 °C

• Protection Class: IP20

3. Advantages and Features

1. High Reliability Control
   Provides stable and fast switching for safe operation of motors and loads.

2. Versatile Applications
   Suitable for motor start/stop, star-delta starters, load switching, and remote control.

3. Industrial-Grade Durability
   High-strength contacts and coil design ensure long-term continuous operation.

4. Flexible Installation and Expansion
   Supports DIN rail or screw mounting, with auxiliary contacts for extended control functions.

5. Safety and Easy Maintenance
   Standardized design allows easy installation, inspection, and maintenance while meeting industrial safety standards.

4. Typical Applications

• Industrial automation control systems

• Motor control centers (MCC)

• Low-voltage distribution systems

• Industrial machinery

• Power and energy system load control

5. Installation and Usage Notes

• Always disconnect power before installation or maintenance.

• Select a contactor with appropriate voltage and current ratings to avoid overload.

• Follow terminal labeling carefully for reliable wiring.

• Regularly check contact wear and mechanical operation status.

• Avoid installation in high humidity, corrosive gases, or high-vibration environments.

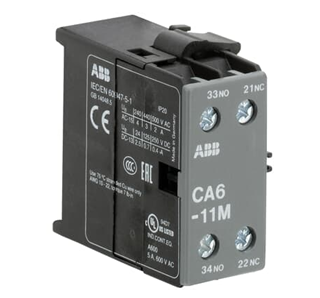

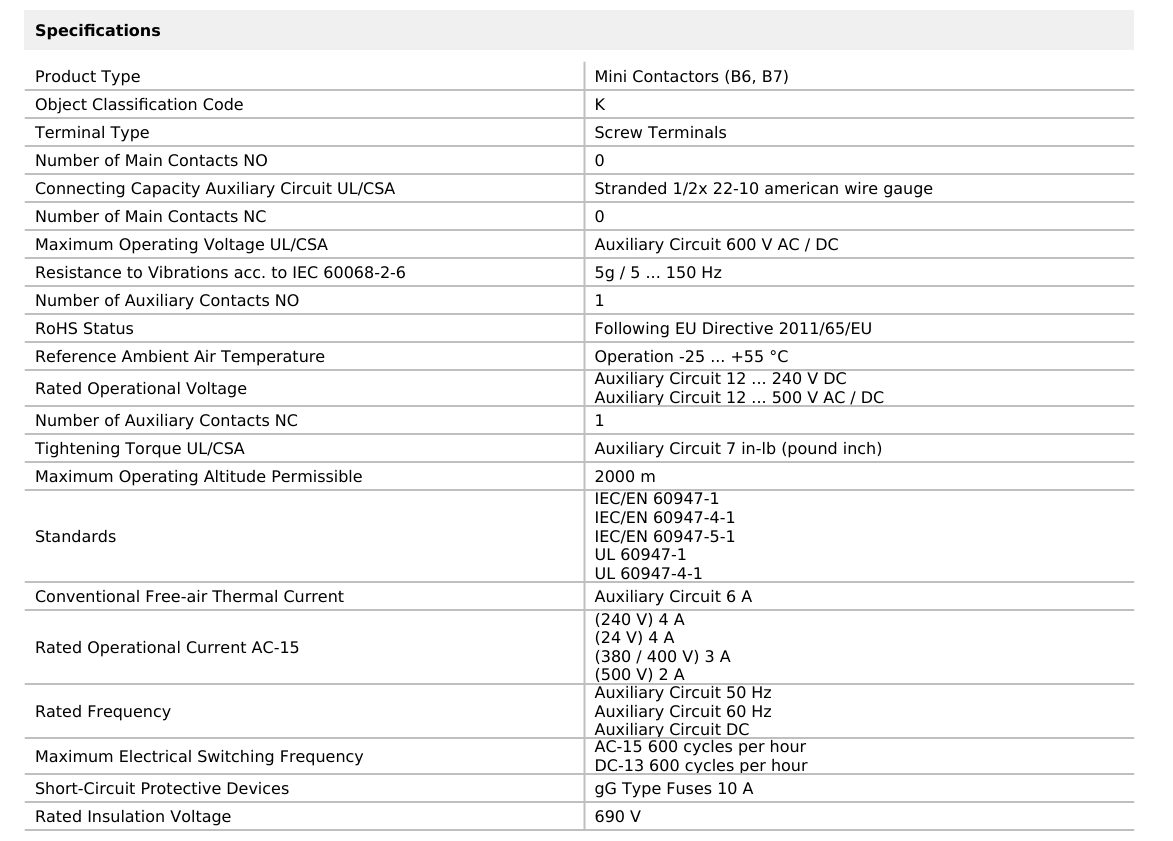

The structure and details of the product：
