ABB FS450R17KE3/AGDR-71C IGBT Driver Module

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

                                                                • ABB FS450R17KE3/AGDR-71C IGBT Driver Module

                                                                  Product Description
                                                                  ABB FS450R17KE3/AGDR-71C is a high-power IGBT module with dedicated gate driver unit designed for ABB industrial inverter and power conversion systems. It combines the FS450R17KE3 high-voltage IGBT power module with the AGDR-71C driver board, providing efficient switching control, protection, and reliable power conversion performance.

                                                                  Technical Parameters

                                                                  • Brand: ABB
                                                                  • Model: FS450R17KE3/AGDR-71C
                                                                  • Product Type: IGBT Power Module + Gate Driver
                                                                  • Module Type: High Voltage IGBT Module
                                                                  • Voltage Rating: 1700 V
                                                                  • Current Rating: Approx. 450 A
                                                                  • Switching Frequency: Up to 50 kHz (application dependent)
                                                                  • Function: IGBT switching control and power conversion
                                                                  • Driver Type: AGDR-71C Gate Driver
                                                                  • Cooling Method: Heat sink / forced cooling system
                                                                  • Application: ABB medium and high-power inverter systems

                                                                  Advantages & Features

                                                                  • Integrated IGBT module and driver solution
                                                                  • High voltage and high current handling capability
                                                                  • Fast and accurate gate switching control
                                                                  • Built-in protection functions for reliable operation
                                                                  • Excellent thermal performance and energy efficiency
                                                                  • Reduces switching losses and improves system stability
                                                                  • Designed for demanding industrial power applications

                                                                  Applications

                                                                  • ABB frequency converter systems
                                                                  • Medium-voltage drive systems
                                                                  • Industrial motor control equipment
                                                                  • Power conversion systems
                                                                  • Renewable energy converters
                                                                  • Metallurgy, mining, and heavy industrial machinery

                                                                  Notes

                                                                  • Confirm compatibility with the exact ABB drive model before installation.
                                                                  • Ensure proper heat dissipation and mounting conditions.
                                                                  • Handle with ESD protection to prevent semiconductor damage.
                                                                  • Check gate driver wiring and control parameters before operation.

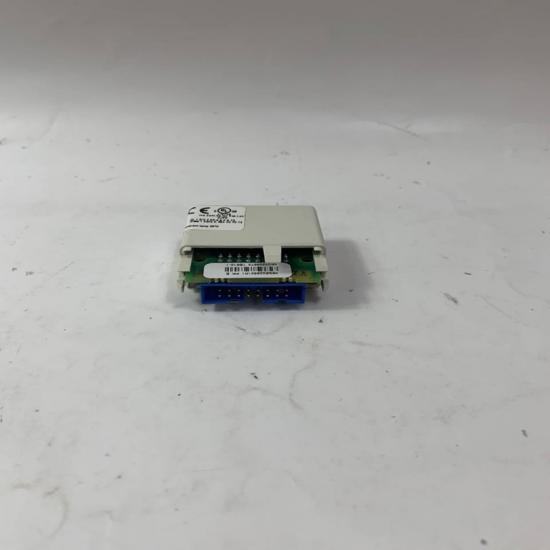

The structure and details of the product：
