ABB EM010-9317 voltage sensor

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB EM010-9317 Voltage Sensor – Product Information

1. Product Overview

The ABB EM010-9317 Voltage Sensor is a high-precision device designed for accurate and fast voltage measurement in AC and DC power systems.
Utilizing ABB’s advanced isolation and signal conversion technology, it provides safe and precise voltage monitoring even in high-voltage environments, ensuring reliable data for energy management, automation, and protection systems.
The EM010 series is widely recognized for its stability, strong EMC immunity, and suitability for demanding industrial applications.

2. Technical Specifications

• Model: EM010-9317

• Type: Voltage Sensor

• Measuring Range: 0…1000 V AC/DC

• Rated Input Voltage (Un): 690 V AC

• Output Signal: 4–20 mA or 0–10 V

• Accuracy: ±0.5 % FS

• Response Time: < 1 ms

• Power Supply: 24 V DC ±10 %

• Power Consumption: < 2 W

• Isolation Voltage: > 3 kV

• Operating Temperature: -40 ℃ to +70 ℃

• Storage Temperature: -55 ℃ to +85 ℃

• Insulation Category: CAT III / 1000 V

• Protection Degree: IP20

• Mounting: DIN-rail or panel mount

• Dimensions: approx. 90 × 45 × 70 mm

• Weight: approx. 0.25 kg

• Certifications: IEC 61010, CE, RoHS

3. Features and Advantages

1. High measurement accuracy – Stable output with minimal drift.

2. Fast response time – Less than 1 ms, ideal for dynamic voltage detection.

3. Full galvanic isolation – Ensures safety and prevents interference.

4. Excellent EMC performance – Designed for industrial environments.

5. Compact modular design – Easy to install in panels or switchgear.

6. Flexible signal output – Compatible with PLC, DCS, or SCADA systems.

7. High reliability – Tested under ABB’s stringent industrial standards.

4. Application Areas

• Industrial power distribution monitoring

• Substation measurement and control

• Smart grid and power quality analysis

• Motor and drive voltage sensing

• Rail power supply monitoring

• Energy storage and photovoltaic systems

• Industrial automation and process control

5. Precautions

1. Installation must be performed by qualified personnel.

2. Ensure complete power disconnection before wiring.

3. Proper grounding is required to ensure signal stability.

4. Do not exceed rated voltage limits.

5. Regularly inspect terminal connections.

6. Use protective housing in humid or dusty environments.

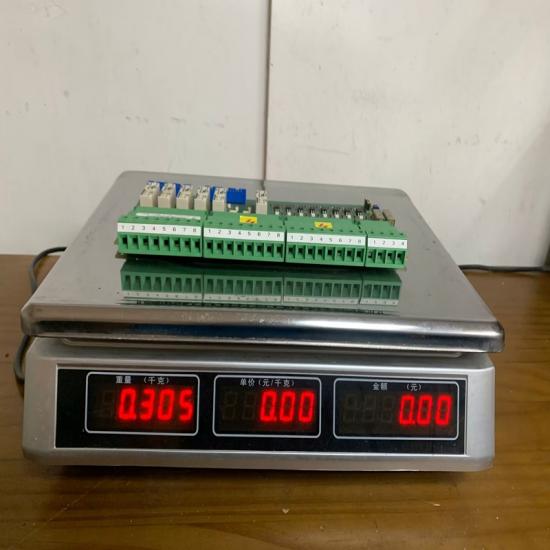

The structure and details of the product：
