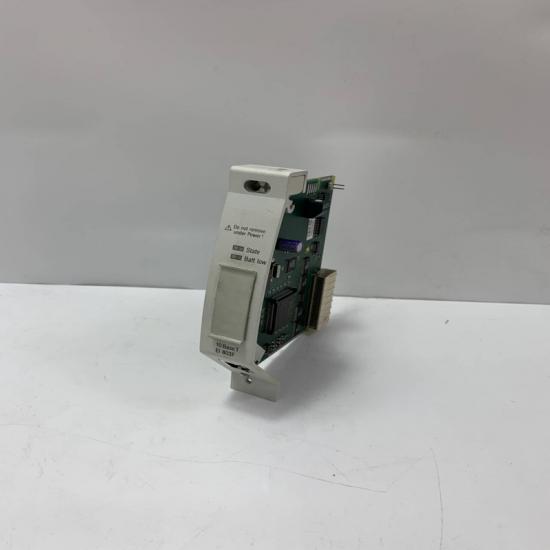

ABB EI803F 3BDH000017R1 Ethernet Communication Module

Product Overview

The ABB EI803F 3BDH000017R1 is a high-performance Ethernet communication module designed for industrial automation systems. As part of ABB's 800xA control system, this module serves as a critical component for network connectivity and data exchange in demanding industrial environments .

Technical Specifications

General Parameters

• Brand: ABB

• Model: EI803F 3BDH000017R1

• Type: Ethernet communication module

• Compatibility: ABB 800xA control system

• Dimensions: Standard industrial module size (exact dimensions vary by configuration)

• Weight: Approximately 2kg

Communication Features

• Network Protocol: Supports MB+ network with 1MBPS data transfer rate

• Interface Types:

  • Dual RJ45 Ethernet ports (CN1, CN2)

  • Two RJ45 serial ports (COM3, COM4)

• Serial Port Specifications:

  • COM3: RS-232C with modem control signals

  • COM4: Isolated port for configuration tools

• Communication Standards: Modbus protocol (industrial standard)

Performance Characteristics

• Data Processing: Powerful computing capability for complex control and data processing tasks

• Redundancy Support: CPU redundancy for high availability

• EMC Certification: High reliability in industrial environments

Key Features

1. High-Speed Communication: MB+ network provides 1MBPS transfer rate with token communication strategy for high reliability

2. Redundant Design: Supports A/B dual communication channels for critical applications

3. Multiple Interface Options: Combines Ethernet and serial communication capabilities in one module

4. EMC Certified: Ensures reliable operation in electrically noisy industrial environments

5. System Integration: Seamlessly integrates with ABB 800xA control system and other industrial networks

Application Fields

1. Industrial Automation: Distributed control systems in manufacturing plants

2. Process Industries: Oil refineries, chemical plants, and other continuous process facilities

3. Power Systems: Generation and distribution network monitoring

4. Water Treatment: Automation of filtration and pumping systems

5. Building Automation: Integration with HVAC and other facility systems

System Integration

The EI803F module is designed to work with:

• ABB 800xA control system

• Various industrial networks including MB+ and Modbus

• Other ABB automation components through standard interfaces

Installation and Operation Notes

1. Network Configuration: Properly configure MB+ network parameters for optimal performance

2. Redundancy Setup: Implement A/B channel redundancy for critical applications

3. Environmental Conditions: Install in controlled environments within specified temperature ranges

4. Maintenance: Regular inspection of connections and network status indicators
