ABB DSTD150A Digital Connection Unit

1. Key Parameters

• Product Model: DSTD150A
• Product Series: ABB AC500 Series Industrial Mid-Density Digital Connection Units (Digital I/O Wiring Management)
• Core Function: Provides 20-channel digital I/O (10 input + 10 output, fixed configuration); supports 24V DC signal transmission for low-to-medium power devices (≤800mA per output); integrates passive noise filtering and per-channel overcurrent protection; enables batch wiring diagnostics via status LEDs; supports DIN rail mounting; ensures stable signal transmission between medium-scale digital device clusters and AC500 digital I/O modules
• Electrical & Signal Specifications:

  Parameter	Details	Performance Metrics
  Signal Compatibility	- I/O Configuration: 20 channels (10 digital input + 10 digital output, fixed) - Supported Signals: Digital dry contact, NPN/PNP open-collector signals (24V DC) - Input Impedance: 1.5kΩ (24V DC input) - Output Current: Max 800mA per channel (continuous); 1.5A peak per channel (10ms) - Switching Speed: <0.8ms (digital signal transition) - Input Voltage Range: 19V DC~30V DC	20-channel design consolidates wiring for mid-scale I/O clusters (e.g., 6 photoelectric sensors + 4 limit switches + 5 relays + 5 small solenoids); <0.8ms switching speed supports high-response applications (e.g., automated sorting lines, precision part positioning); 800mA output capacity covers most industrial low-to-medium power digital actuators
  Signal Protection & Filtering	- Overcurrent Protection: 10× 1A slow-blow fuses (output channels, replaceable via front panel) - Noise Filtering: Passive RC low-pass filter (800Hz cutoff) for digital inputs; 50Hz/60Hz notch filter for line noise suppression - ESD Protection: 10kV contact discharge / 15kV air discharge (IEC 61000-4-2) per channel - Reverse Polarity Protection: Diode-based (input channels and power supply, ≤24V DC)	1A slow-blow fuses protect AC500 digital I/O modules (e.g., DSMB178) from shorted actuator wires (e.g., frayed solenoid cables); RC filters reduce electrical noise from VFDs/motors by 60%~80%; 10kV ESD protection safeguards against static discharge during high-volume wiring maintenance

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 110mm (W) × 85mm (H) × 60mm (D) - Mounting Type: DIN rail mount (EN 50022, 35mm, tool-less snap-on) - Housing Material: Flame-retardant thermoplastic (UL 94 V0) with reinforced edges - Weight: Approximately 380g - Indicators: 20× channel status LEDs (green = active; red = overcurrent/fault); 1× power LED (green = 24V present); 1× fault summary LED (yellow = 1+ channel fault)	Mid-size form factor fits in standard AC500 control cabinets without wasting space; reinforced edges resist accidental impacts during wiring; summary LED enables quick system health checks (no need to scan all 20 channel LEDs), simplifying troubleshooting
  Environmental Ratings	- Operating Temperature Range: -25℃~+70℃ (-13℉~158℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6) - Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27) - EMC Compliance: EN 61000-6-2 (immunity: Level 3); EN 61000-6-3 (emission: Class B)	-25℃~+70℃ range suits unconditioned industrial spaces (e.g., factory floors, outdoor utility boxes); vibration resistance prevents terminal loosening in high-motion environments (e.g., near conveyors); Level 3 EMC immunity avoids interference from industrial equipment (e.g., welding machines)

• Protection & Compliance Specifications:

  Parameter	Details	Performance Metrics
  Protection Features	- Short-Circuit Protection: Current limiting (≤1.2A per output channel) - Overvoltage Protection: 36V DC clamp (transient suppression diode) for input/output channels - Power Supply Protection: Reverse polarity diode + 2A slow-blow fuse (main power input)	Current limiting prevents damage from direct short circuits; transient suppression diodes withstand voltage spikes from faulty power supplies; main power fuse protects the unit from catastrophic damage during power anomalies
  Compliance Standards: CE, UL 508, CSA C22.2 No.14, IEC 61131-2 (industrial control), IEC 61000-6-2 (EMC), RoHS 2.0, ISO 9001

2. Core Features

• 20-Channel Mid-Density Digital I/O (10 In + 10 Out): Consolidates 20 digital signals into a single unit—eliminates scattered discrete terminal blocks, reducing cabinet wiring time by 45% vs. traditional setups; ideal for mid-scale systems (e.g., 8-sensor + 7-actuator automated assembly cells) that require more capacity than compact boards but less than high-density modules.
• Medium Power Output Capacity (800mA/Channel): Handles a wider range of digital actuators (e.g., 24V DC relays, medium-sized solenoids, small fans) without external relays—avoids wiring complexity and component redundancy; 1.5A peak current accommodates actuator inrush (e.g., solenoid startup), preventing false overcurrent triggers.
• Enhanced Fault Protection & Noise Suppression: 1A fuses + 10kV ESD + overvoltage/short-circuit safeguards—comprehensive protection for AC500 I/O modules against common industrial faults; 800Hz RC filters + 50Hz/60Hz notch filter suppress noise from nearby equipment (VFDs, motors), ensuring stable signal transmission and avoiding false sensor triggers.
• Intuitive Diagnostics: 20 individual status LEDs + fault summary indicator—technicians can quickly locate faulty channels (red LED = blown fuse/overcurrent) and confirm system health via the summary LED (yellow = 1+ fault); reduces troubleshooting time from hours to minutes in mid-scale systems.
• Industrial-Grade Durability: UL 94 V0 flame-retardant housing + -25℃~+70℃ operating range—withstands harsh industrial conditions (dust, moisture, temperature fluctuations) that damage low-grade connection units; 20g shock resistance survives accidental impacts during cabinet maintenance, extending service life to 8+ years.
• Tool-Less Installation & Maintenance: Snap-on DIN rail mounting + front-access fuse compartment—installs in <2 minutes (no brackets/tools); fuse compartment opens without removing the unit from the rail, enabling fast fuse replacement during maintenance (no wiring disconnection required).
• Seamless AC500 Integration: Designed for direct compatibility with AC500 digital I/O modules (e.g., DSMB178 32-channel digital I/O)—connects via standard 24V DC wiring; terminal blocks accept 22AWG~16AWG copper wires (ideal for digital signals); no configuration needed, ensuring plug-and-play deployment.

3. Application Fields

• Manufacturing Automation: Mid-Scale Assembly Lines:
  • Electronics SMT Factories: Connects sensors/actuators for PCB handling lines—10 input channels handle 6 photoelectric sensors (PCB presence) + 4 limit switches (conveyor alignment); 10 output channels control 5 feeder relays + 3 gripper solenoids + 2 indicator lights; noise filtering prevents interference from SMT placement machines, avoiding false sensor triggers.
  • Automotive Component Assembly: Consolidates wiring for dashboard assembly cells—10 input channels handle 5 proximity sensors (part alignment) + 5 pressure switches (clamp force); 10 output channels control 4 clamp solenoids + 4 conveyor relays + 2 alarm buzzers; 800mA output capacity handles medium-sized clamp solenoids, eliminating external relays.
• Process Control: Auxiliary Digital Systems:
  • Chemical Plants: Connects digital devices for reagent mixing auxiliaries—10 input channels handle 6 float switches (tank level) + 4 temperature switches (heater status); 10 output channels control 5 valve solenoids + 3 pump relays + 2 stirrer motors; reverse polarity protection prevents damage from incorrect sensor wiring (common during maintenance).
  • Water Treatment Facilities: Manages wiring for filtration unit controls—10 input channels handle 6 flow switches (filter inflow) + 4 pressure switches (filter clogging); 10 output channels control 6 backwash valve solenoids + 2 fan relays + 2 status LEDs; -25℃~+70℃ range suits outdoor pump station cabinets.
• Energy & Utilities: Substation Auxiliaries:
  • Small Power Substations: Connects digital devices for transformer cooling systems—10 input channels handle 6 temperature switches (transformer oil) + 4 fan status sensors; 10 output channels control 6 fan relays + 2 valve solenoids + 2 alarm outputs; vibration resistance prevents terminal loosening from transformer operation.
  • Solar PV Microgrids (500kW~1MW): Connects inverter auxiliary devices—10 input channels handle 6 current switches (PV string status) + 4 voltage switches (DC bus); 10 output channels control 6 cooling fan relays + 2 disconnect relays + 2 indicator lights; EMC immunity resists interference from inverters, ensuring stable signal transmission.
• Building Automation: Large Commercial Spaces:
  • Shopping Malls: Connects controls for HVAC zone management—10 input channels handle 6 occupancy sensors (store zones) + 4 temperature switches (zone comfort); 10 output channels control 6 damper actuators + 2 fan relays + 2 light switches; mid-density design fits in central HVAC control panels, reducing cabinet space.
  • Data Centers: Manages wiring for server rack cooling—10 input channels handle 6 temperature sensors (rack airflow) + 4 door switches (rack access); 10 output channels control 6 fan relays + 2 damper actuators + 2 alarm buzzers; UL 94 V0 housing meets data center fire safety standards.

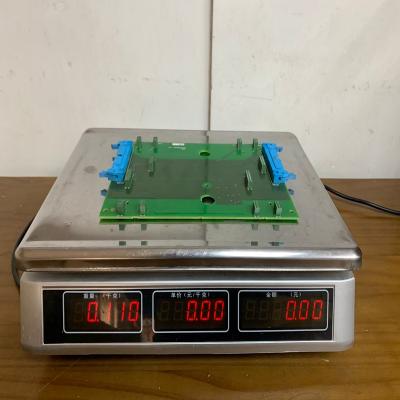

The structure and details of the product：
