ABB DI820 Digital Input Module

1. Product Overview

2. Core Specifications

3. Key Functions

3.1 Flexible Signal Compatibility

• Dual Polarity Support: Software-configurable sinking (NPN) or sourcing (PNP) input per channel eliminates the need for external converters, accommodating diverse sensor types (e.g., NPN inductive sensors for metal detection, PNP photoelectric switches for product counting). This flexibility reduces inventory costs by supporting mixed sensor fleets in the same system.
• 16-Channel Capacity: 2 groups of 8 channels provide sufficient density for medium-scale applications (e.g., 16 status signals from mixers, pumps, and valves in a food processing line), with group-level isolation preventing cross-faults between groups.

3.2 Enhanced Signal Handling

• Faster Response: <5ms standard response time (with <2ms high-speed mode) captures quicker signals than entry-level modules—suitable for medium-speed processes like conveyor belt synchronization or filling machine interlocks, where 10ms delays (common in DI811) could cause inefficiencies.
• Precise Debounce Control: 0.1ms~100ms adjustable debounce time filters noise from both fast solid-state sensors (e.g., 0.1ms for 10kHz photoelectric switches) and slow mechanical switches (e.g., 50ms for heavy-duty limit switches), ensuring signal integrity in varied environments.

3.3 Improved Diagnostics & Integration

• Channel-Level Status Monitoring: Each channel features a green "INPUT ON" LED for visual confirmation of signal presence, while a red "MODULE FAULT" LED alerts to critical issues (e.g., power loss, communication failure). Diagnostic data (e.g., open circuits) is transmitted to the AC 800M DCS for remote monitoring, reducing on-site troubleshooting time.
• Plug-and-Play Setup: Seamlessly integrates with S800 I/O racks via ABB link cables and pairs with standard termination units (e.g., TU840). All configurations (polarity, debounce) are managed via Control Builder M, eliminating the need for hardware jumpers and simplifying commissioning.

4. Typical Applications

• Food & Beverage Processing: Monitors 16 DI signals (e.g., filling machine nozzles, conveyor photoeyes, door interlocks) — dual polarity support accommodates mixed NPN/PNP sensors, and 0.1ms debounce filters noise from stainless steel processing equipment.
• HVAC System Control: Captures 16 status signals (e.g., air handler run/stop, damper position switches, filter clog alarms) for a commercial building HVAC system — <5ms response time ensures timely adjustments to temperature setpoints.
• Medium-Scale Water Treatment: Tracks 16 DI signals (e.g., pump status, valve open/closed feedback, chemical tank level switches) — 1kV isolation resists interference from nearby water pump motors.

5. Usage Notes

1. Polarity Configuration:
   • Set input type (sinking/sourcing) for each channel via Control Builder M before connecting sensors. Mismatched polarity causes no-signal errors—verify with a multimeter or ABB TY801 shunt stick after configuration.
2. Wiring & EMI Protection:
   • Use shielded twisted-pair cables (0.2–1.5mm²) for field wiring, especially in high-EMI environments (e.g., near large motors). Ground the shield at the termination unit (TU840/TU845) end to avoid ground loops.
   • For high-speed mode (<2ms response), limit cable length to ≤50m to prevent signal degradation—longer cables may cause delayed or missed pulses.
3. Debounce Optimization:
   • Match debounce time to sensor type: 0.1ms–1ms for solid-state sensors (e.g., photoelectric switches); 10ms–100ms for mechanical switches (e.g., float switches) to filter contact bounce. Test with actual sensors to validate settings.
4. Environmental Considerations:
   • Mount the module away from heat sources (e.g., power supplies) in control cabinets—maintain ≥20mm clearance for airflow to prevent overheating, especially in high-temperature industrial environments (e.g., bakery processing lines).
   • In humid areas (e.g., beverage plants), use a cabinet dehumidifier to keep relative humidity <85% (non-condensing) — moisture causes terminal corrosion and isolation failure.
5. Maintenance Checks:
   • Perform monthly channel tests with a shunt stick (TY801) to verify signal detection and LED functionality. Clean terminals quarterly with a dry brush to remove dust and debris.
   • Replace the module if the red "MODULE FAULT" LED remains lit after power cycling and wiring checks—internal faults (e.g., communication chip failure) cannot be repaired in the field

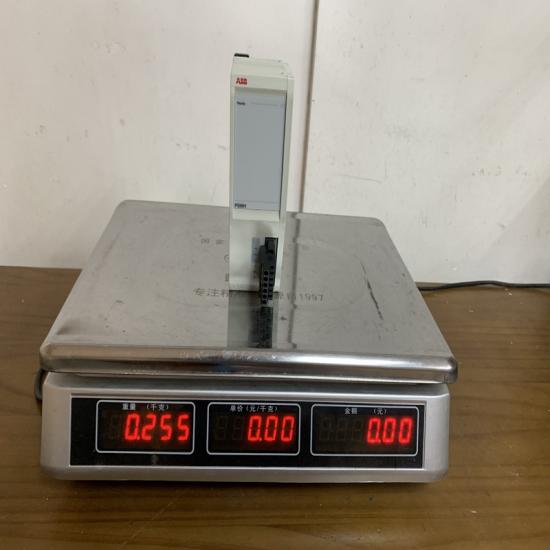

The structure and details of the product：
