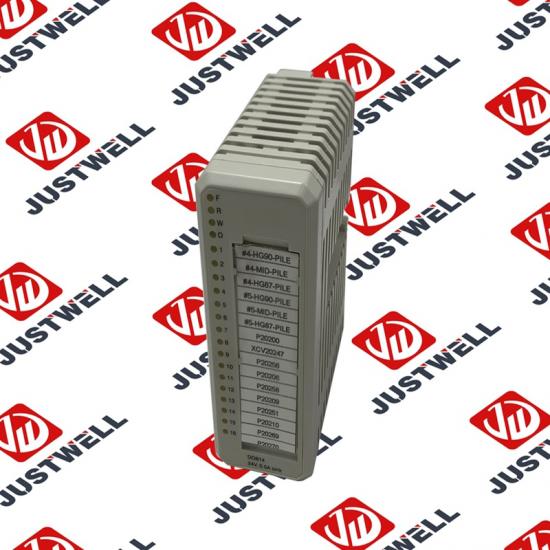

ABB DI811 Digital Input Module

1. Product Overview

2. Core Specifications

3. Key Functions

3.1 Reliable Basic Signal Capture

• 16-Channel Discrete Input: 2 groups of 8 channels provide sufficient capacity for monitoring low-complexity systems (e.g., 16 status signals from pumps, valves, or limit switches in a small packaging line). The fixed 24V DC input aligns with the most common industrial sensor voltage, eliminating the need for voltage converters.
• Sinking (NPN) Compatibility: Optimized for low-cost NPN sensors (e.g., inductive proximity sensors, mechanical limit switches)—the most widely used sensor type in general automation, reducing component costs for end-users.

3.2 Noise Filtering & Signal Integrity

• Configurable Debounce Time: 2ms–16ms debounce settings filter electrical noise and contact bounce from mechanical switches (e.g., a limit switch with bouncing contacts). This prevents false "ON/OFF" triggers in noisy environments (e.g., workshops with nearby motors), ensuring stable signal transmission to the DCS.
• Group-Level Isolation: 500V AC isolation between the two 8-channel groups prevents fault propagation (e.g., a short circuit in Group 1 does not affect signals in Group 2)—a basic safeguard for system reliability.

3.3 Simple Integration & Maintenance

• Plug-and-Play Compatibility: Seamlessly integrates with ABB’s S800 I/O racks and standard termination units (e.g., TU840). No specialized hardware configuration is required—simply mount the module, connect via ABB link cables, and configure via Control Builder M.
• Clear LED Diagnostics: Each channel has a green "INPUT ON" LED (illuminates when a signal is detected) and a red "GROUP FAULT" LED (triggers for group-level issues like short circuits). Technicians can quickly identify channel status or faults without additional test equipment.

4. Typical Applications

• Small Manufacturing Machines: Monitors 16 DI signals (e.g., machine door interlocks, tool presence sensors, emergency stops) for a desktop injection molding machine—24V DC sinking input matches the machine’s NPN sensors.
• Auxiliary Equipment Control: Captures 16 status signals (e.g., pump run/stop, filter clog alarms) for a small water treatment skid—configurable debounce (8ms) filters noise from water pump motors.
• Warehouse Conveyor Systems: Tracks 16 DI signals (e.g., photoeye detection of packages, conveyor section status) for a low-speed warehouse conveyor—<10ms response time is sufficient for slow-moving goods.

5. Usage Notes

1. Input Type Limitation:
   • Only supports sinking (NPN) inputs—do not connect sourcing (PNP) sensors directly. Use an external NPN-to-PNP converter if PNP sensors are required, or upgrade to modules like DI840 for dual-polarity support.
2. Voltage Compatibility:
   • Ensure field sensors use 24V DC power (18–30V DC tolerance). Connecting 12V DC or 48V DC sensors will cause signal loss or module damage.
3. Wiring Guidelines:
   • Use 0.2–1.5mm² stranded copper wires for field connections. Pair with ABB termination units (e.g., TU840) and ground shielded cables at the termination unit end to reduce EMI.
   • Avoid routing DI811 wiring near high-voltage cables (e.g., 480V AC motor cables) to prevent interference—group-level isolation (500V AC) is not designed for extreme EMI environments.
4. Configuration Tips:
   • Set debounce time based on sensor type: Use 2ms–4ms for solid-state sensors (e.g., photoelectric switches); 8ms–16ms for mechanical switches (e.g., limit switches) to suppress contact bounce.
5. Maintenance Checks:
   • Perform monthly visual inspections: Verify LED status for each channel and clean module terminals with a dry brush to remove dust (avoids high resistance).
   • Replace the module if the red "GROUP FAULT" LED remains lit after checking wiring—group-level faults (e.g., degraded isolation) cannot be repaired in the field
