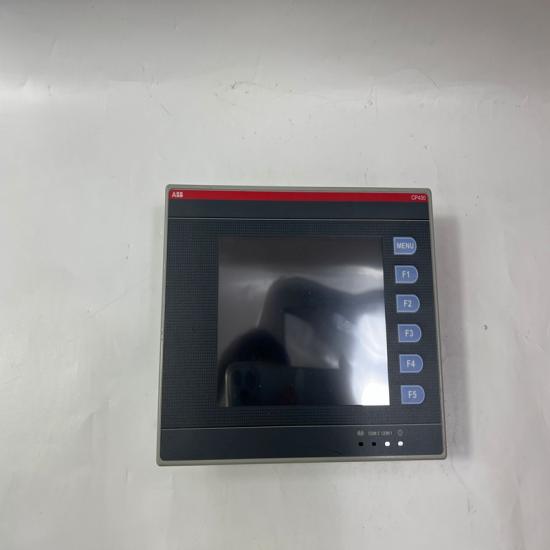

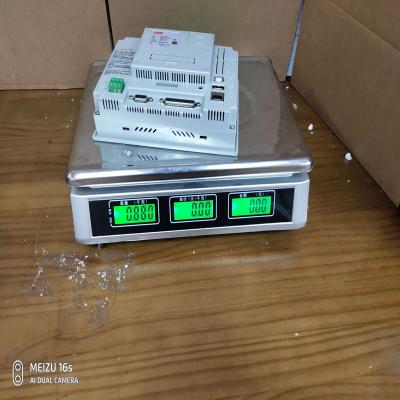

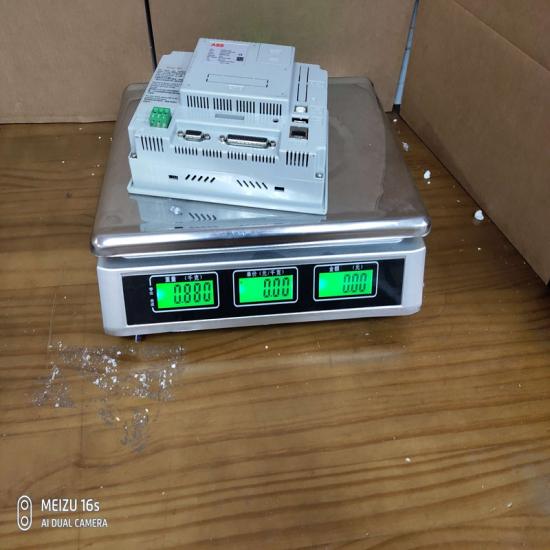

ABB CP430T Touch Screen

1. Key Parameters

• Product Model: CP430T
• Product Series: ABB CP Series Compact Industrial HMI Touch Screens
• Core Function: Enables operator interaction with automation systems; displays real-time process data, alarms, and trends; allows manual adjustment of setpoints and device commands
• Display & Touchscreen Specifications:
  • Screen Size: 3.5 inches (diagonal; compact design for space-constrained installations)
  • Display Type: Color TFT LCD (transmissive, anti-glare coating for visibility in bright environments)
  • Resolution: 320 × 240 pixels (QVGA; clear text and graphics for basic process mimics)
  • Brightness: 300 cd/m² (sufficient visibility in industrial control cabinets and semi-outdoor settings)
  • Contrast Ratio: 250:1 (distinct differentiation of process symbols and status indicators)
  • Touchscreen Technology: Resistive touch (single-point; durable for gloves-on operation and industrial wear)
  • Touch Accuracy: ±3mm (ensures precise selection of small on-screen buttons)
  • Backlight Life: ≥40,000 hours (MTBF; minimizes maintenance for long-term operation)
• Communication Interfaces:
  • Serial Ports: 2× RS-485/RS-232 (selectable via software; supports Modbus-RTU, ASCII for legacy PLCs and sensors)
  • Ethernet Port: 1× 10/100Base-TX (RJ45; supports Modbus-TCP, Ethernet/IP for communication with modern controllers)
  • USB Port: 1× USB 2.0 Type A (for configuration backup, data logging, or external peripherals like mice)
• Electrical Specifications:
  • Power Supply: 24V DC (nominal); 18V~30V DC (wide input range for industrial power fluctuations)
  • Power Consumption: ≤8W (typical); ≤10W (maximum, with backlight at full brightness)
  • Isolation: 2.5kVrms (between power supply and communication ports; prevents ground loops)
  • Surge Protection: IEC 61000-4-5 (±2kV contact discharge; ±4kV air discharge for communication ports)
• Mechanical Specifications:
  • Housing Type: Flame-retardant plastic (UL94 V-0; resistant to impact, dust, and minor chemical splashes)
  • Installation Type: Panel-mounted (front-facing; standard cutout dimensions: 92mm × 70mm)
  • Dimensions (W×H×D): 100mm × 78mm × 45mm (ultra-slim profile for machine-mounted panels)
  • Weight: Approximately 200g
  • Protection Rating: IP65 (front panel; dust-tight, waterproof against low-pressure water jets—suitable for washdown-ready applications)
  • LED Indicators:
    • Power (PWR): Green (powered on); Red (power fault or under/overvoltage)
    • Communication (COM): Green (Ethernet/serial communication active); Blinking Green (data transmission)
    • Alarm (ALM): Red (active process alarms)
• Environmental Ratings:
  • Operating Temperature Range: 0℃~+50℃ (32℉~122℉)
  • Storage Temperature Range: -20℃~+60℃ (-4℉~140℉)
  • Humidity Tolerance: ≤90% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; no display or touchscreen failure)
  • Shock Resistance: 15g acceleration (11ms duration, IEC 60068-2-27; maintains structural integrity)
• Software & Compatibility:
  • Configuration Software: ABB Panel Builder (intuitive drag-and-drop interface with pre-built templates for basic screens)
  • Supported Controllers: ABB AC 500 PLCs, AC 800M DCS, Siemens S7-200/1200, Allen-Bradley Micro800, and Modbus/Ethernet/IP-compatible devices
  • Data Logging: Supports CSV data logging to USB storage (up to 10,000 data points; timestamped for compliance)
  • Alarm Management: Stores up to 5,000 alarm events (exportable via USB for troubleshooting)
• Compliance Standards: IEC 61131-2 (industrial control), EN 61000-6-2 (EMC immunity), UL 508 (industrial safety), CE, RoHS

2. Key Features

• Compact, Space-Saving Design: 3.5-inch screen and slim 45mm depth fit into tight machine-mounted panels or skid systems (e.g., small pumps, packaging machines) where larger HMIs (e.g., 5.7-inch CP450T) cannot be installed.
• IP65 Front Protection: Dust-tight and waterproof front panel enables direct installation in washdown environments (e.g., food processing machinery, dairy equipment) or dusty settings (e.g., small manufacturing cells) without additional enclosures.
• Dual Serial + Ethernet Connectivity: Combines Modbus-RTU (serial) and Modbus-TCP (Ethernet) to connect to both legacy devices (e.g., older AC 500 PLCs) and modern controllers—eliminating the need for protocol converters and simplifying integration.
• Gloves-On Resistive Touch: Durable resistive touchscreen supports operation with thin industrial gloves (common in assembly lines, electronics manufacturing) and resists scratches from tools or debris.
• Low Power Consumption: ≤10W maximum power draw makes it suitable for battery-powered or energy-constrained applications (e.g., mobile equipment, remote monitoring stations) where high-power HMIs are impractical.
• Simplified Configuration: ABB Panel Builder software offers pre-built templates for basic screens (e.g., pump status, tank levels, alarm lists), reducing HMI development time—ideal for small-scale automation projects with limited engineering resources.
• Cost-Effective Solution: Balances performance and affordability, making it a budget-friendly choice for auxiliary control stations (e.g., conveyor line monitoring, auxiliary pump control) where advanced HMI features (e.g., 10-point multi-touch) are unnecessary.

3. Application Fields

• Machine-Mounted Automation: Serves as a local operator interface for small equipment in:
  • Packaging Machinery: Controls small filling/sealing machines; displays batch counts, error codes, and motor status; enables manual speed adjustments.
  • Material Handling: Monitors conveyor belt tension, sensor status, and emergency stop triggers for small conveyor systems; allows operators to start/stop the belt locally.
  • Pump Stations: Controls auxiliary pumps (e.g., cooling water pumps); displays flow rates, pressure levels, and pump run time; triggers alarms for low pressure.
• Small-Scale Process Control: Supports monitoring/control in compact process systems:
  • Food & Beverage Small Lines: Controls tabletop pasteurizers or small mixing tanks; displays temperature profiles and batch timestamps; logs data for basic compliance.
  • Laboratory Automation: Interfaces with small-scale test rigs (e.g., chemical reaction vessels); displays pH levels, stirrer speed, and sample collection times.
  • Water Treatment Auxiliaries: Monitors small filtration units or chemical dosing pumps; displays filter pressure and chemical levels; alerts to filter clogging.
• Legacy System Upgrades: Modernizes older equipment with basic operator interfaces:
  • Aging Manufacturing Machines: Adds a touchscreen interface to 1990s-era PLC-based machines (e.g., small lathes, punch presses) that lack built-in HMIs; enables parameter adjustment without accessing the PLC directly.
  • Retrofit Projects: Replaces obsolete pushbutton panels with a compact touchscreen for AC 500-eCo-based retrofits of auxiliary systems (e.g., fan control, lubrication pumps).
• Remote Monitoring Stations: Provides local visibility in distributed systems:
  • Solar PV String Monitoring: Displays output voltage, current, and fault status for individual solar string inverters; connects via Ethernet to a central SCADA system.
  • Oil & Gas Wellhead Auxiliaries: Monitors small wellhead heaters or pressure sensors; transmits data via Modbus-RTU to a remote AC 800M DCS.

4. Precautions

• Controller Compatibility: Verify compatibility with target controllers (e.g., AC 500-eCo, Siemens S7-200) via ABB’s compatibility matrix. Unsupported controllers may cause communication failures or limited functionality (e.g., inability to read certain process variables).
• Touchscreen Calibration: Calibrate the resistive touchscreen via Panel Builder after installation or if touch accuracy degrades (e.g., after exposure to moisture). Poor calibration leads to incorrect button presses—critical for safety-related controls (e.g., emergency stop).
• Washdown Limitations: While the front panel is IP65-rated, avoid high-pressure water jets (>50 bar) or direct immersion in water. Clean with a damp cloth and mild, non-abrasive cleaner; abrasive chemicals (e.g., solvents) damage the anti-glare coating.
• Mounting Requirements: Ensure the panel cutout (92mm × 70mm) matches the specified dimensions. Use the provided mounting clips to secure the HMI—loose installation or oversized cutouts compromise the IP65 seal and increase vibration-related damage risk.
• Power Supply Stability: Use a regulated 24V DC power supply (with ±5% tolerance) to avoid voltage fluctuations that can cause screen flickering or unexpected shutdowns. Avoid sharing the power supply with high-current devices (e.g., motors) without a separate filter.
• Software Updates: Update the HMI’s firmware and Panel Builder software via USB (follow ABB’s step-by-step guide). Interrupted updates (e.g., power loss during installation) can corrupt the operating system, requiring factory reset.
• Maintenance Checks: Inspect quarterly:
  • Test touchscreen responsiveness (verify all on-screen buttons work correctly, especially safety-related controls).
  • Check for cracks or scratches on the display (replace if damaged to maintain IP65 protection).
  • Validate data logging (ensure CSV files are saved with accurate timestamps for compliance).
  • Clean Ethernet/USB ports with compressed air (remove dust to prevent intermittent connectivity issues)
