ABB CP-C.1 24/5.0 1SVR360563R1001 Power Supply Module

Product Overview

The ABB CP-C.1 24/5.0 power supply module is part of the ABB CP-C series, designed to provide a stable and reliable 24 V DC power supply for industrial automation and control systems. Featuring a compact design, wide AC input range, and comprehensive protection functions, it ensures long-term dependable operation in demanding industrial environments.

Technical Specifications

• Model: CP-C.1 24/5.0

• Order Number: 1SVR360563R1001

• Input Voltage Range: 85…264 V AC

• Input Frequency: 50 / 60 Hz

• Rated Output Voltage: 24 V DC

• Output Current: 5.0 A

• Rated Output Power: 120 W

• Output Voltage Adjustment: Adjustable (typ. ±10%)

• Efficiency: Up to approx. 90%

• Mounting: DIN rail mounting (35 mm)

• Cooling: Natural convection

• Operating Temperature: -25 °C … +70 °C (with derating)

• Protection Functions:

  • Overload protection

  • Short-circuit protection

  • Overvoltage protection

• Electrical Isolation: Input / output isolation

• Housing: Flame-retardant plastic enclosure

Advantages and Features

1. Wide AC Input Range
   Supports 85–264 V AC, suitable for global power supply systems.

2. Reliable 24 V DC Output
   Provides stable power for PLCs, sensors, relays, and other control devices.

3. High Efficiency and Low Heat Generation
   Optimized switching technology reduces energy loss and improves service life.

4. Integrated Protection Functions
   Protects connected equipment against abnormal operating conditions.

5. Compact Design
   Saves space in control cabinets and simplifies system integration.

6. ABB Industrial Quality
   Designed for continuous industrial operation with high reliability and low maintenance requirements.

Typical Applications

• Industrial automation systems

• PLC and DCS control panels

• Machinery and production lines

• Electrical distribution cabinets

• Instrumentation and sensor power supply

• Building automation systems

Precautions

1. Ensure the input voltage matches the specified range before installation.

2. Provide adequate ventilation and avoid continuous full-load operation at high ambient temperatures.

3. Do not reverse polarity at the output terminals.

4. Apply output derating according to ambient temperature conditions.

5. Always disconnect the input power before wiring or maintenance.

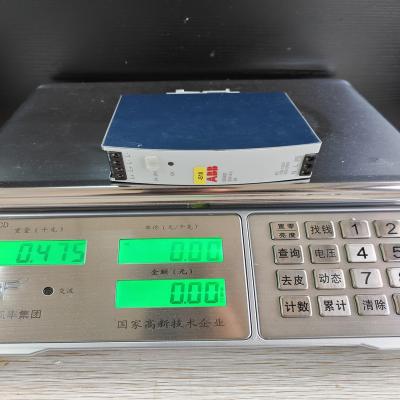

The structure and details of the product：
