ABB CM30/1S0S0E0/STD Controller Module

ABB CM30/1S0S0E0/STD Controller Module

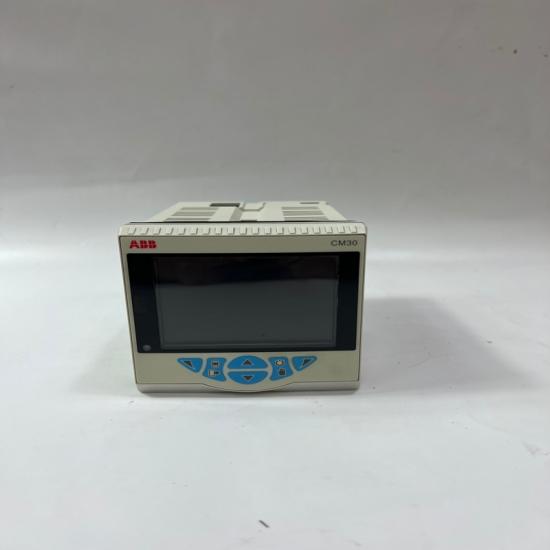

The ABB CM30/1S0S0E0/STD is a process controller (PID controller) from ABB’s ControlMaster CM30 series, used for temperature, pressure, flow, and general process control in industrial automation systems.

Product Information

• Brand: ABB
• Series: ControlMaster CM30
• Model: CM30/1S0S0E0/STD
• Type: PID Process Controller / Universal Controller
• Mounting: 1/4 DIN panel mount (97 × 97 mm)
• Power Supply: 24 V DC (some variants support wide AC/DC supply)
• Inputs: Universal (RTD, thermocouple, analog signals)
• Outputs: Relay + analog outputs (configuration dependent)
• Display: TFT / LCD multi-color screen
• Communication: Modbus / RS485 / optional Ethernet modules

What it actually is

This is not a PLC and not a control module for machinery logic.

It is a process loop controller, meaning it performs automatic regulation of a physical process:

• Reads sensor signal (temperature / pressure / flow)
• Compares with setpoint
• Automatically adjusts output (heater / valve / pump)

System Role (Simple)

Sensor (RTD / transmitter)
→ CM30 controller
→ PID calculation
→ output signal (relay / analog)
→ heater / valve / actuator

So it is a self-contained automatic control device for process loops.

Key Features

• Advanced PID control algorithm (auto/manual modes)
• Universal input support (RTD, thermocouple, mA/V signals)
• Multiple output types (relay, analog, logic)
• Configurable control strategies (heating/cooling, cascade options)
• Full-color display for process visualization
• Alarm and diagnostic functions

Typical Applications

• Temperature control systems (ovens, furnaces)
• Plastic injection molding machines
• HVAC and environmental systems
• Chemical process control
• Food & beverage production lines
• Water treatment process regulation

Advantages

• High-precision closed-loop control
• Replaces simple ON/OFF thermostats with PID accuracy
• Easy configuration via front panel
• Stable industrial-grade process regulation
• Supports multiple sensor types

Important Notes

• This is not a PLC module ❌
• It does not run ladder logic or automation sequences ❌
• It is a standalone controller for one process loop ✔
• Requires correct tuning (PID parameters) for stable operation

Precautions

• Incorrect PID tuning may cause oscillation or instability
• Must match correct sensor type and scaling
• Wiring must follow signal isolation rules (noise sensitive)
• Not suitable for multi-axis or machine sequence control
• Ensure correct power supply variant (AC/DC depending model)
