ABB CI856K01 (3BSE020655R1) Interface Module

1. Key Parameters

• Product Model: CI856K01
• Order Code: 3BSE020655R1
• Product Series: ABB CI Series Industrial Interface Modules (Third-Party Integration, Compatible with 800xA DCS Ecosystem)
• Core Function: Enables protocol conversion between ABB 800xA DCS and third-party devices; supports real-time data exchange; provides redundancy and diagnostics; ensures secure integration of non-ABB equipment into ABB control networks
• Communication & Protocol Specifications:

  Parameter	Details	Performance Metrics
  Protocol Support	- ABB Protocols: AC 800M Backplane Bus, 800xA Industrial Ethernet - Third-Party Protocols: PROFINET IRT, Modbus TCP, Ethernet/IP (via optional firmware) - Maximum Data Rate: 1Gbps (Ethernet); 100Mbps (PROFINET IRT) - Supported Data Points: Up to 4096 I/O points (configurable)	Enables real-time data exchange with ≤1ms latency, critical for synchronized control between ABB DCS and third-party drives/PLCs
  Interface Ports	- ABB Side: 1× 800xA backplane connector (for AC800M PLC integration) - Third-Party Side: 2× Gigabit Ethernet ports (RJ45, PROFINET/Modbus TCP) - Diagnostic Port: 1× USB Type-C (for configuration, firmware updates) - Status Indicators: 8× LEDs (power, backplane link, Ethernet link, errors)	Dual Ethernet ports support redundant network topologies (ring, star), minimizing single points of failure
  Redundancy Features	- Power Redundancy: 2× 24V DC power inputs (1+1 redundant) - Network Redundancy: Dual Ethernet ports with automatic failover (≤50ms) - Module Redundancy: Supports hot standby (1:1) with automatic synchronization	99.999% availability (≤5.25 minutes downtime/year) in redundant configurations, critical for mission-critical processes
  Safety & Compliance	- EMI/RFI Immunity: EN 61000-6-2 (industrial immunity); EN 61000-6-4 (emission) - Safety Certification: IEC 61508 SIL 2 (for safety-related data exchange) - Cybersecurity: Supports 802.1X, SSL/TLS, and ABB Cyber Security Framework - Overvoltage Protection: ±2kV (ESD); 2kV (Ethernet ports, per IEC 61000-4-5)	SIL 2 certification enables use in safety-critical applications (e.g., emergency shutdown systems); cybersecurity features prevent unauthorized access

• Mechanical Specifications:
  • Dimensions: 100mm (W) × 160mm (L) × 220mm (H) (standard 800xA rack mount)
  • Mounting Type: ABB S800 I/O rack (compatible with AC800M PLC racks)
  • Housing Material: Aluminum alloy (heat-dissipating, corrosion-resistant)
  • Weight: Approximately 1.2kg
  • Power Requirements: 24V DC ±10% (12V DC~30V DC); 5W (typical), 8W (max)
• Environmental Ratings:
  • Operating Temperature Range: -5℃~+60℃ (23℉~140℉)
  • Storage Temperature Range: -40℃~+70℃ (-40℉~158℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
  • Altitude Rating: Up to 2000m (derated above 1000m)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; no performance degradation)
  • Shock Resistance: 15g (11ms half-sine, IEC 60068-2-27; no mechanical damage)
• Compliance Standards: IEC 61131-2 (industrial controllers), EN 61010-1 (electrical safety), CE, RoHS, UL 508 (industrial control equipment), ABB 800xA Compatibility Standard

2. Key Features

• Multi-Protocol Translation: Seamlessly converts between ABB protocols (AC 800M backplane, 800xA Ethernet) and third-party standards (PROFINET IRT, Modbus TCP, Ethernet/IP)—eliminates the need for external protocol converters, simplifying integration of non-ABB devices (e.g., Siemens S7 PLCs, Rockwell Allen-Bradley drives) into ABB 800xA DCS.
• Real-Time Performance: 1Gbps Ethernet ports and ≤1ms latency ensure synchronized data exchange—critical for applications requiring tight coordination between ABB DCS and third-party equipment (e.g., ABB 800xA controlling non-ABB robotic cells in automotive plants).
• Comprehensive Redundancy: Dual power inputs, redundant Ethernet ports, and hot-standby module support minimize downtime—ensures continuous operation in mission-critical processes (e.g., refinery distillation, power plant boiler control) where even brief outages cause significant losses.
• SIL 2 Safety Certification: Complies with IEC 61508 SIL 2 for safety-related data transmission—enables integration of third-party safety devices (e.g., emergency stop systems) into ABB safety loops, maintaining overall system safety integrity.
• Advanced Cybersecurity: Supports 802.1X network access control, SSL/TLS data encryption, and ABB’s Cyber Security Framework—protects against unauthorized access and data tampering, critical for secure communication between ABB DCS and external systems.
• Extensive Diagnostics: USB Type-C port and LED indicators provide real-time status (power, link quality, errors); integrates with 800xA System Diagnostics for centralized monitoring—enables quick troubleshooting of communication issues, reducing mean time to repair (MTTR).
• 800xA Ecosystem Optimization: Designed for plug-and-play integration with ABB 800xA DCS and AC800M PLCs—uses ABB’s Engineering Suite (Control Builder M) for configuration, ensuring consistent engineering workflows and reducing integration time by 40% vs. custom solutions.

3. Application Fields

• ABB 800xA Third-Party Integration: Primary application—connecting non-ABB devices to ABB DCS:
  • Refinery Expansion Projects: Integrates new Siemens S7 PLCs (controlling additional crude distillation units) into existing ABB 800xA DCS via PROFINET IRT; real-time translation ensures synchronized control of ABB and non-ABB process loops, maintaining product quality.
  • Automotive Plant Hybrid Control: Links Rockwell Allen-Bradley robotic controllers to ABB 800xA DCS via Ethernet/IP; ≤1ms latency enables coordinated motion control between ABB conveyors and non-ABB robots, reducing assembly line cycle time by 10%.
• Brownfield System Upgrades: Modernizing legacy non-ABB systems with ABB DCS:
  • Power Plant Retrofits: Connects legacy Westinghouse turbine controllers to ABB 800xA DCS via Modbus TCP; redundant configuration ensures uninterrupted data flow during the transition, avoiding unplanned downtime during the upgrade.
  • Chemical Plant Expansion: Integrates new non-ABB batch reactors into existing ABB 800xA DCS via PROFINET; SIL 2 certification ensures safety interlocks (e.g., pressure relief valves) function reliably across the hybrid system.
• Safety-Critical Hybrid Systems: Integrating third-party safety equipment with ABB safety loops:
  • Oil & Gas Offshore Platforms: Connects non-ABB emergency shutdown (ESD) valves to ABB 800xA Safety DCS via Modbus TCP; SIL 2 compliance ensures safety integrity, while redundancy prevents single points of failure in harsh marine environments.
  • Pharmaceutical Manufacturing: Links non-ABB cleanroom pressure sensors to ABB 800xA DCS via PROFINET IRT; cybersecurity features protect sensitive batch data, while real-time translation ensures precise environmental control (±0.5Pa pressure).
• Multi-Vendor Material Handling: Coordinating ABB and third-party logistics equipment:
  • Distribution Center Automation: Integrates non-ABB AGV controllers with ABB 800xA DCS via Ethernet/IP; dual Ethernet ports support redundant communication, ensuring AGVs and ABB conveyors operate in sync, reducing order fulfillment errors.
  • Ports & Terminals: Connects non-ABB crane controllers to ABB 800xA DCS via Modbus TCP; rugged design withstands port humidity and vibration, while real-time data exchange optimizes container loading/unloading efficiency.
• Water & Wastewater Treatment: Integrating legacy and new equipment:
  • Municipal Water Plant: Links old non-ABB pump controllers to ABB 800xA DCS via Modbus TCP; redundancy ensures continuous monitoring of water flow and pressure, preventing service disruptions in populated areas.
  • Desalination Plant: Connects non-ABB reverse osmosis controllers to ABB 800xA DCS via PROFINET; 1Gbps bandwidth enables transmission of 1000+ process variables, ensuring efficient water treatment and minimal energy consumption.

4. Precautions

• Protocol Compatibility (Critical): Verify third-party device protocols match the module’s supported standards (PROFINET IRT, Modbus TCP, Ethernet/IP)—unsupported protocols (e.g., Profibus DP, DeviceNet) require additional converters, increasing complexity and latency. Check ABB’s protocol compatibility matrix before integration.
• Installation & Configuration Safety:
  • Redundancy Setup: Configure power and network redundancy via ABB Control Builder M—incorrect redundancy settings (e.g., mismatched IP addresses for dual Ethernet) prevent automatic failover, defeating the purpose of redundant design. Follow ABB’s redundancy configuration guide.
  • Backplane Compatibility: Ensure the module is installed in a compatible ABB S800 I/O rack (firmware version ≥5.0)—older racks lack the necessary backplane communication speed, causing intermittent disconnections from the AC800M PLC.
  • Cybersecurity Implementation: Enable 802.1X and SSL/TLS during initial setup—unsecured communication exposes the ABB DCS to external threats; use ABB’s cybersecurity checklist to verify settings (e.g., strong passwords, certificate management).
• Operation & Maintenance:
  • Firmware Updates: Schedule regular firmware updates via USB Type-C or 800xA Engineering Suite—outdated firmware may have protocol compatibility issues (e.g., with new PROFINET devices) or security vulnerabilities. Always backup configurations before updating.
  • Diagnostic Monitoring: Continuously monitor module status via 800xA System Diagnostics—alerts for high error rates (＞1% packet loss) or link degradation indicate network issues (e.g., cable damage, switch faults) that require immediate attention.
  • Redundancy Testing: Perform quarterly failover tests (simulate power/network loss) to verify redundancy functionality—undetected redundancy failures can lead to unexpected downtime during actual faults.
• Environmental Limitations:
  • Temperature Range: Do not operate above +60℃ or below -5℃—high temperatures (＞60℃) cause thermal throttling, increasing latency; low temperatures (＜-5℃) affect backplane communication. Ensure proper ventilation in control cabinets (airflow ≥0.5m/s).
  • Humidity & Altitude: Avoid operation above 95% RH (condensing) or 2000m altitude—moisture ingress damages internal circuits; high altitude (＞2000m) reduces heat dissipation, requiring derated operating temperatures (≤50℃).
• Replacement & Spare Parts:
  • Genuine ABB Modules: Use only genuine ABB CI856K01 (3BSE020655R1) modules—non-genuine alternatives lack ABB’s protocol validation and redundancy features, leading to communication failures and potential safety risks in hybrid systems.
  • Redundant Spare Strategy: Maintain 1 spare module for every 5 operational units—interface module failures disrupt third-party integration, and lead times for replacements can exceed 4 weeks; spares reduce downtime to ＜1 hour for critical systems
•
•

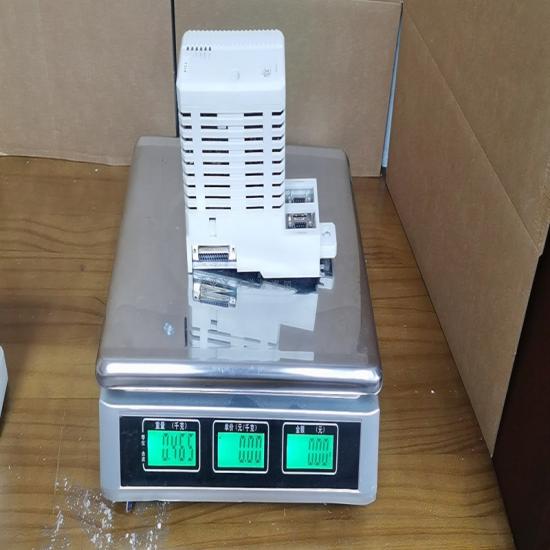

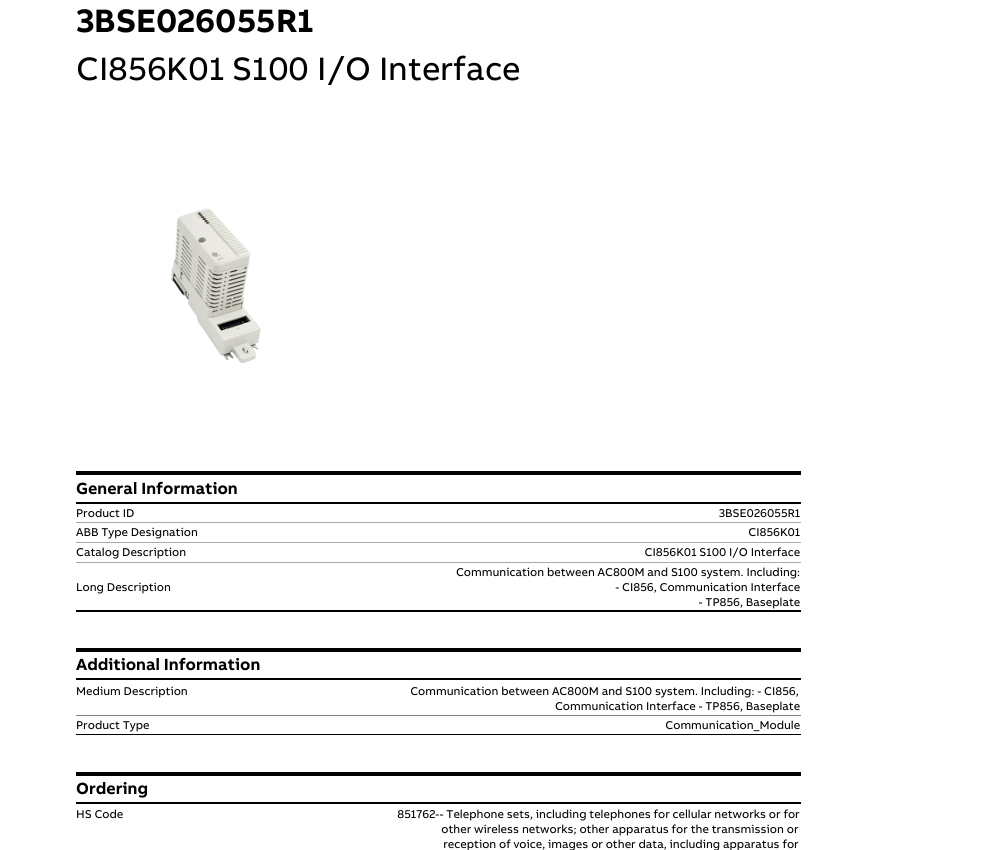

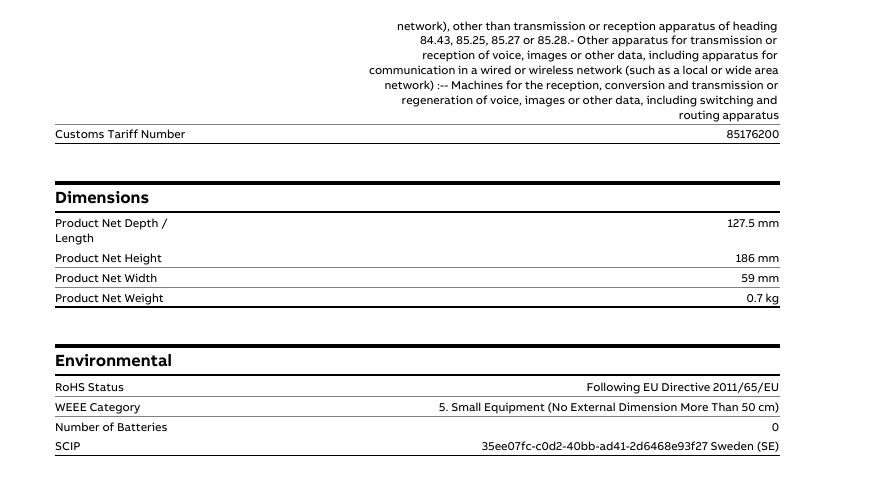

The structure and details of the product：
