ABB CI830 Profibus communication interface

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB CI830 Profibus communication interface.

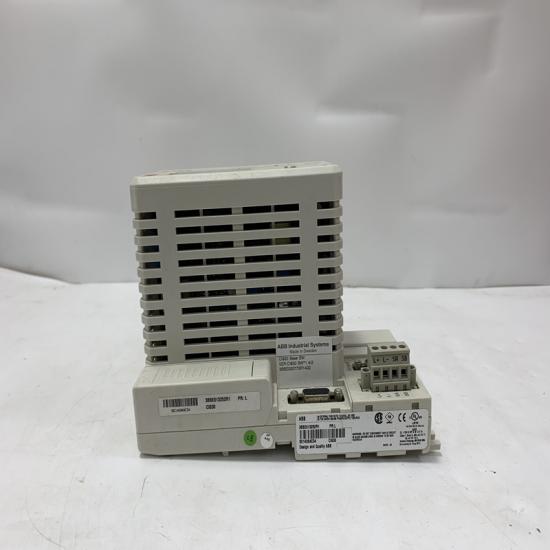

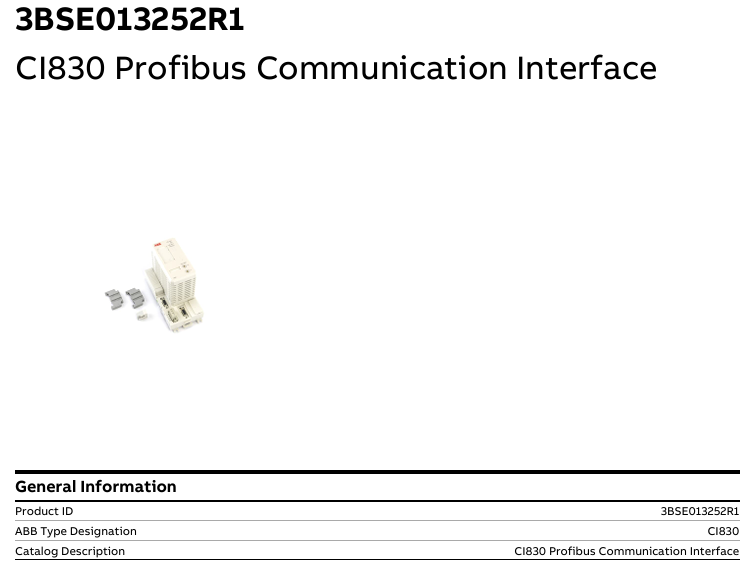

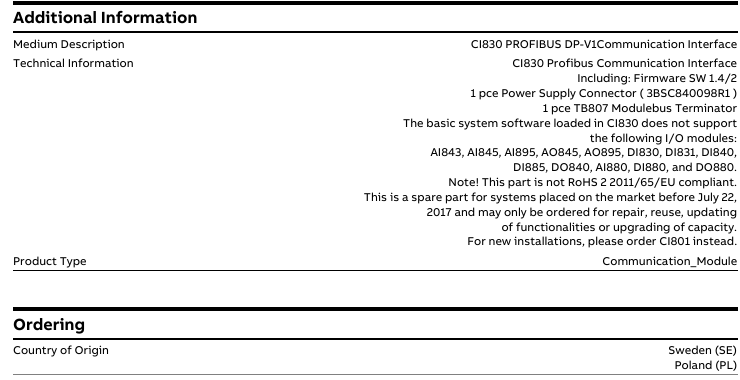

The ABB CI830 (3BSE013252R1) is a PROFIBUS DP communication interface module designed for industrial automation systems. It serves as a critical link between ABB control systems and PROFIBUS DP networks, enabling reliable data exchange in demanding industrial environments .

Technical Specifications

General Parameters

• Brand: ABB

• Model: CI830 (3BSE013252R1)

• Type: PROFIBUS DP communication interface module

• Protocol Support: PROFIBUS DP V1

• Transmission Rate: Up to 12 Mbps

• Max Stations: Supports connection of up to 126 PROFIBUS DP slaves

• Interface Type: RS485 (9-pin D-Sub connector)

• Electrical Isolation: 500V AC test voltage

• Operating Temperature: -20°C to +70°C

• Dimensions: 125mm × 5mm × 260mm (H×W×D)

• Weight: 0.6kg

Electrical Characteristics

• Power Supply: 24VDC (typical)

• Power Consumption: 2.4W-2.8W (depending on communication scan cycle)

• Output Current: Max 20mA

• Output Voltage: 5V ±5%

• Overvoltage Protection: +7.5V/-5V

Key Features

1. High-Speed Communication: Supports PROFIBUS DP V1 protocol with transmission rates up to 12 Mbps for real-time industrial communication .

2. Flexible Integration: Works seamlessly with ABB control systems including AC800M controllers and S800 I/O systems .

3. Redundancy Support: Can be configured for redundant operation when used with redundant field controllers, enhancing system reliability .

4. Easy Configuration: Uses CBF software for setup and parameter configuration without requiring additional programming software .

5. Status Monitoring: Features LED indicators for clear visual feedback of module status and communication conditions .

6. Hot-swappable: Modules can be replaced during operation without shutting down the system .

Application Fields

1. Process Industries: Oil refineries, chemical plants for process control communication .

2. Manufacturing Automation: Production line control systems in automotive and electronics manufacturing .

3. Power Systems: Energy management and distribution networks .

4. Water Treatment: Automation of filtration and pumping systems .

5. Building Automation: Integration with HVAC and other facility management systems .

System Integration

The CI830 module is designed to work with:

• ABB AC800M controllers

• S800 I/O systems

• Various PROFIBUS DP compatible devices including sensors, actuators, and drives

Installation and Operation Notes

1. Network Configuration: Properly configure PROFIBUS DP network parameters including baud rate and station addresses .

2. Wiring Practices:

   • Use shielded twisted-pair cables for PROFIBUS connections

   • Maintain proper termination at both ends of the PROFIBUS segment

   • Ensure correct polarity for RS485 connections

3. Environmental Conditions: Install in locations within specified temperature ranges and avoid excessive vibration .

4. Maintenance:

   • Periodically check cable connections

   • Monitor module status indicators

   • Verify network communication quality

5. Safety: Only trained personnel should install, operate or maintain the module .
