ABB CI541V1 3BSE014666R1 Profibus interface module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB CI541V1 (3BSE014666R1) Profibus Interface Module – Product Information

1. Product Overview

The ABB CI541V1 (Part No. 3BSE014666R1) is a Profibus-DP interface module designed for the ABB AC 800M control system.
It provides reliable and high-speed communication between the controller and distributed I/O devices via the Profibus-DP fieldbus network, offering excellent integration for process automation and industrial control systems.

2. Technical Specifications

• Model: CI541V1

• Part Number: 3BSE014666R1

• Function: Profibus-DP Communication Interface

• Protocol: Profibus-DP (EN 50170 compliant)

• Baud Rate: 9.6 kbit/s to 12 Mbit/s (auto detection)

• Max Stations: Up to 125 (including master and slaves)

• Interface: RS-485, shielded twisted pair

• Connector: 9-pin D-sub (female)

• Address Setting: Via DIP switch or software configuration

• Supported Functions: Cyclic data exchange, diagnostics, auto baud rate detection

• Supply Voltage: 24 V DC (19.2–30 V DC)

• Power Consumption: Approx. 3 W

• Operating Temperature: 0 ℃ to +55 ℃

• Storage Temperature: -40 ℃ to +70 ℃

• Humidity: Up to 95% non-condensing

• Mounting: DIN rail or modular slot installation

• Protection Class: IP20

• Weight: Approx. 0.2 kg

• Compatible Systems: ABB AC 800M (PM851, PM856, PM860, etc.)

• Certifications: CE, RoHS, IEC 61158, EN 50170

3. Features and Advantages

1. Wide compatibility – Seamless integration with various Profibus devices.

2. High-speed communication – Up to 12 Mbit/s for real-time data exchange.

3. Robust reliability – Industrial-grade design for harsh environments.

4. Comprehensive diagnostics – Built-in status and error detection functions.

5. Modular integration – Easily connects with ABB AC 800M control modules.

6. Easy configuration – Configurable via ABB Control Builder software.

7. Low power and stable operation – 24V DC supply ensures energy efficiency.

4. Application Areas

• Industrial automation and process control

• Power generation and energy management

• Chemical and petrochemical plants

• Metallurgy and mining control systems

• Water and wastewater treatment

• Paper, pharmaceutical, and food processing industries

• Smart manufacturing and digital factory networks

5. Precautions

1. Installation and wiring should be performed by qualified personnel.

2. Use Profibus-compliant shielded cables to minimize interference.

3. Ensure proper grounding and shielding of communication lines.

4. Maintain correct bus length and termination according to Profibus standards.

5. Periodically inspect bus connections and diagnostic indicators.

6. Avoid excessive humidity, vibration, or temperature during operation.

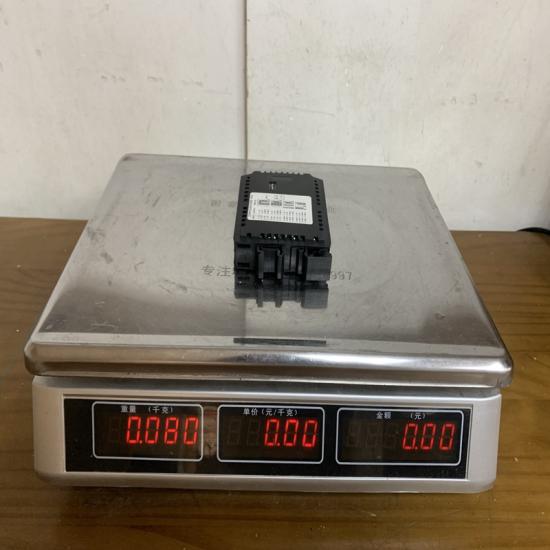

The structure and details of the product：
