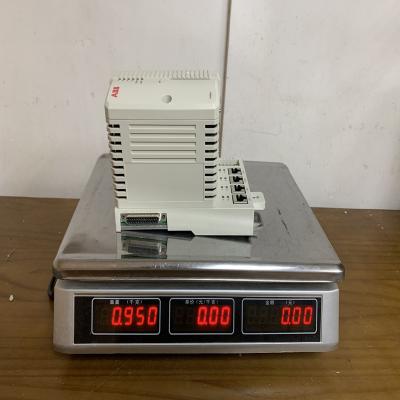

ABB BFPS-48C Power Supply Board

Product Information: ABB BFPS-48C Power Supply Board

Detailed Specifications:

• Model: BFPS-48C

• Input Voltage: 85-264 V AC

• Output Voltage: 48 V DC

• Output Power: 240 W

• Output Current: 5 A

• Frequency Range: 47-63 Hz

• Efficiency: ≥ 90%

• Operating Temperature Range: -20°C to +70°C

• Storage Temperature Range: -40°C to +85°C

• Protection Functions: Overvoltage protection, overcurrent protection, short-circuit protection, over-temperature protection

• Ingress Protection: IP20 (for indoor use only)

• Dimensions: 150 x 100 x 40 mm

• Weight: 0.45 kg

• Certifications: CE, UL

Product Advantages and Features:

1. High Efficiency Design: The BFPS-48C power supply board uses an efficient switch-mode power design, with high output power and efficiency above 90%, effectively reducing energy loss.

2. Wide Input Voltage Range: Supports an input voltage range of 85-264V AC, making it suitable for different power grid environments worldwide.

3. Multiple Protection Features: Equipped with overvoltage, overcurrent, short-circuit, and over-temperature protections, ensuring reliability and safety under extreme operating conditions.

4. High-Temperature Durability: Capable of stable operation within a temperature range of -20°C to +70°C, suitable for various harsh industrial environments.

5. Compact Design: The small size (150x100x40 mm) makes it easy to install and space-saving, meeting the power supply needs of various equipment.

6. Reliable Certification: The product has CE and UL certifications, ensuring it meets international safety and quality standards.

Applications:

• Industrial Automation: Widely used in industrial automation equipment, providing stable power to ensure continuous system operation.

• Power Control Systems: Suitable for power equipment, substations, and other power control systems, ensuring reliable power supply.

• Telecommunication Equipment: Used for power supply in communication equipment such as switches and routers, providing stable energy for data transmission.

• Medical Devices: Provides high reliability power to medical devices, ensuring normal operation during critical moments.

• Transportation Systems: Applied in rail and road traffic monitoring systems, providing power support to ensure system stability.

Precautions:



1. Installation Requirements: Ensure correct grounding during installation and follow the product manual for proper installation to avoid incorrect power connections.

2. Environmental Adaptability: This power supply board is suitable for industrial environments but should be protected from high humidity, corrosive gases, and extreme temperature fluctuations.

3. Regular Inspection: Periodically check the power supply board to ensure no protection functions have been triggered due to overcurrent or over-temperature conditions.

4. Maintenance and Cleaning: Keep the power supply board clean, avoiding dust, oil, and debris from entering the interior, which may affect its efficiency.

5. Usage Guidelines: Ensure the output voltage and current do not exceed the rated values to prevent overload and damage to the equipment.
