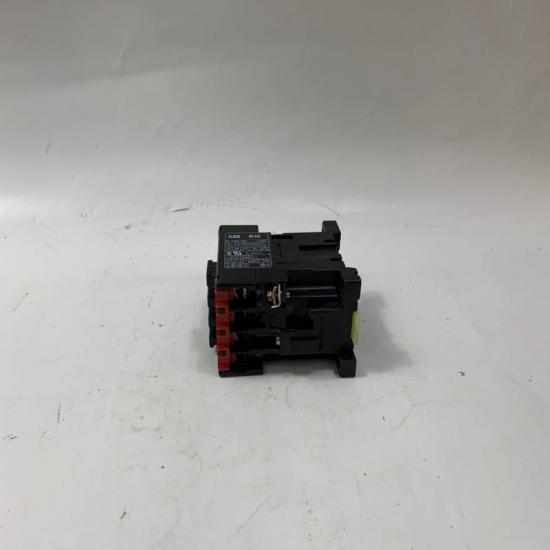

ABB B16-30-01 110-127V 50/60Hz Contactor

Product Description

The ABB B16-30-01 is an AC contactor designed for controlling motor starters, stopping, and reversing in industrial and commercial applications. It operates at 110-127V 50/60Hz and is part of ABB’s A-series contactors, known for high reliability, long service life, and low power consumption.

Featuring a double-break direct-acting mechanism, this contactor supports modular accessories like auxiliary contacts and timers for flexible system integration.

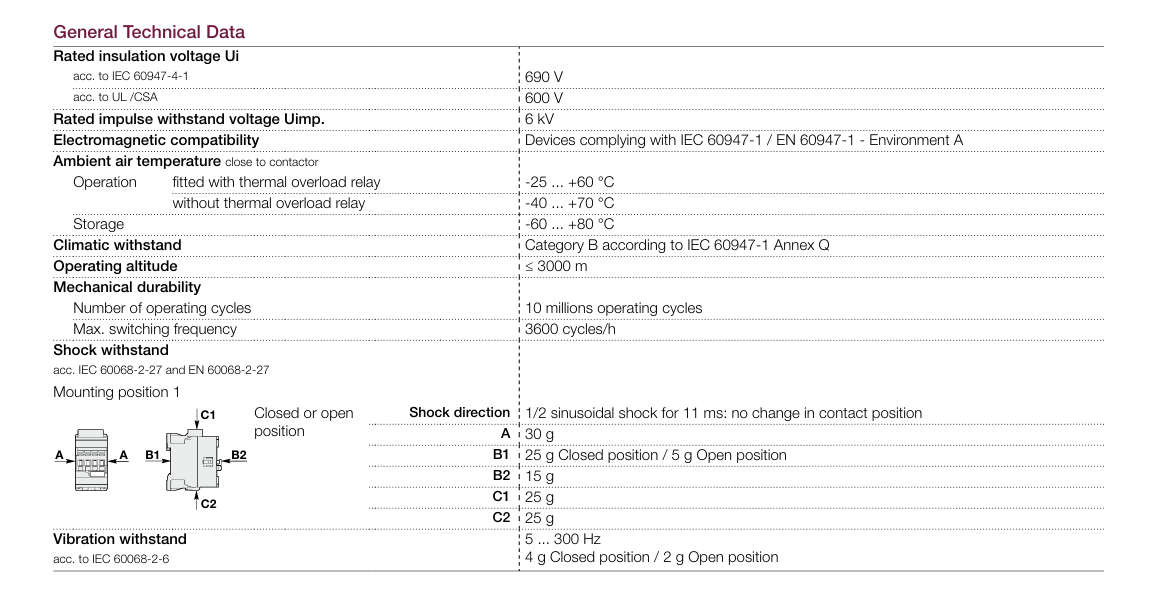

Technical Specifications

• Model: B16-30-01

• Rated Operational Voltage: 110-127V AC (50/60Hz)

• Rated Insulation Voltage: 690-1000V

• Rated Current (AC-3): 16A (at 380V)

• Motor Power Control: 7.5kW (at 380V)

• Main Contacts: 3 poles (normally open)

• Auxiliary Contacts: 1 normally closed (denoted by "01")

• Mechanical Endurance: 10 million operations

• Electrical Endurance: 450,000 operations (AC-3 load)

• Arc Extinguishing: Enclosed arc chamber (U-shaped arc chutes for A26+ models)

• Protection Rating: IP20

• Mounting: Screw fixation or DIN rail

• Operating Temperature: -25°C to +55°C

Key Features & Advantages

1. Energy-Efficient: Low holding power consumption (up to 50% savings).

2. Voltage Stability: Wide-voltage coil design ensures reliable operation under fluctuations.

3. Long Lifespan: Silver-alloy contacts resist electrical wear; 10M mechanical cycles.

4. Modularity: Compatible with auxiliary contacts, timers, and other accessories.

5. Safety: Zero arc distance design minimizes arc hazards.

6. AC/DC Versatility: Some models support both AC and DC coils.

Applications

• Industrial Automation: Conveyors, compressors, CNC machines

• Building Systems: HVAC, pumps, lighting control

• Machinery: Packaging, agricultural equipment

• Energy Management: Power distribution, generators

Usage Precautions

1. Installation Environment: Avoid dust/moisture; pollution degree ≤3.

2. Wiring:

   • Main circuit: Line terminals (1L1, 3L2, 5L3)

   • Load terminals (2T1, 4T2, 6T3)

   • Coil terminals: A1 (+), A2 (-)

3. Maintenance: Regularly inspect contacts for wear and clean oxidation.

4. Voltage Match: Ensure control supply matches rated voltage (110-127V 50/60Hz).

5. Avoid Overload: Use within AC-3 ratings; limit frequent high-inductive switching.

The structure and details of the product：
