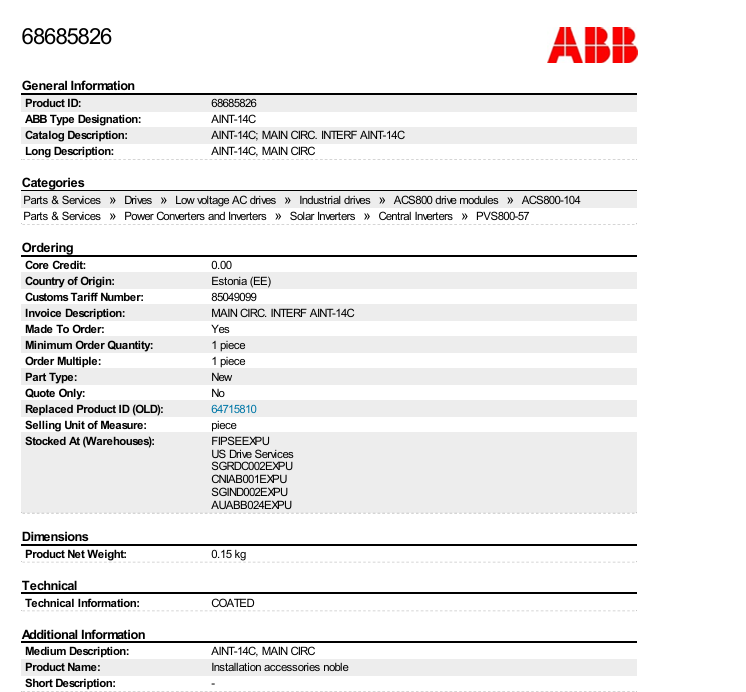

ABB AINT-14C 68685826 ACS800 series MCIN interface board

The ABB AINT-14C 68685826 ACS800 series MCIN interface board is a high-performance interface module specifically designed for the ACS800 series frequency converters. As a communication hub between the frequency converter and external systems, it enables precise data transmission and efficient signal interaction. With its advanced technical architecture and reliable industrial-grade quality, it is widely used in industrial automation, power drive, fan and pump control, and other fields, helping enterprises optimize equipment operation efficiency and enhance overall system stability.

Product Specifications

Series Affiliation: It belongs to the accessories of ABB ACS800 series frequency converters. The ACS800 series is renowned for its high energy efficiency, reliability, and flexible control, and is a benchmark product series in the field of industrial drives.

Communication Functions: It supports multiple communication protocols, including PROFIBUS DP, DeviceNet, etc., enabling seamless connection with PLCs, DCS systems, and other intelligent devices. The maximum transmission rate reaches 12Mbit/s, ensuring fast and stable data transmission. It also has the ability to process analog and digital signals, accurately collecting and outputting key parameters such as voltage, current, and frequency.

Interface Configuration: Equipped with 4 analog input channels, 2 analog output channels, 8 digital input channels, and 6 digital output channels, it can flexibly connect various sensors, actuators, and control devices. All interfaces adopt electrical isolation design, effectively resisting electromagnetic interference and ensuring the accuracy and stability of signal transmission.

Compatibility: Custom-developed for the ACS800 series frequency converters, it perfectly adapts to frequency converters of different power ratings. It supports plug-and-play functionality, greatly simplifying the installation and commissioning process and reducing the difficulty of engineering implementation.

Diagnosis and Protection: It has a built-in intelligent diagnostic system that can monitor the operating status of the interface board and the quality of the communication link in real time. When a fault occurs, it quickly locates the problem through LED indicators and diagnostic codes. It also has multiple protection functions such as overvoltage, overcurrent, and short-circuit protection, effectively enhancing the reliability of equipment operation.

Product Attributes

Physical Dimensions: [Length]150mm×[Width]100mm×[Height]50mm. With a compact modular design, it is easy to install inside the frequency converter cabinet, saving space and adapting to various industrial control cabinet layouts.

Weight: Approximately 0.8kg. The lightweight does not affect the overall installation and handling of the equipment, while ensuring the stability of the interface board during operation.

Environmental Adaptability: The operating temperature range is -20°C to +50°C, allowing it to operate stably in most industrial environments. The storage temperature range is -40°C to +70°C, ensuring product reliability during transportation and storage. With an IP20 protection rating, it can effectively prevent dust and is suitable for conventional industrial field environments.

Certification Standards: It has passed international authoritative certifications such as CE and UL. Manufactured in strict accordance with international safety, electromagnetic compatibility, and other standards, the product quality and safety are globally recognized, and it can be widely applied to industrial projects around the world.
The structure and details of the product：
