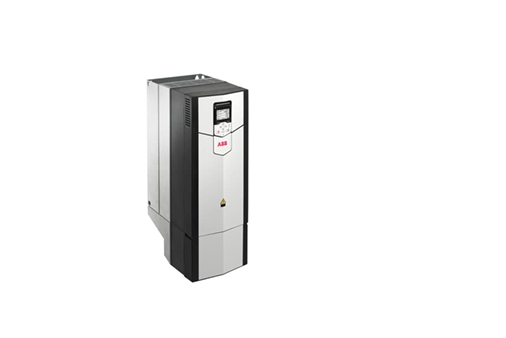

ABB ACS880-01-145A-3 AC Drive

Product Overview

The ABB ACS880-01-145A-3 is a high-performance AC drive (Variable Frequency Drive, VFD) from the ACS880 series, designed for precise speed, torque, and position control of three-phase AC motors. The drive features advanced vector control, energy-saving operation, motor and system protection, multiple communication interfaces, and self-diagnostic capabilities, making it suitable for industrial automation, pumps, fans, compressors, and production line applications.

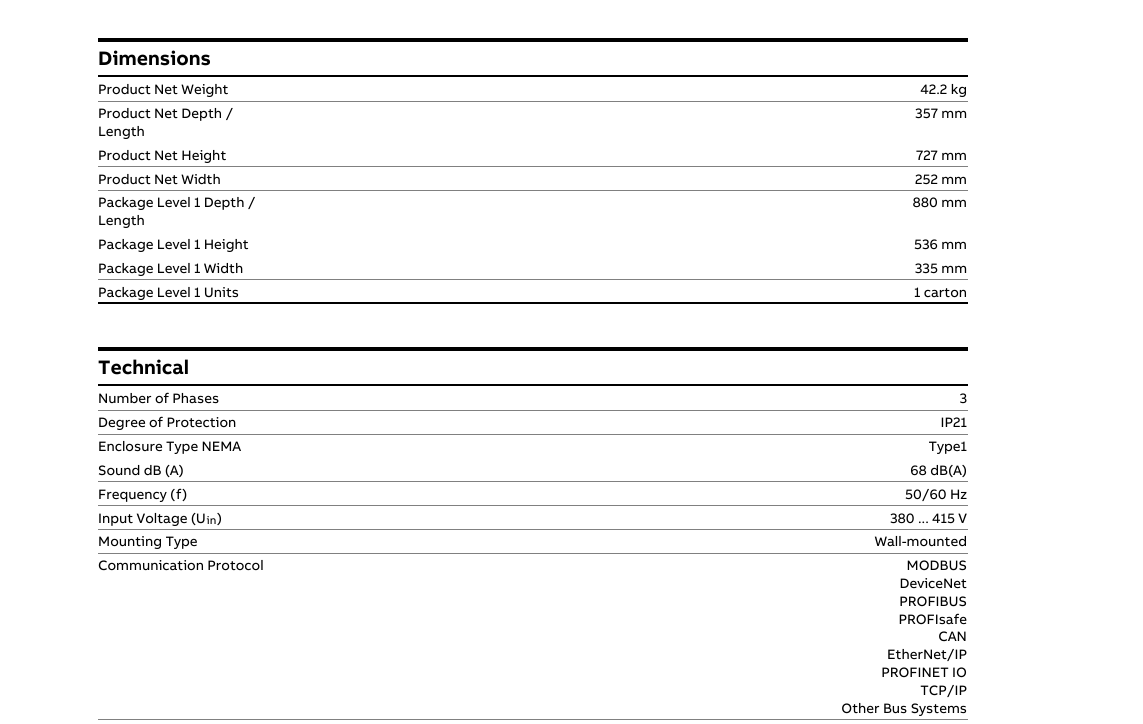

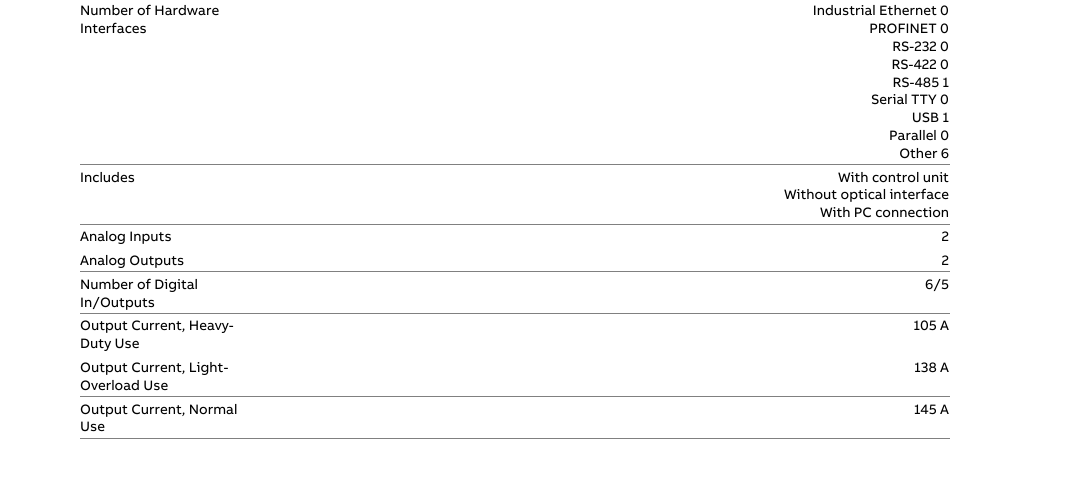

Technical Specifications

• Model: ACS880-01-145A-3

• Product Type: AC Drive / Variable Frequency Drive (VFD)

• Rated Output Current: 145 A

• Rated Voltage: 3-phase 380…480 V AC

• Rated Power: Approx. 90 kW (depends on voltage and application)

• Input Supply: 3-phase AC 380…480 V, 50/60 Hz

• Control Method: Field-Oriented Vector Control (FOC)

• Speed Range: Wide-range stepless control

• Overload Capacity: 150% for 1 minute

• Protection Functions: Overcurrent, overvoltage, undervoltage, overheating, short circuit, underload

• Ambient Temperature: -10 °C … +50 °C (no derating)

• Mounting: Wall-mounted or cabinet-mounted

• Protection Degree: IP21 or IP55 (configuration dependent)

• Communication Interfaces:

  • Modbus RTU, PROFIBUS, EtherNet/IP, DeviceNet (optional)

• Features: Energy saving, regenerative braking, process optimization, fault diagnostics

Advantages and Features

1. High-Performance Vector Control
   Precise control of motor speed and torque enhances process accuracy and efficiency.

2. Energy Efficiency
   Automatic energy-saving mode and regenerative braking reduce energy consumption and operating costs.

3. Comprehensive Protection
   Built-in overload, overvoltage, undervoltage, overheating, and short-circuit protection improves system reliability.

4. Multiple Communication Protocols
   Facilitates seamless integration with PLC, DCS, and industrial automation systems.

5. Intelligent Diagnostics and Easy Maintenance
   Supports fault logging and remote monitoring to minimize downtime.

6. Industrial Environment Compatibility
   Wide temperature range and strong interference immunity ensure reliable operation under harsh conditions.

Typical Applications

• Industrial automation production lines

• Pump, fan, and compressor control

• Hoisting and conveyor systems

• Chemical, metallurgical, power, and mining equipment

• HVAC systems and infrastructure projects

Precautions

1. Verify that the supply voltage, rated current, and motor power match the drive specifications before installation.

2. Ensure proper grounding in accordance with electrical safety standards.

3. Avoid installation in areas with strong vibration, high temperature, high humidity, or corrosive gases.

4. Configure control parameters and protection settings according to the load type before operation.

5. Regularly inspect cooling channels and fans to ensure long-term reliable operation.

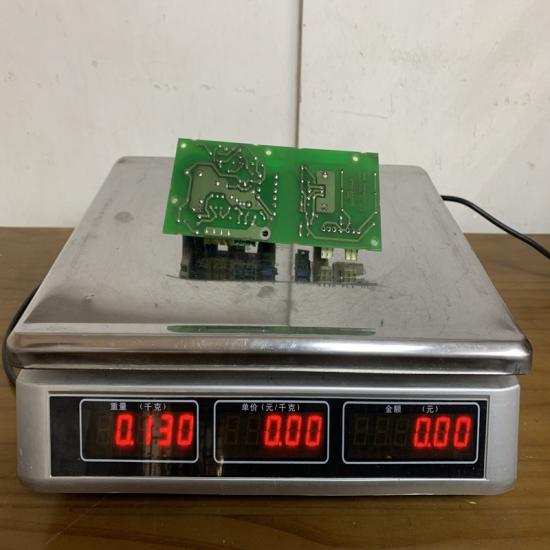

The structure and details of the product：
