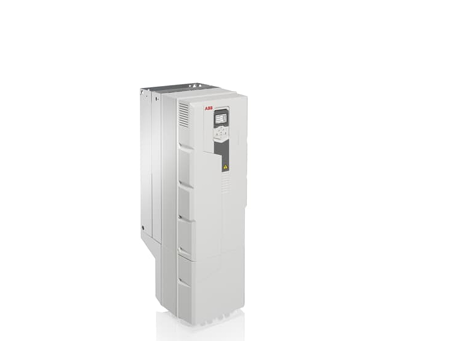

ABB ACS580-01-246A-4 AC General Purpose Wall-Mounted Drive

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

Product Overview

The ABB ACS580‑01‑246A‑4 is a low-voltage AC general purpose wall-mounted drive designed to control the speed, torque, and operational status of three-phase asynchronous motors. It integrates multiple control, protection, and energy optimization functions, suitable for pumps, fans, conveyors, compressors, and industrial machinery automation. The drive is compact, easy to install, commission, and maintain.

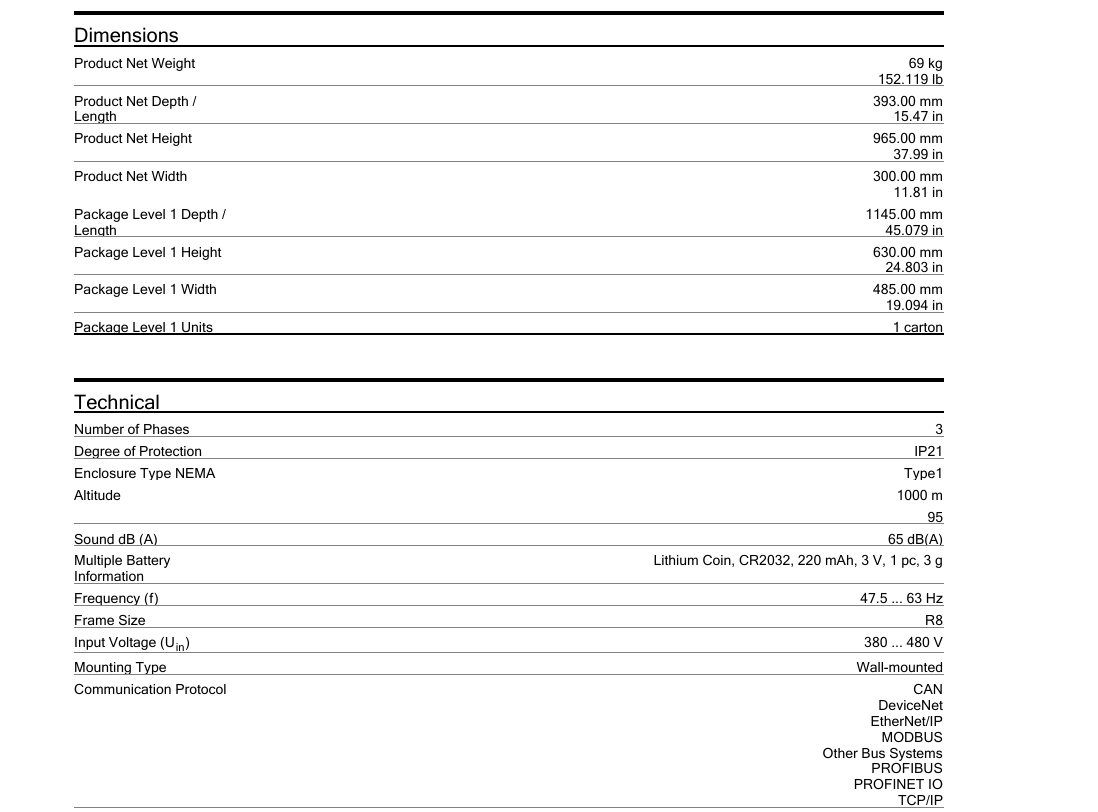

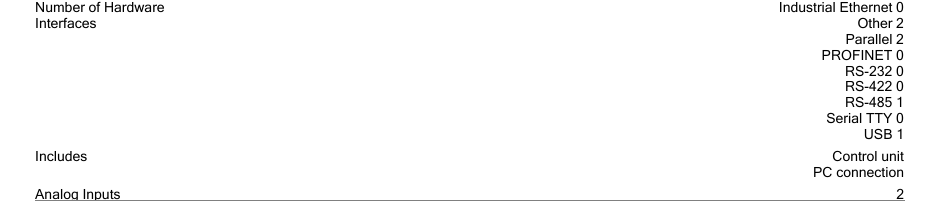

Technical Specifications

• Model: ACS580‑01‑246A‑4

• Type: Low-voltage AC general purpose wall-mounted drive

• Rated Power: approx. 132 kW

• Rated Output Current: 246 A (continuous)

• Maximum Output Current: ~350 A (short-term start)

• Input Voltage: AC 380–480 V, 3-phase

• Output Frequency Range: 0–600 Hz

• Control Modes: V/f control, basic vector control

• Protection Rating: IP21

• Mounting: Wall-mounted

• Dimensions: approx. 965 mm × 300 mm × 393 mm

• Weight: approx. 69–77 kg (varies by version)

• Built-in Features:

  • Safe Torque Off (STO)

  • Fault diagnostics

  • PID control

  • Energy optimization

  • Fieldbus support (optional Modbus RTU)

• Operating Temperature: -10 °C … +50 °C

• Certifications: CE, UL

Advantages and Features

1. High-Performance Motor Control
   Provides smooth start-up and operation for pumps, fans, conveyors, and other loads.

2. Integrated Functions
   Built-in protection, energy optimization, and diagnostics eliminate the need for external devices.

3. Easy Installation and Commissioning
   Compact wall-mounted design with an intuitive interface for fast setup.

4. Energy Efficient
   Built-in algorithms reduce power consumption and improve overall efficiency.

5. Industrial Reliability
   Durable design with EMC filtering ensures stable operation in industrial environments.

Typical Applications

• Industrial automation and production lines

• Pump, fan, and compressor drives

• Conveyor and material handling systems

• HVAC system motor control

• Industrial machinery control (light industry, food & beverage, textile, agriculture)

• Energy efficiency and remote monitoring applications

Precautions

1. Power Supply Matching
   Ensure input voltage matches the drive’s rated voltage to prevent damage.

2. Adequate Ventilation
   Maintain sufficient airflow around the drive to avoid overheating.

3. Proper Grounding
   Follow grounding instructions to ensure safety of personnel and equipment.

4. Load Matching
   Match motor ratings to the drive to prevent overload conditions.

5. Regular Maintenance
   Inspect cooling fans, terminal connections, and communication interfaces to maintain reliable long-term operation.
